JGC9430BDF14 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGC9430BDF14 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

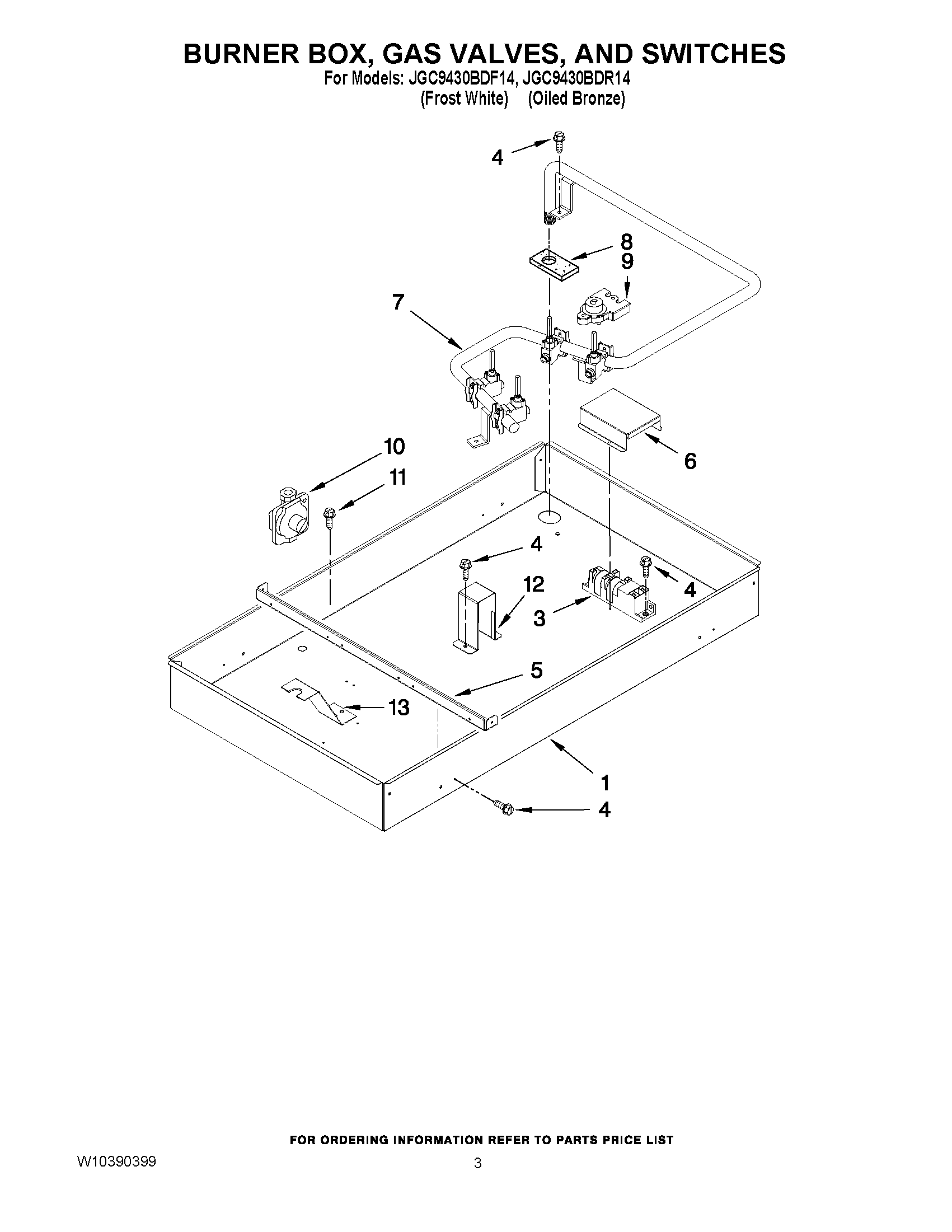

JGC9430BDF14 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY 4011F526-51
3MAY 7431P038-60
4MAY 7101P426- 60
5BRACKET, DOWNDRAFT BRACE
6MAY 4005F816-51
7MAY 7513P305-60
8MAY 7208P024-60
9MAY 7403P818-60
9MAY 7403P820-60
10MAY 7510P093-60
11Screw, Ground
12MAY 3807F689-51
13MAY W10190601
