JGC9430BDR 01 – BODY

JGC9430BDR 01 – BODY

Written by

in

JGC9430BDR 01 – BODY

Products

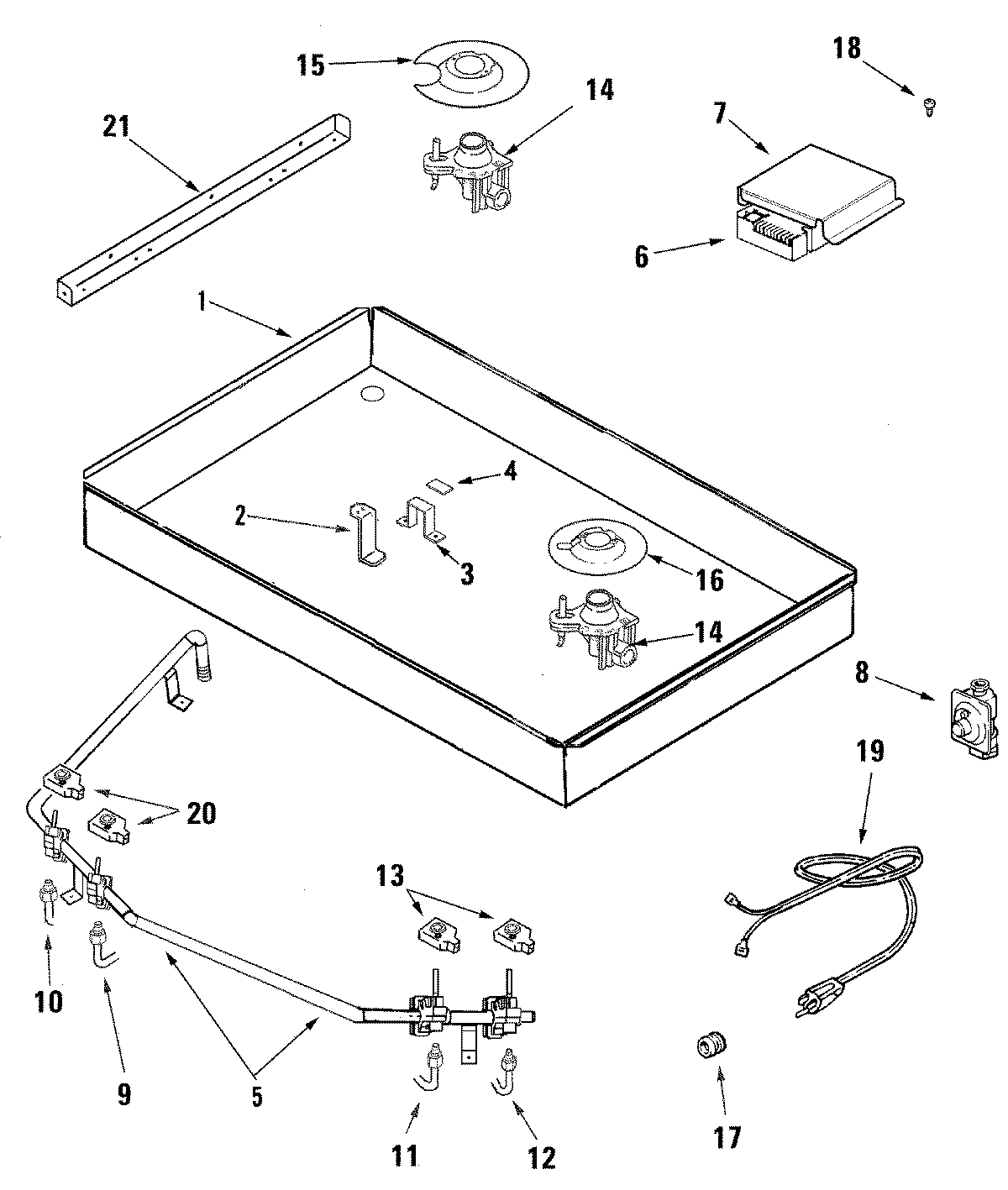

PositionProduct
1MAY W10207750
1MAY 74011451
2MAY 74007973
3MAY 74007968
4WP74005546 Whirlpool RU Spacer
5Pipe, Manifold
6WPW10475147 Whirlpool Spark Module
7COVER, SPARK MODULE
8W11087445 Whirlpool Pressure Regulator
9MAY 74007974
10MAY 74007975
11MAY 74007976
12MAY 74007977
13WP74007774 Whirlpool Switch Button
1474009553 Whirlpool Orifice Holder
14MAY 74007999
14WP7527P119-60 Whirlpool Orifice Holder
15MAY 74011125
16MAY 74011124
17MAY 550707
18WP90767 Whirlpool Screw
19MAY 74007817
20WP74007753 Whirlpool BU Switch
21MAY 74010767
21MAY W10188061
