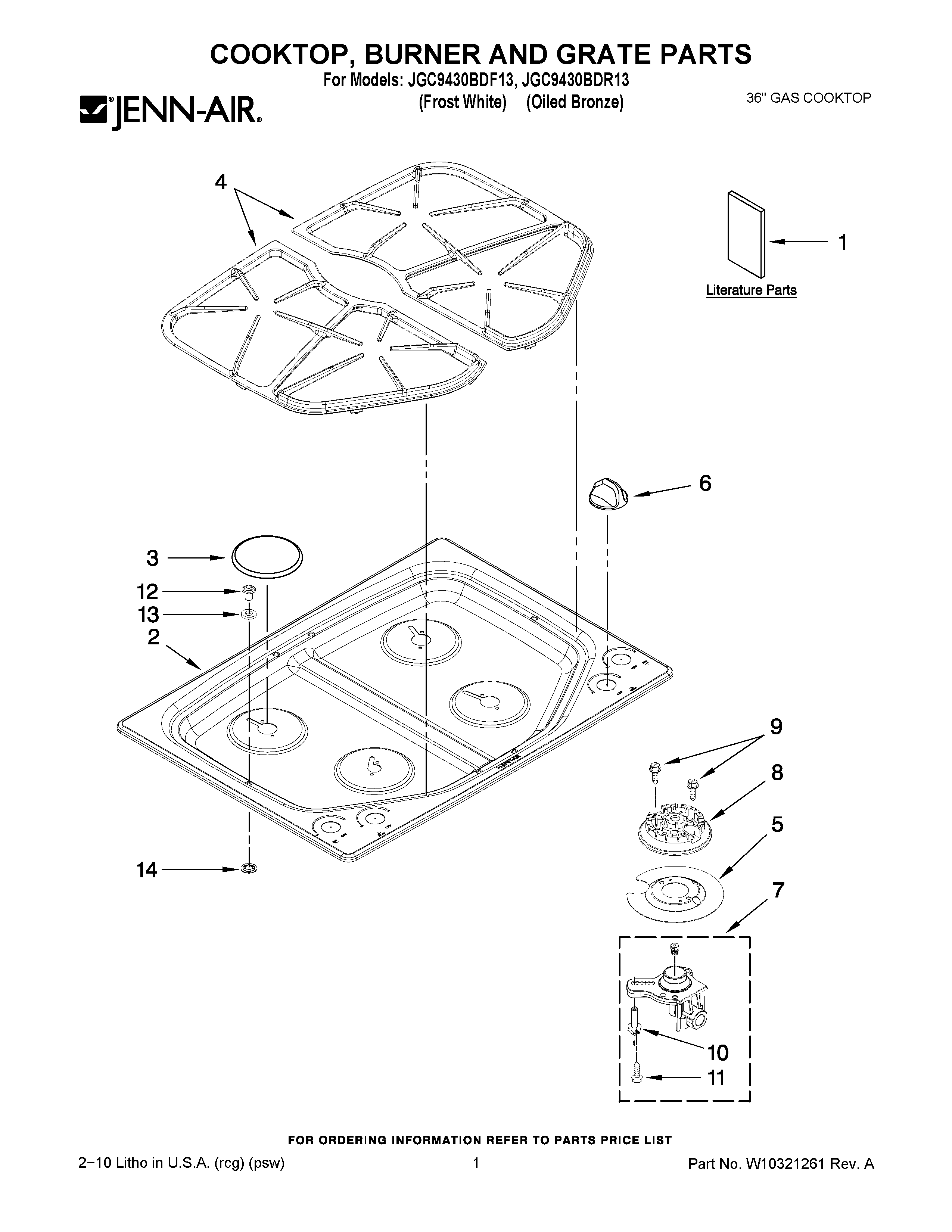

JGC9430BDR13 01 – COOKTOP, BURNER AND GRATE PARTS

JGC9430BDR13 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC9430BDR13 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8101P502-60
1MAY 8104P915-60
1MAY 8112P341-60
1TIPS, SAFE COOKING (FRENCH)
2COOKTOP (FROST WHITE)
2MAY 7920P214-60
3CAP, BURNER (LF & RR)
3CAP, BURNER (LR & RF)
3CAP, BURNER (CTR)
4GRATE (LEFT)
4GRATE (RIGHT)
5MAY 3605F335-51
5MAY 3605F334-51
6KNOB, CONTROL
7MAY 7527P029-60
7HOLDER, ORIFICE (LR (10.5K))
7MAY 7527P034-60
7HOLDER, ORIFICE (LF, RR)
8HEAD, BURNER (LR & RF)
8HEAD, BURNER (CTR)
8HEAD, BURNER (LF & RR)
9WP3368921 Whirlpool Screw
10IGNITOR
11MAY 7101P606-60
12MAY 8008P064-60
12MAY 8008P063-60
13MAY 7109P081-60
14MAY 7114P008-60
