JGC9430BDS 03 – TOP ASSEMBLY
Written by
in

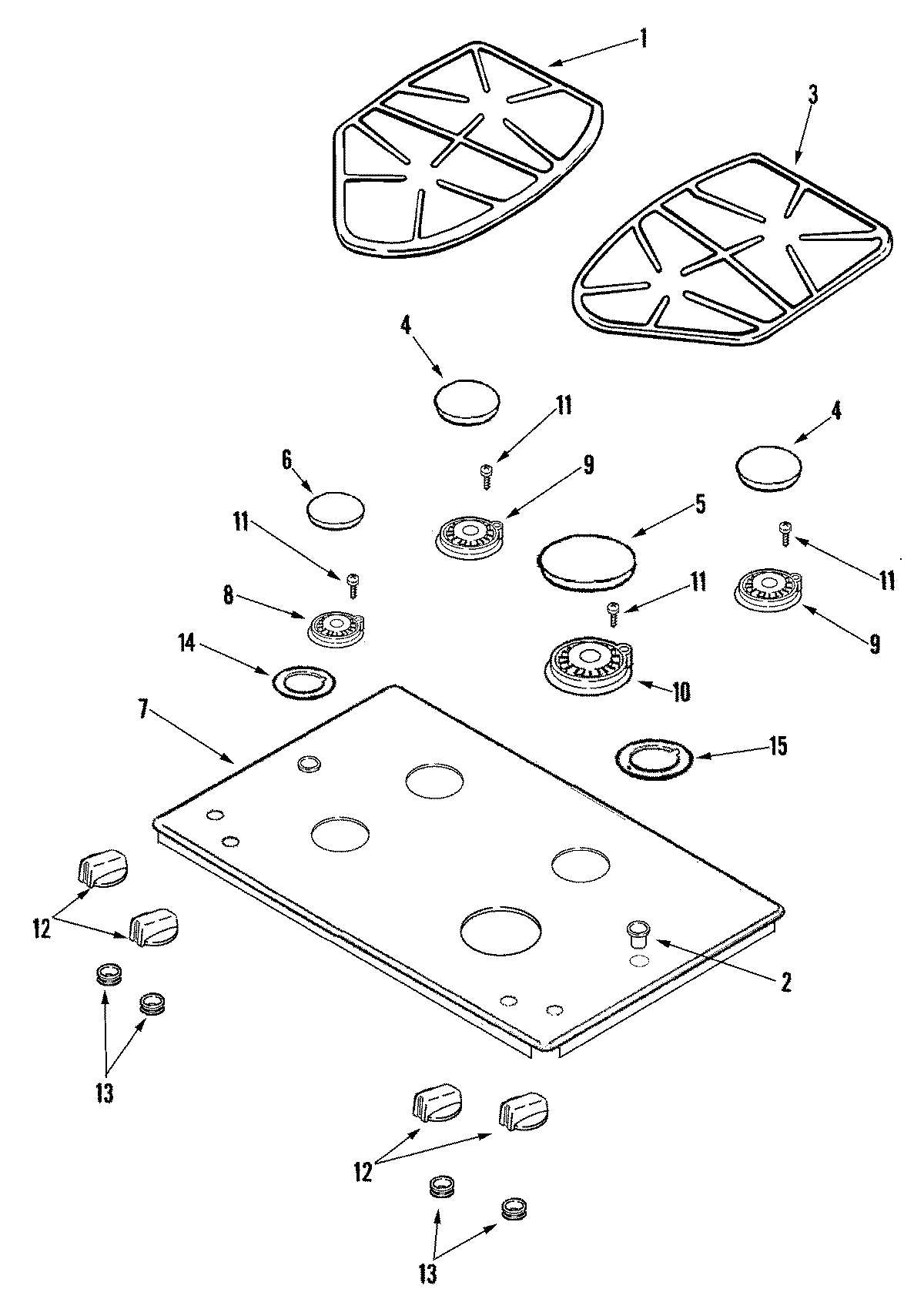

JGC9430BDS 03 – TOP ASSEMBLY
Products
Position
Product
1
GRATE (LEFT)
1
GRATE (BLK-RT)
2
MAY 74007981
2
MAY 74007982
3
GRATE (RIGHT)
4
Cap, Burner (12.5K RF, LR)
5
CAP, BURNER (EX-LRG/BLK)
6
WP8284669 Whirlpool Burner Cap
7
MAY 74008242
7
MAY 7920P176-60
8
74007734 Whirlpool Burner Assembly
9
74007735 Whirlpool Burner Assembly
10
74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10
WP74009336 Whirlpool Oven Top Igniter
11
WP3368921 Whirlpool Screw
12
MAY 7733P503-60
13
WP8008P071-60 Whirlpool Grommet
14
74010651 Whirlpool Oven Fiber Glass Gasket
15
WP74010652 Whirlpool Gasket
←
