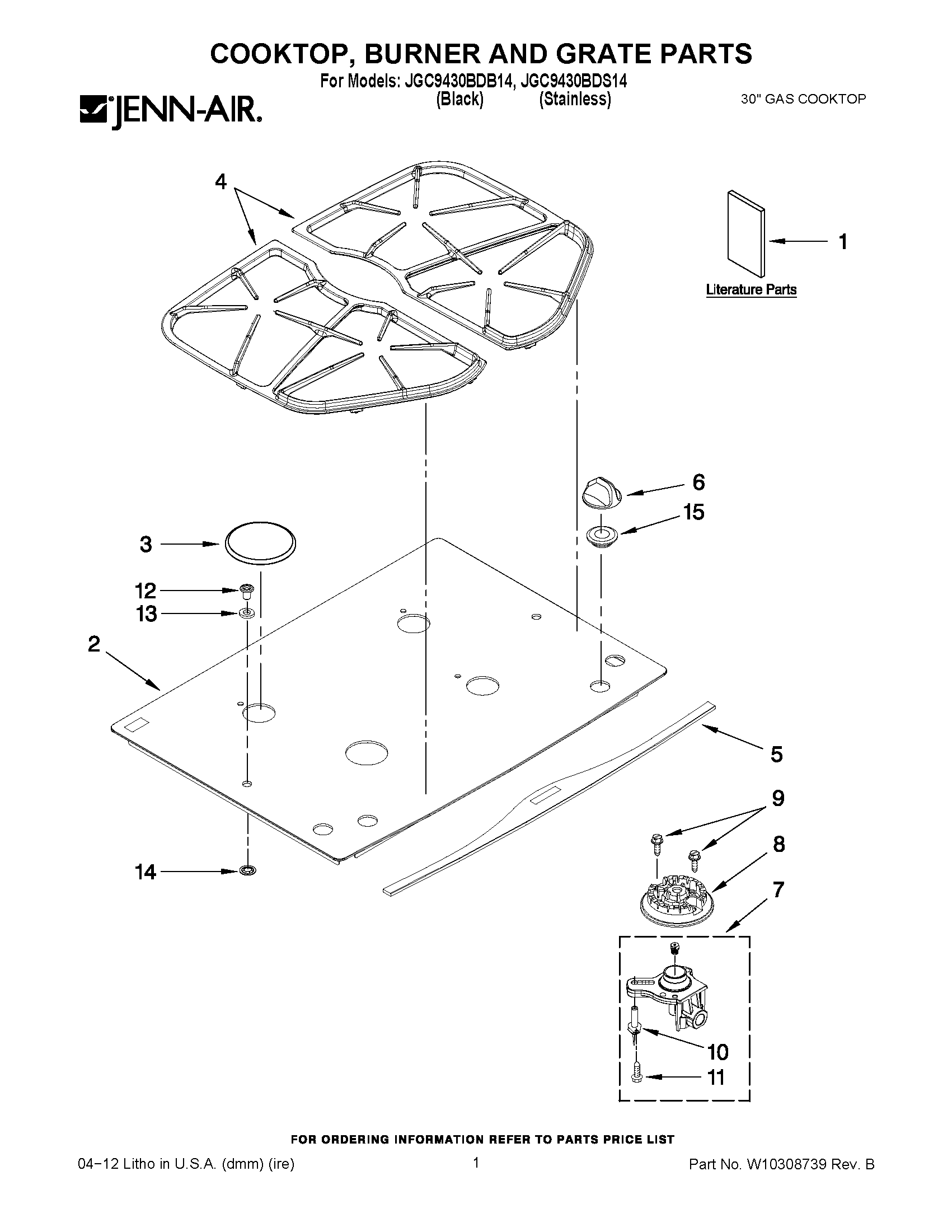

JGC9430BDS14 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10210794
1	MAY W10204447
1	MAY W10203804
1	TIPS, SAFE COOKING (FRENCH)
2	MAY W10305198
3	CAP, BURNER (LF & RR)
3	CAP, BURNER (CTR)
3	CAP, BURNER (LR & RF)
4	GRATE (RIGHT)
4	GRATE (LEFT)
5	MAY W10168877
5	TRIM,COOKTOP SS MODEL ONLY (REAR)
6	KNOB, CONTROL
7	MAY 7527P116-60
7	MAY 7527P117-60
7	MAY 7527P119-60
7	MAY 7527P118-60
8	HEAD, BURNER (CTR)
8	ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR)
8	HEAD, BURNER (LR & RF)
9	WP3368921 Whirlpool Screw
10	IGNITOR
11	MAY 7101P606-60
12	MAY 8008P064-60
13	MAY 7109P081-60
14	MAY 7114P008-60
15	MAY 8008P071-60
