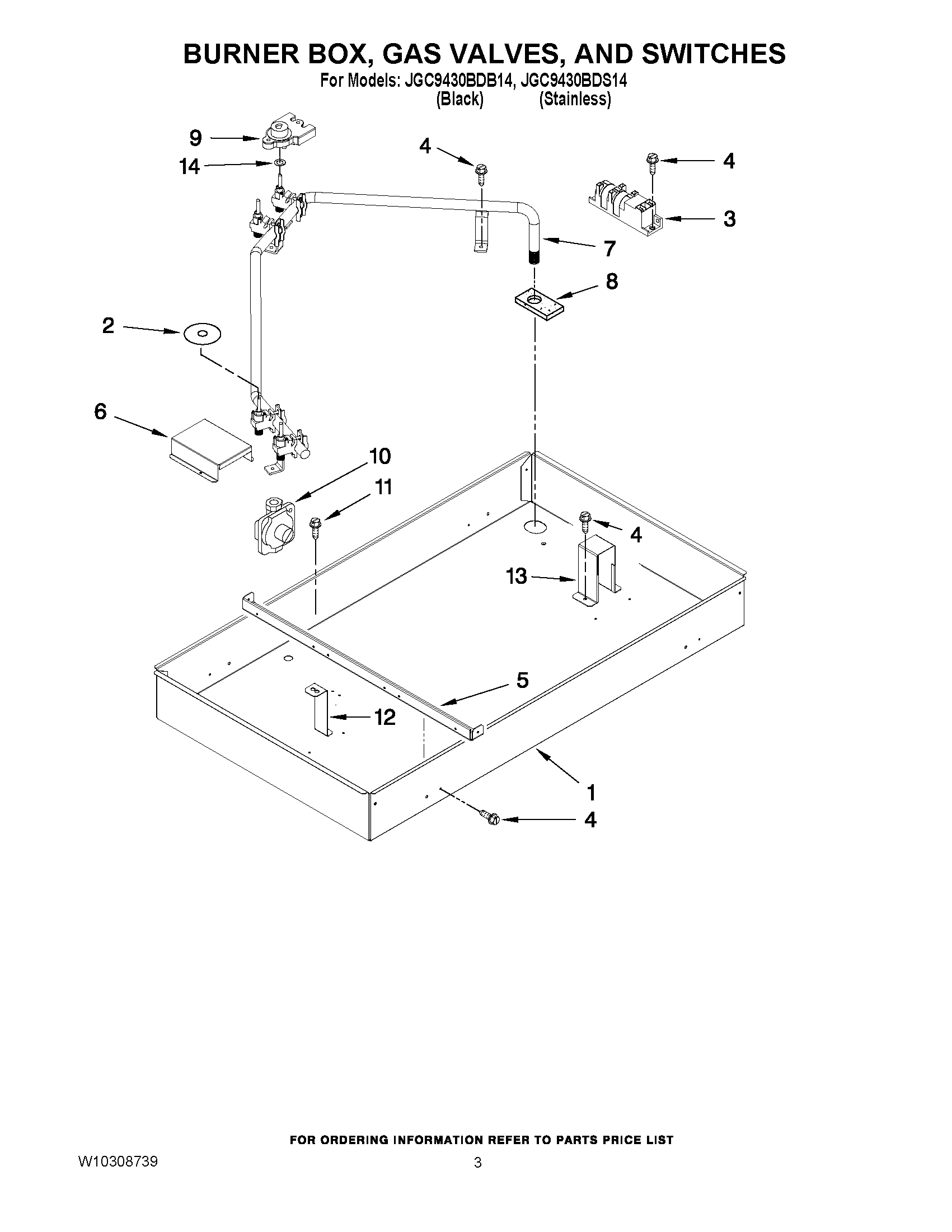

JGC9430BDS14 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGC9430BDS14 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGC9430BDS14 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
1MAY 4011F526-51
2MAY 7201P134-60
3MAY 7431P038-60
4MAY 7101P426- 60
5BRACKET, DOWNDRAFT BRACE
6MAY 4005F816-51
7MAY 7513P305-60
8MAY 7208P024-60
9MAY 7403P820-60
9MAY 7403P818-60
10MAY 7510P093-60
11Screw, Ground
12MAY W10190601
13MAY 3807F689-51
14MAY 7201P144-60
14MAY 7201P135-60
