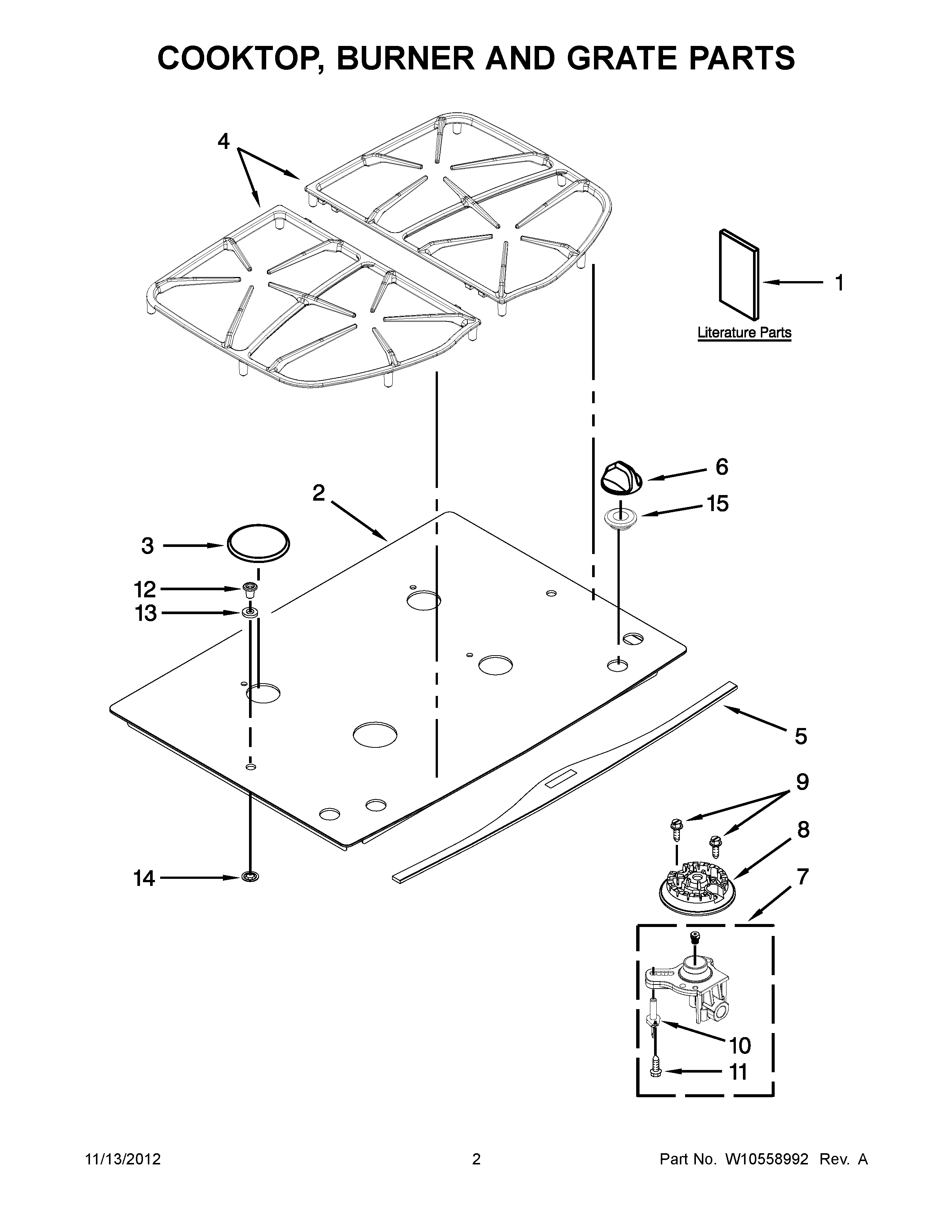

JGC9430BDS16 02 – COOKTOP, BURNER AND GRATE PARTS

JGC9430BDS16 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGC9430BDS16 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1CTIPS, SAFE COOKING (ENGLISH)
1BMAY W10210794
1AMAY W10204447
1MAY W10203804
1DTIPS, SAFE COOKING (FRENCH)
2AMAY W10204898
2MAY W10204896
3CAP, BURNER (LF & RR)
3ACAP, BURNER (LR & RF)
3BCAP, BURNER (CTR)
4GRATE (LEFT)
4AGRATE (RIGHT)
5MAY W10168877
5ATRIM,COOKTOP SS MODEL ONLY (REAR)
6KNOB, CONTROL
7BMAY 7527P116-60
7MAY 7527P118-60
7AMAY 7527P119-60
7CMAY 7527P117-60
8AHEAD, BURNER (LR & RF)
8ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR)
8BHEAD, BURNER (CTR)
9WP3368921 Whirlpool Screw
10IGNITOR
11MAY 7101P606-60
12MAY 8008P064-60
13MAY 7109P081-60
14MAY 7114P008-60
15MAY 8008P071-60
