JGC9536ADF 03 – TOP ASSEMBLY

JGC9536ADF 03 – TOP ASSEMBLY

Written by

in

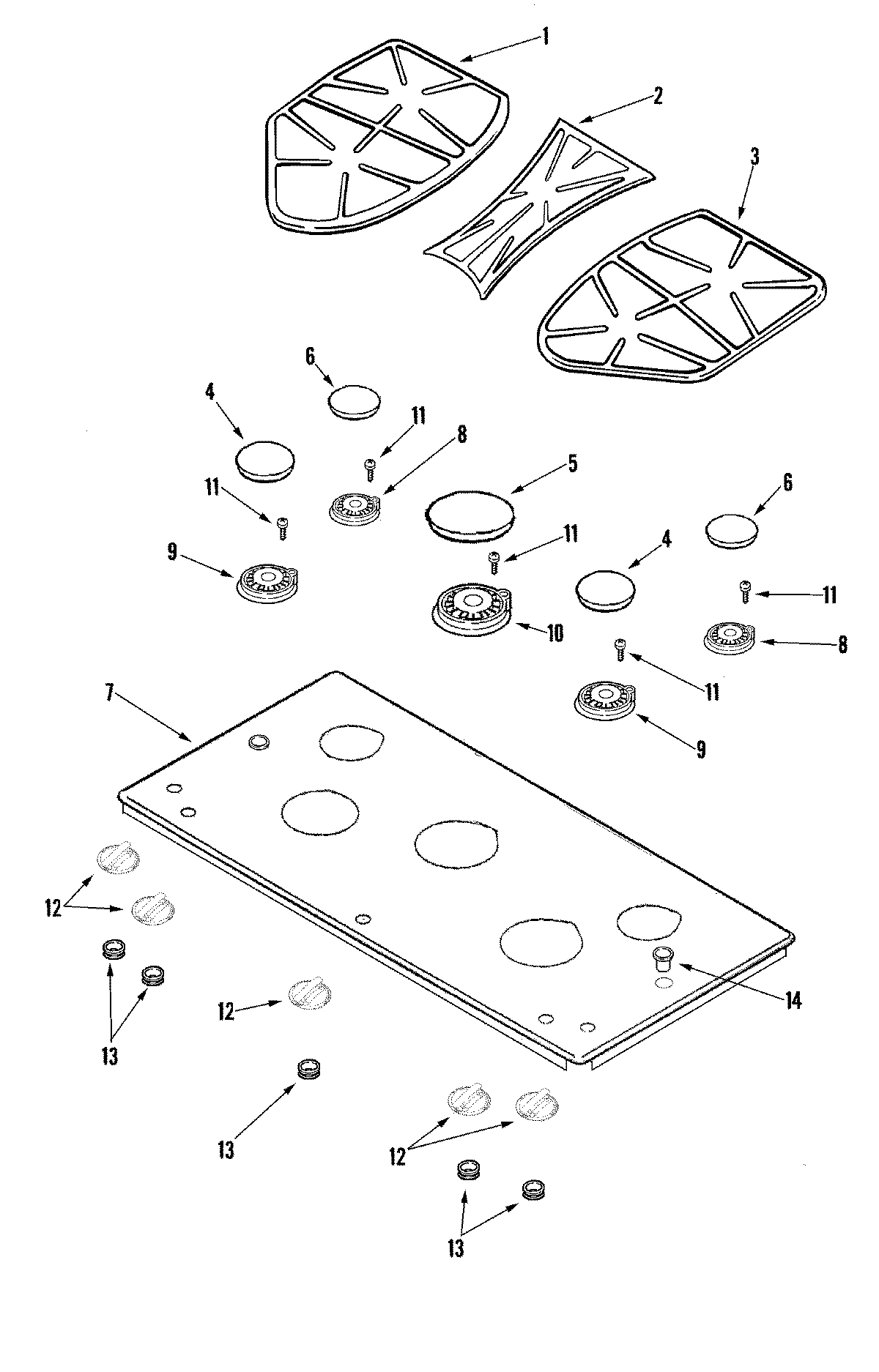

JGC9536ADF 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007988
2MAY 74007990
3MAY 74007989
4WP74007752 Whirlpool Burner Cap (Medium Gray)
5WP74007420 Whirlpool Large Gray Burner Cap
6CAP, BURNER (SMR-GRY)
7MAY 74008007
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
10WP74009336 Whirlpool Oven Top Igniter
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13MAY 74010063
14MAY 74007982
14MAY 74007980
1574010651 Whirlpool Oven Fiber Glass Gasket
16WP74010652 Whirlpool Gasket
