JGC9536ADS 03 – TOP ASSEMBLY

JGC9536ADS 03 – TOP ASSEMBLY

Written by

in

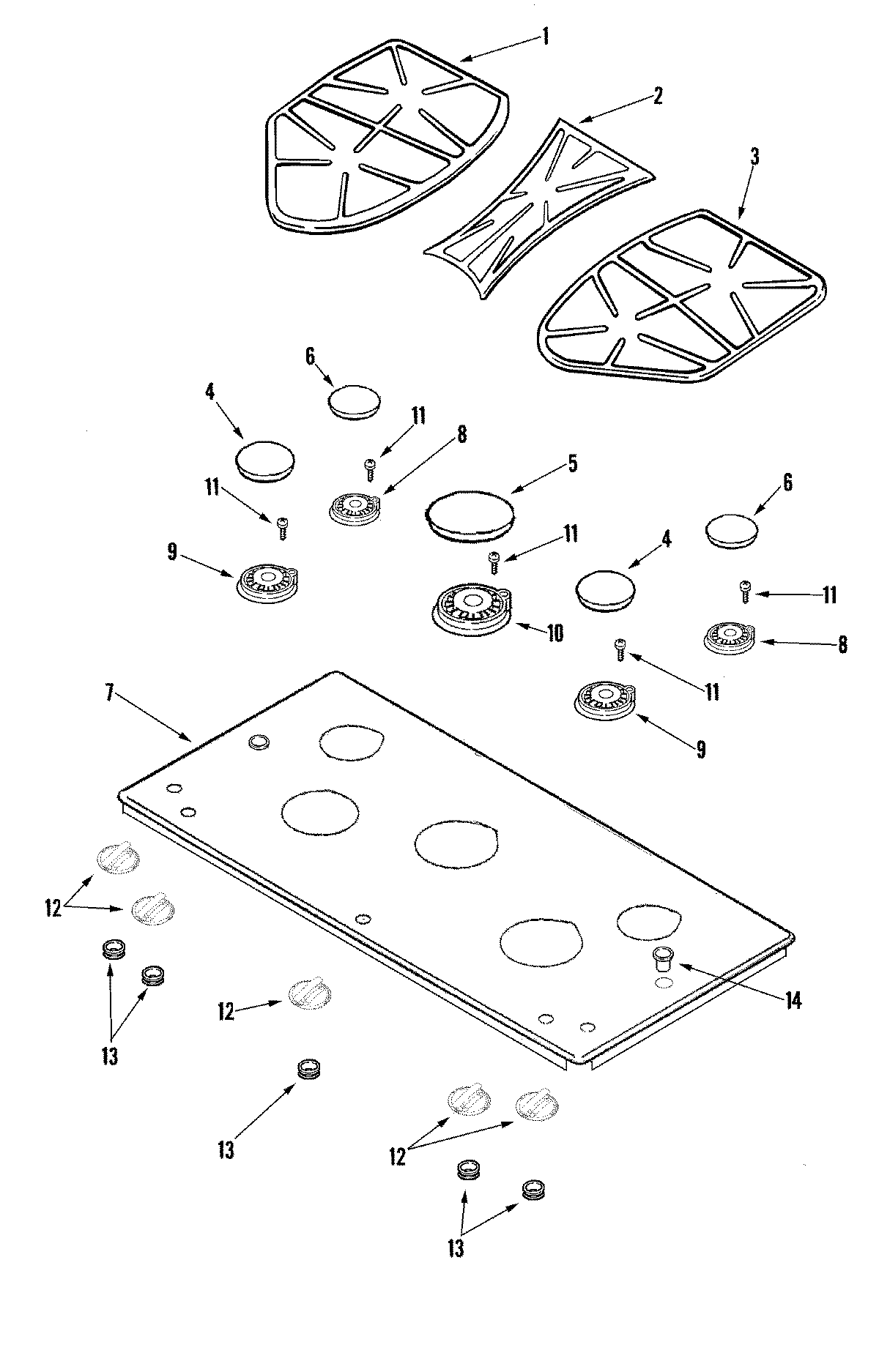

JGC9536ADS 03 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74007985
2MAY 74007987
3MAY 74007986
4WP74007925 Whirlpool Burner Cap
5WPW10154101 Whirlpool Burner Cap
6WP3191898 Whirlpool Surface Burner Cap Black
7W10168884 Whirlpool Cooktop Trim
7MAY 74008012
7MAY 74008245
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
10WP74009336 Whirlpool Oven Top Igniter
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13WP8008P071-60 Whirlpool Grommet
14MAY 74007981
14MAY 74007982
1574010651 Whirlpool Oven Fiber Glass Gasket
16WP74010652 Whirlpool Gasket
