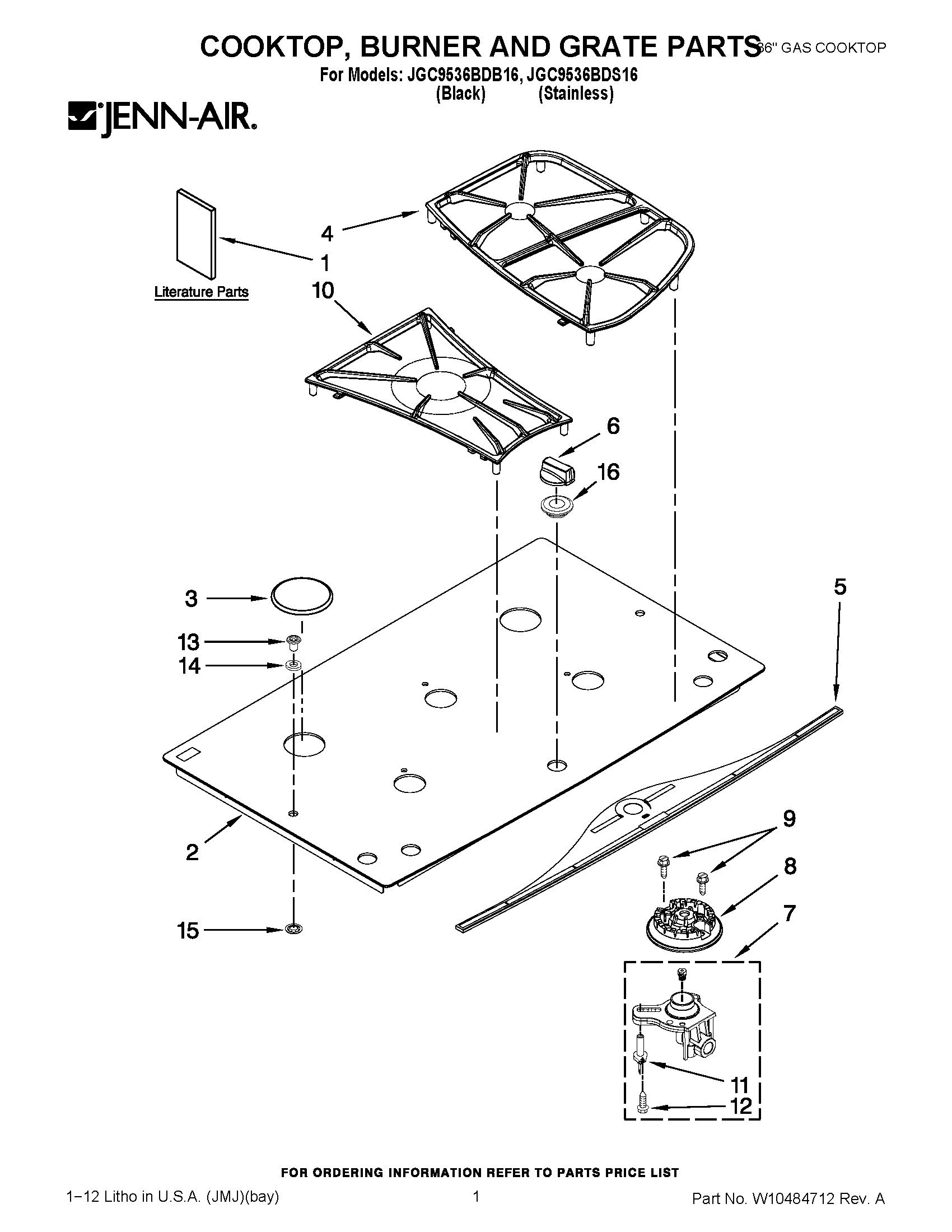

JGC9536BDB16 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10204447
1MAY W10203804
1MAY W10210795
1TIPS, SAFE COOKING (FRENCH)
2MAY W10204901
3CAP, BURNER (LR & RF)
3CAP, BURNER (CTR)
3CAP, BURNER (LF & RR)
4GRATE, BURNER (RIGHT)
4GRATE, BURNER (LEFT)
5TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (FRONT)
5TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
6KNOB, CONTROL
7HOLDER, ORIFICE (LEFT REAR)
7HOLDER, ORIFICE (LEFT FRONT)
7MAY 7527P135-60
7HOLDER, ORIFICE (RIGHT FRONT)
7HOLDER, ORIFICE (RIGHT REAR)
8HEAD, BURNER (LR & RF)
8HEAD, BURNER (CTR)
8ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR)
9WP3368921 Whirlpool Screw
10GRATE, CENTER
11IGNITOR
12MAY 7101P606-60
13MAY 8008P064-60
14MAY 7109P081-60
15MAY 7114P008-60
16MAY 8008P071-60
