JGC9536BDF 03 – TOP ASSEMBLY

JGC9536BDF 03 – TOP ASSEMBLY

Written by

in

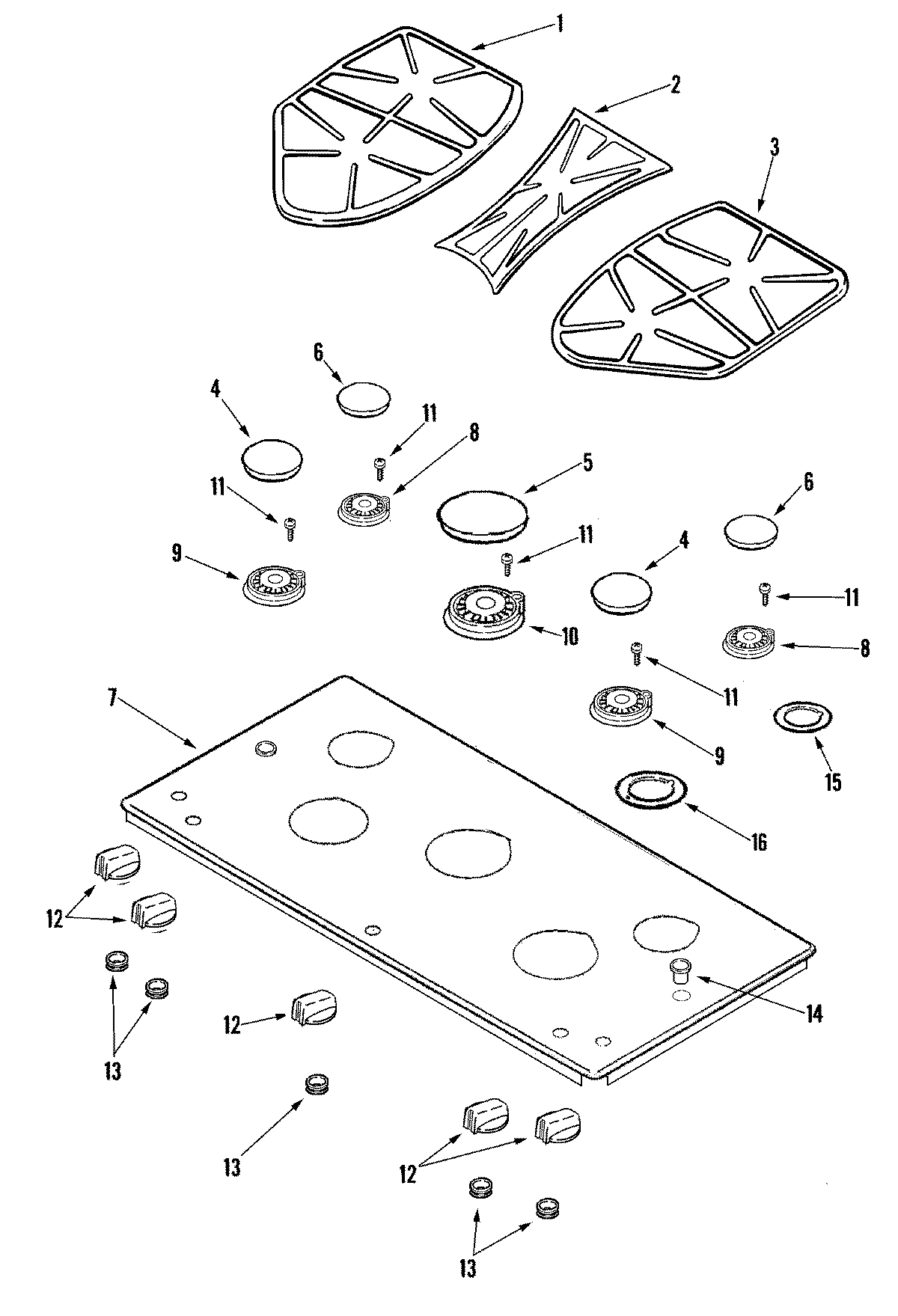

JGC9536BDF 03 – TOP ASSEMBLY

Products

PositionProduct
1GRATE, BURNER (LEFT)
2GRATE, CENTER
3GRATE, BURNER (RIGHT)
4WP74007925 Whirlpool Burner Cap
5WPW10154101 Whirlpool Burner Cap
7MAY 7920P179-60
874007734 Whirlpool Burner Assembly
974007735 Whirlpool Burner Assembly
1074007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
10WP74009336 Whirlpool Oven Top Igniter
11WP3368921 Whirlpool Screw
12WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13WP8008P071-60 Whirlpool Grommet
14MAY 74007982
14MAY 74007980
1574010651 Whirlpool Oven Fiber Glass Gasket
16WP74010652 Whirlpool Gasket
