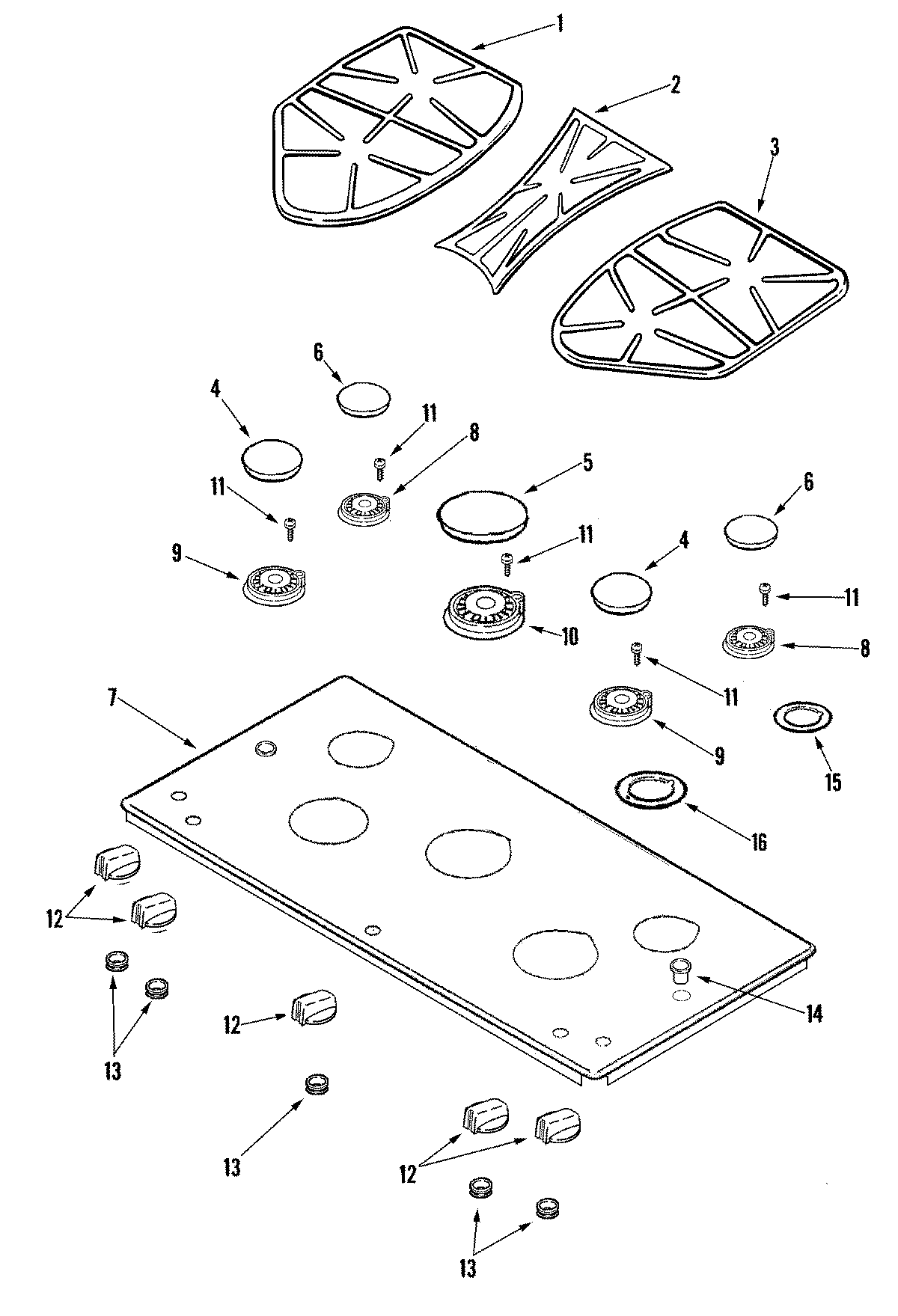

JGC9536BDS 03 – TOP ASSEMBLY

Products

Position	Product
1	GRATE, BURNER (LEFT)
2	GRATE, CENTER
3	GRATE, BURNER (RIGHT)
4	WP74007925 Whirlpool Burner Cap
5	WPW10154101 Whirlpool Burner Cap
7	MAY 7920P178-60
7	MAY 7746P132-60
8	74007734 Whirlpool Burner Assembly
9	74007735 Whirlpool Burner Assembly
10	WP74009336 Whirlpool Oven Top Igniter
10	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
11	WP3368921 Whirlpool Screw
12	WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
13	WP8008P071-60 Whirlpool Grommet
14	MAY 74007981
14	MAY 74007982
15	74010651 Whirlpool Oven Fiber Glass Gasket
16	WP74010652 Whirlpool Gasket
