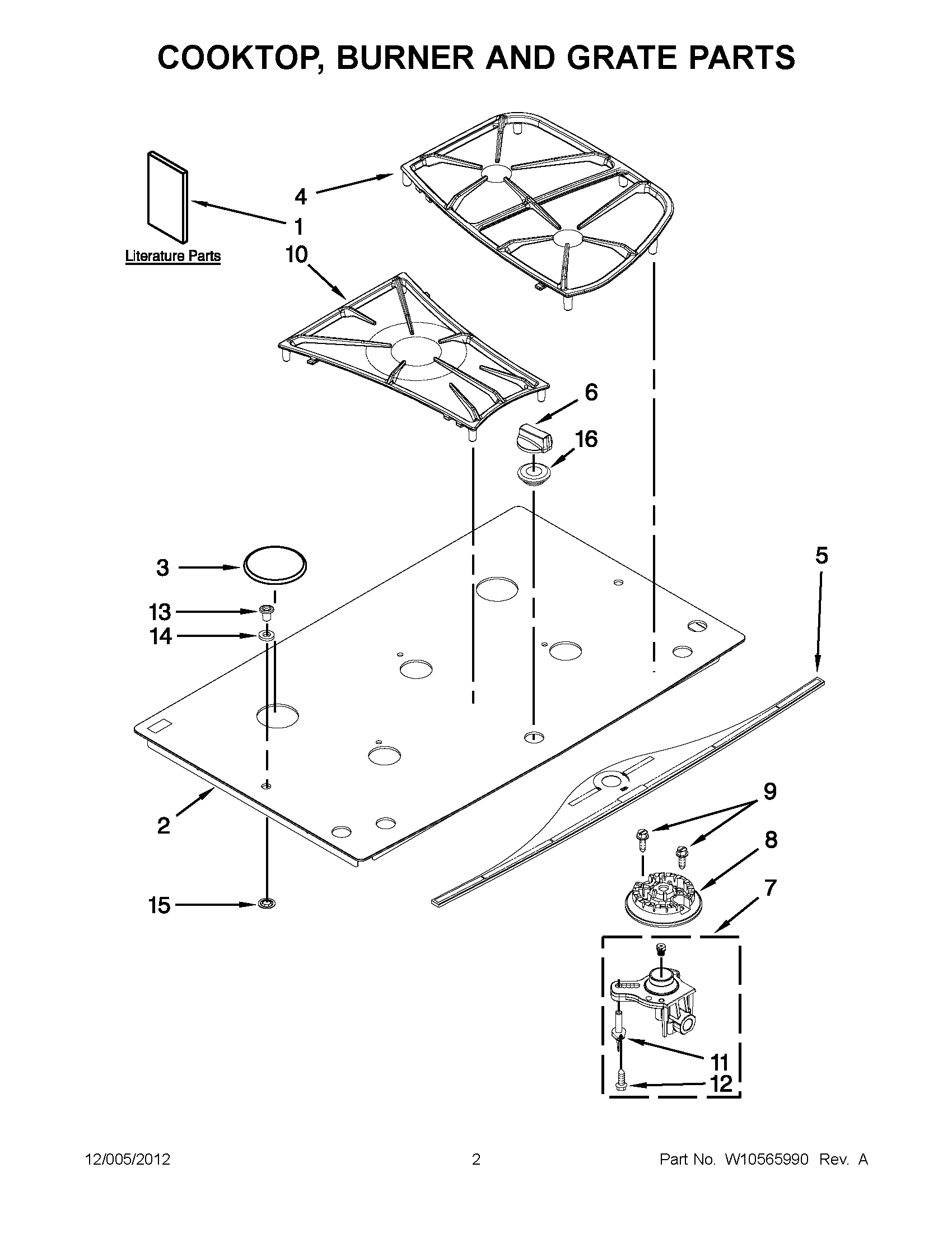

JGC9536BDS17 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10204447
1	MAY W10203804
1	MAY W10210795
1	TIPS, SAFE COOKING (FRENCH)
2	MAY W10204903
2	MAY W10204901
3	CAP, BURNER (LR & RF)
3	CAP, BURNER (LF & RR)
3	CAP, BURNER (CTR)
4	GRATE, BURNER (RIGHT)
4	GRATE, BURNER (LEFT)
5	TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (FRONT)
5	TRIM, COOKTOP FOR SS MODEL ONLY (STAINLESS) (REAR)
6	KNOB, CONTROL
7	HOLDER, ORIFICE (LEFT REAR)
7	HOLDER, ORIFICE (LEFT FRONT)
7	MAY 7527P135-60
7	HOLDER, ORIFICE (RIGHT FRONT)
7	HOLDER, ORIFICE (RIGHT REAR)
8	HEAD, BURNER (LR & RF)
8	HEAD, BURNER (CTR)
8	ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR)
9	WP3368921 Whirlpool Screw
10	GRATE, CENTER
11	IGNITOR
12	MAY 7101P606-60
13	MAY 8008P064-60
14	MAY 7109P081-60
15	MAY 7114P008-60
16	MAY 8008P071-60
