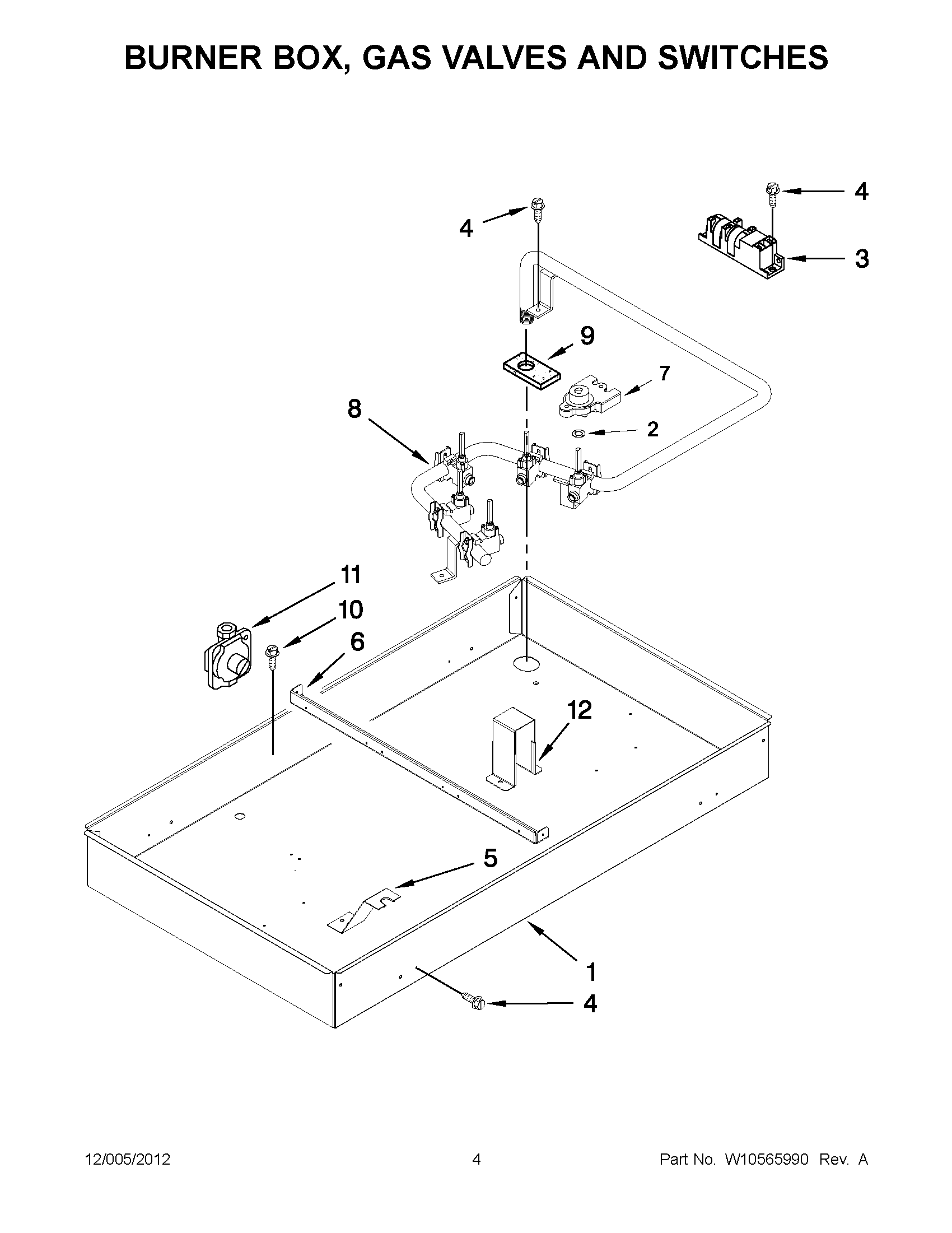

JGC9536BDS17 02 – BURNER BOX, GAS VALVES AND SWITCHES

JGC9536BDS17 02 – BURNER BOX, GAS VALVES AND SWITCHES

Written by

in

JGC9536BDS17 02 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 7201P144-60
2MAY 7201P135-60
3SPARK MODULE
4MAY 7101P426- 60
5MAY W10536159
6BRACKET, DOWNDRAFT BRACE
7MAY 7403P820-60
7MAY 7403P819-60
7MAY 7403P818-60
8MAY 7513P351-60
9MAY 7208P024-60
10Screw, Ground
11MAY 7510P093-60
12MAY 3807F689-51
