JGCC58EH4 1

JGCC58EH4 1

Written by

in

JGCC58EH4 1

Products

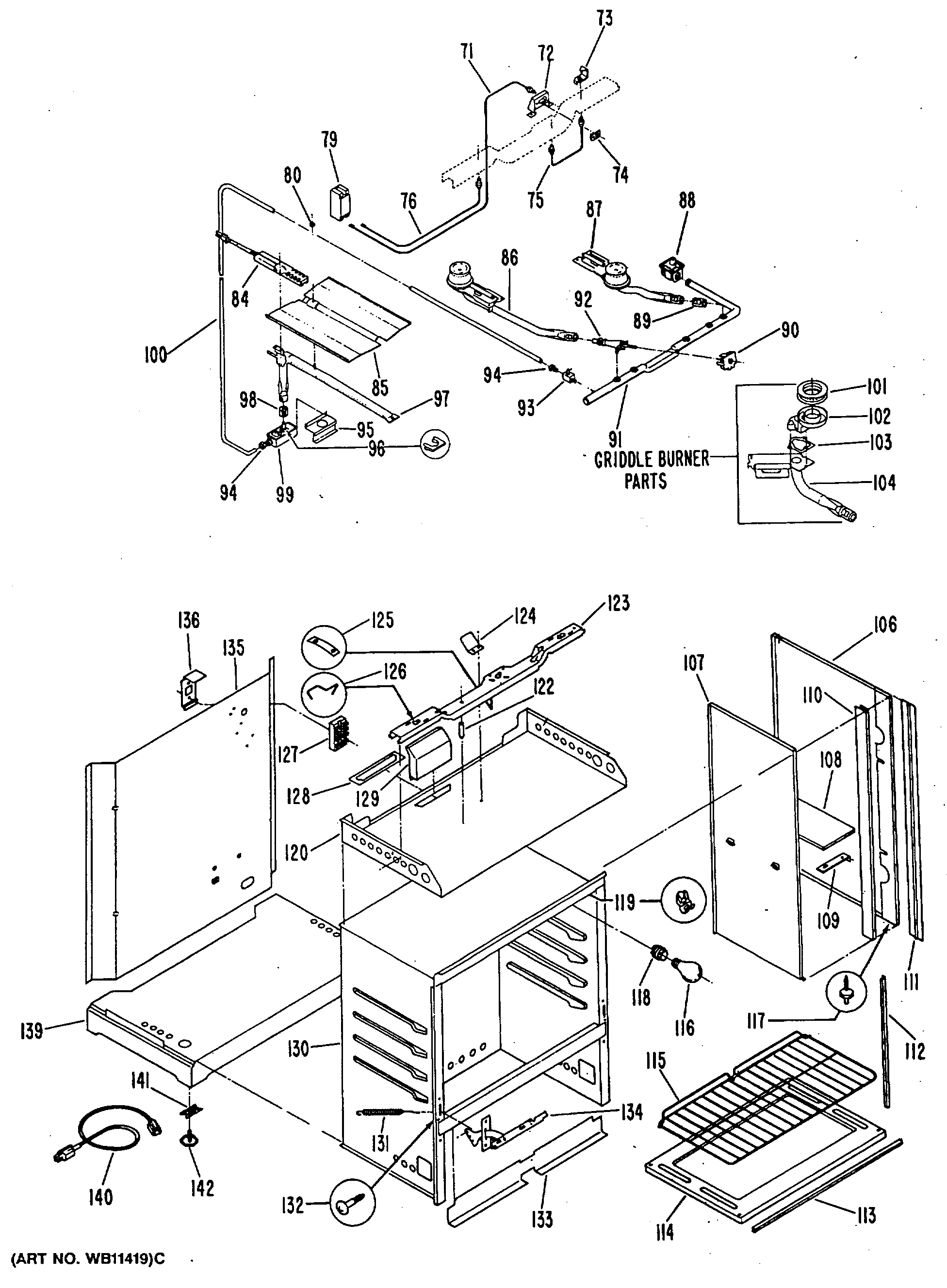

Position	Product
72	BRACKET-IGNITER
73	*RETAINER-IGNITER
74	RETAINER-IGNITER
75	BASE-IGNITER-GRIDDLE
76	BASE IGNITOR LH
79	GEN WB21X5265
80	NUT
84	GEN WB2X10065
84	TERMINAL BLOCK-IGNITOR
84	WB2X9998 GE Oven Flat Igniter
85	GEN WB49X0511
86	GEN WB28X5035
87	GEN WB28X0061
88	GEN WB21X0395
89	MIXER AIR TOP BURNERS
90	GEN WB24X0379
91	MANIFOLD PIPE
92	GEN WB21X0397
93	VALVE MANUAL CUT-OFF
94	GEN WB01X0713
95	GEN WB02X4220
97	BURNER OVEN
98	GEN WB02X4195
99	COVER-SAFETY VALVE
99	GEN WB21X5266
100	TUBE OVEN GAS SUPPLY 7/16"X55"
101	GEN WB28X5033
102	BURNER-TOP-GRIDDLE-BUNR
103	GASKET-GRIDDLE-BURNER
104	TUBE-VENTURI-GRIDDLE BNR
106	PANEL-SIDE-ALMOND-RH
106	PANEL-SIDE-WHITE-RH
106	PANEL SIDE R/H ALMOND
106	PANEL SIDE R/H WHITE
107	BODY-SIDE-INNER
108	GEN WB48X0171
109	BRACKET-STIFFENER-BOTTOM
110	CHANNEL-STIFFENER-BASE
111	TRIM VERTICAL
112	SEAL DOOR SIDE
113	SEAL DOOR BOTTOM/TOP
114	GEN WB49X0570
115	GEN WB48X0166
116	GEN BULB 40W
117	PIN BODY PANEL GUIDE
118	SOCKET-OVEN LIGHT
119	CLIP-THERMOSTAT BULB
120	GEN WB49X0605
122	SPACER-BURNER SUPPORT
123	BURNER SUPPORT CHANNEL
124	REFECTOR-GRIDDLE BURNER
125	GEN WB01X0729
126	GEN WB02X4270
127	TERMINAL BLOCK
128	GEN WB55X0514
129	FLUE BOX-LOWER
130	OVEN ASSEMBLY
131	SPRING OVEN DOOR
132	SCREW-PANEL MTG
133	GEN WB49X0521
134	HINGE OVEN DOOR RH
134	HINGE OVEN DOOR LH
135	GEN WB63X0296
136	GEN WB02X4211
139	GEN WB49X0555
141	FASTENER LEG LEVELER
142	SCREW-LEVELING
