JGCP430ADP 01 – BURNER BOX

JGCP430ADP 01 – BURNER BOX

Written by

in

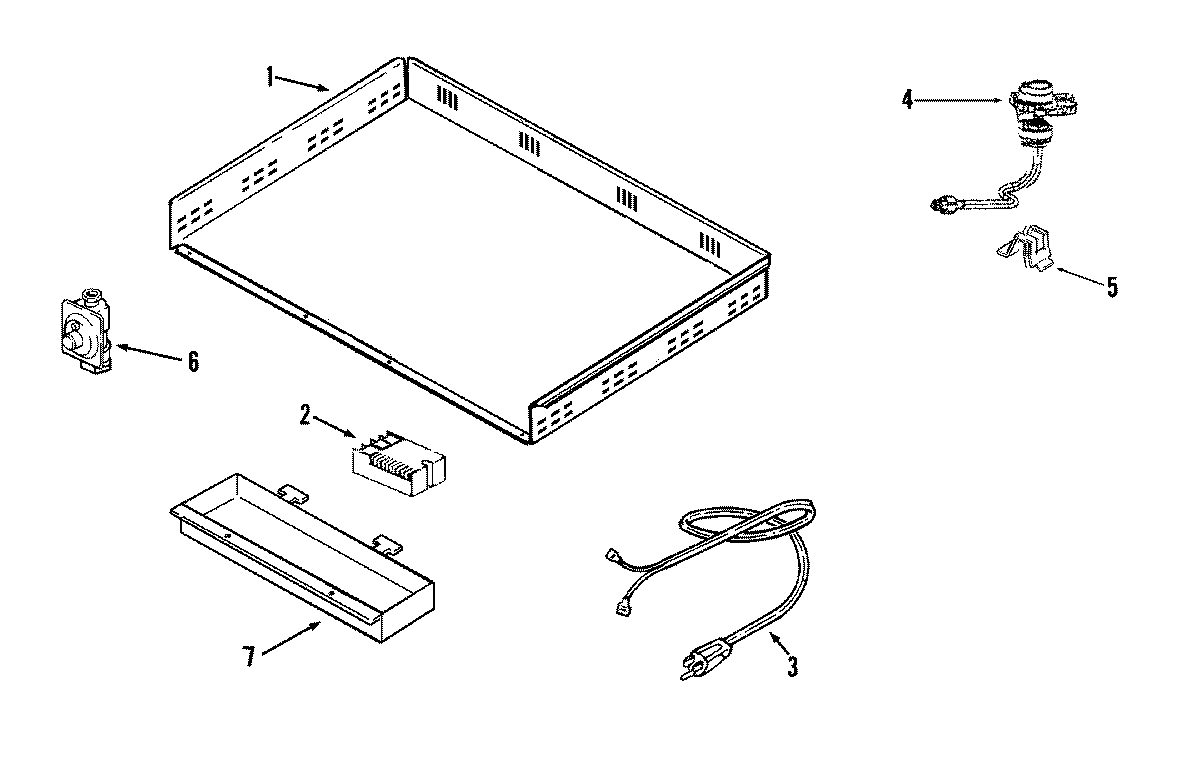

JGCP430ADP 01 – BURNER BOX

Products

PositionProduct
1MAY 74009637
2SCREW
2WPW10475147 Whirlpool Spark Module
3MAY 74009947
4MAY 74009807
474009806 Whirlpool Oven Orifice Holder (RR-9.2K)
4MAY 74009809
5MAY 74009635
6W11106948 Whirlpool Pressure Regulator
7MAY Y04100254
7WP90767 Whirlpool Screw
7MAY 71003146
