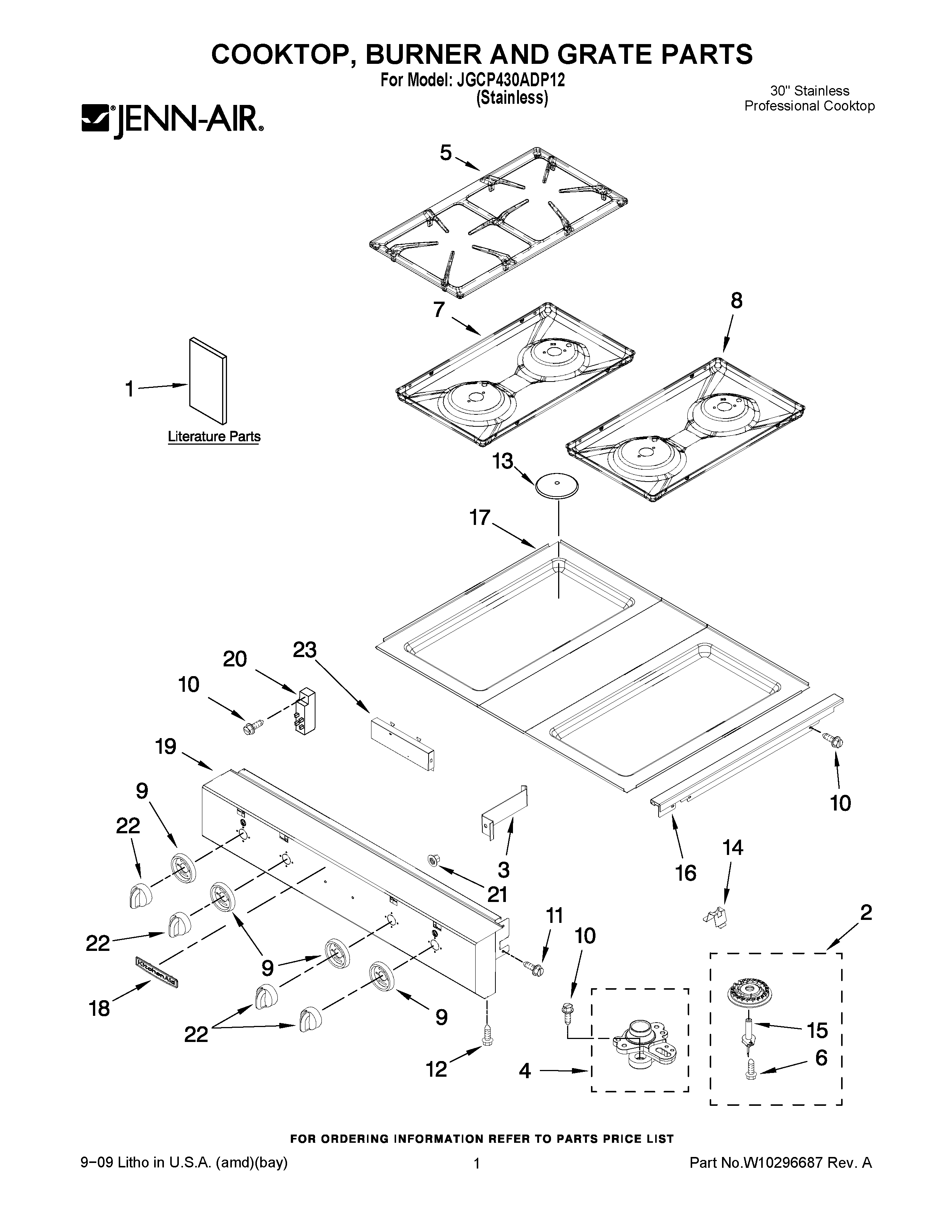

JGCP430ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

JGCP430ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGCP430ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY 8112P342-60
1MAY 8101P657-60
1MAY 8101P547-60
1MAY 8119P072-60
2HEAD, BURNER (CTR)
2HEAD, BURNER (LR & RF)
2HEAD, BURNER (LF & RR)
3BRACKET, CONTROL PANEL
4ORIFICE HOLDER (LR & CR)
4MAY 7527P050-60
4MAY 7527P049-60
5MAY 7518P473-60
6SCREW
7DRIP, BOWL (LARGE)
8DRIP, BOWL (MEDIUM)
9MAY 7740P150-60
10MAY 7101P426- 60
11SCREW
12SCREW
13CAP, BURNER (LF & RR)
13CAP, BURNER (CTR)
13CAP, BURNER (LR & RF)
14MAY 3801F842-51
15IGNITOR
16MAY 3608F134-50
17MAY 7746P065-60
18MAY 7719P087-60
19MAY 7720P495-60
20MAY 7431P038-60
21NUT, HEX
22MAY W10175692
23MAY 4005F547-51
