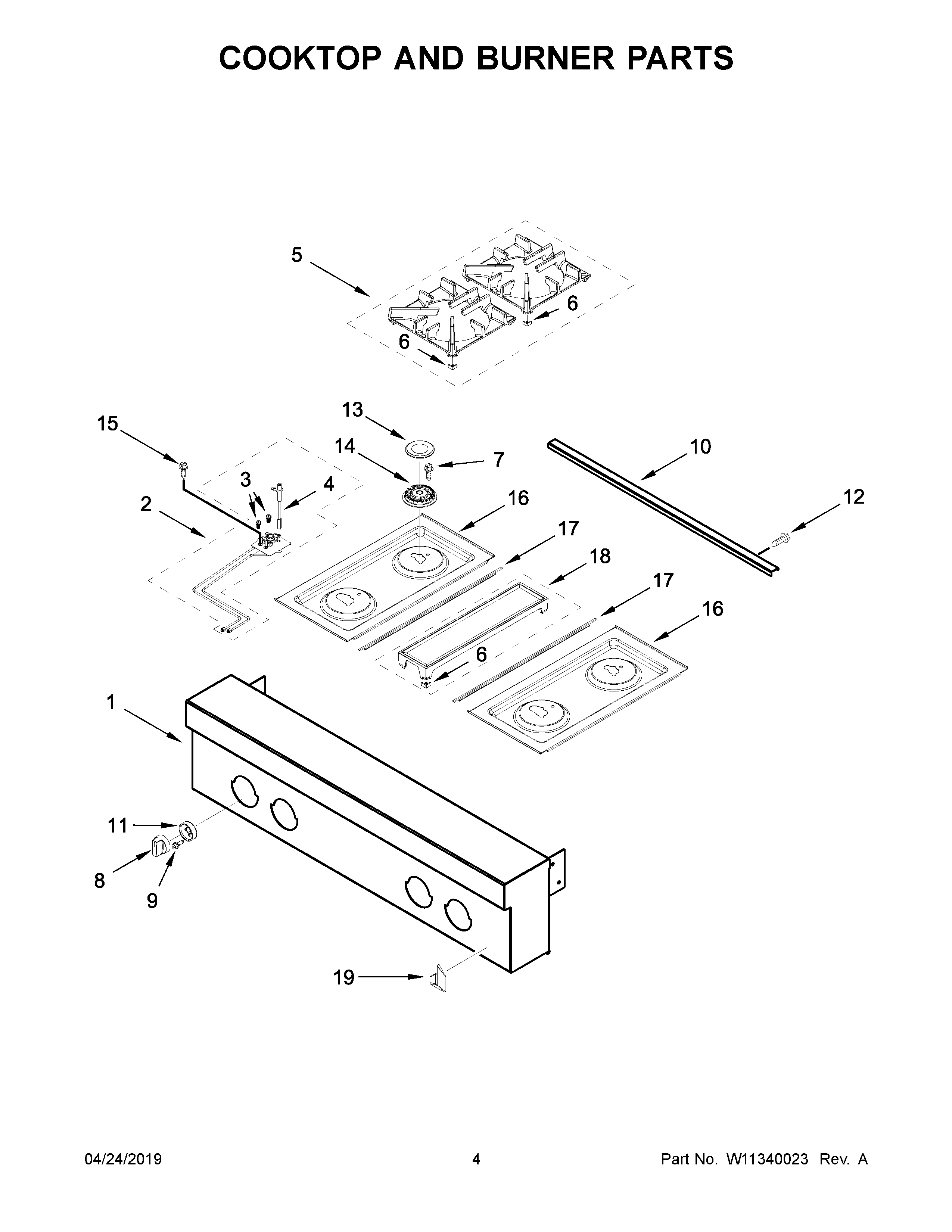

JGCP430HL00 03 – COOKTOP AND BURNER PARTS

Products

Position	Product
1	MAY W11253783
2	MAY W10892771
2A	MAY W10892486
2B	MAY W10892772
3C	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3B	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	KNOB, BURNER (STAINLESS)
9	MAY W10919387
10	MAY W11355759
11	BEZEL, COOKTOP
12	SCREW (8BX3/8-NI)
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	MAY 7101P426- 60
16A	MAY W10804371
16	PANEL, COOKTOP (BLACK (LEFT))
17	TRIM, T-STRIP
18	MAY W11179866
19	MAY W11238658
