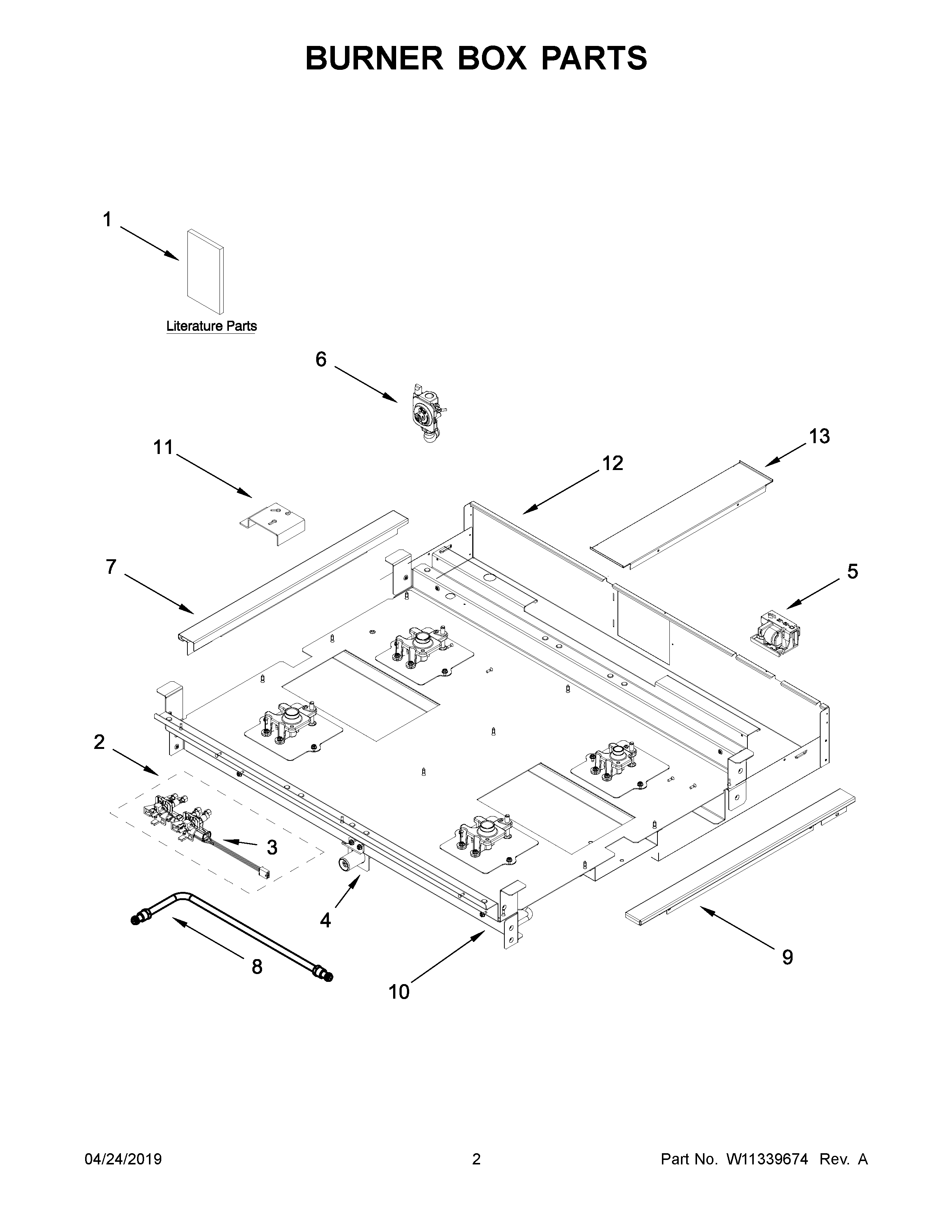

JGCP430HM00 02 – BURNER BOX PARTS

Products

Position	Product
NI	MAY 4450800
NI	MAY W11200328
NI	KIT, LP CONVERSION
NI	MAY W11038934
NI	CORD, POWER
NI	LINER (NOT A SERVICEABLE PART)
1B	MAY W11266585
1C	MAY W11266565
1	MAY W11114328
1A	MAY W11110989
2	MAY W10893053
2A	MAY W10893062
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	MAY W11121199
5	MODULE, SPARK
6	REGULATOR, PRESSURE
7	MAY W11047750
8A	MAY W10892072
8	MAY W10892070
9	MAY W11047752
11	BRACKET, MOUNTING ORIFICE
13	MAY W11121361
