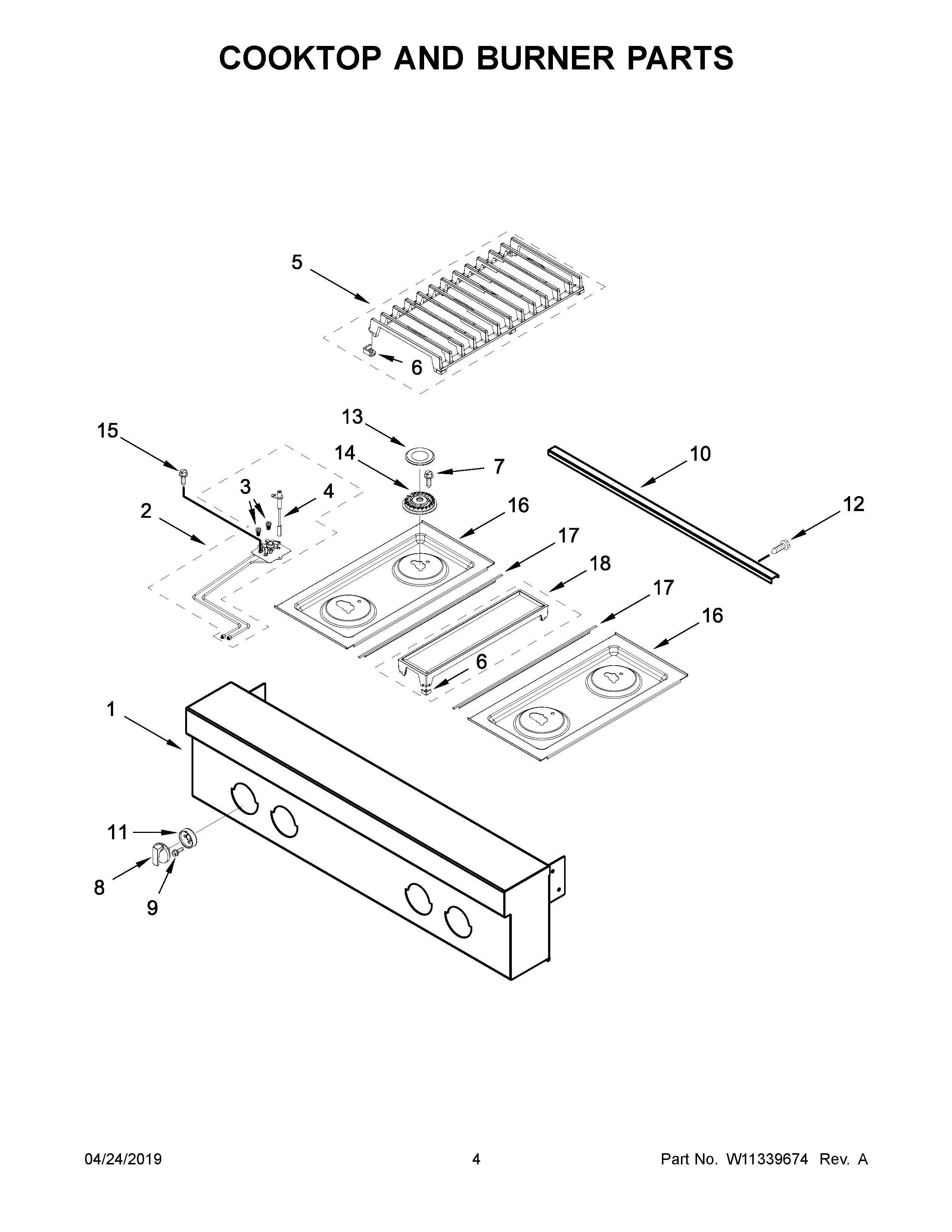

JGCP430HM00 03 – COOKTOP AND BURNER PARTS

Products

PositionProduct
1MAY W11253799
2MAY W10892771
2AMAY W10892486
2BMAY W10892772
3AORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3CORIFICE, SIMMER (2.0K) (RIGHT REAR)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5AASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7SCREW
8KNOB, BURNER (STAINLESS)
9MAY W10919387
10MAY W11355759
11BEZEL, COOKTOP
12SCREW (8BX3/8-NI)
13CAP, BURNER (BLACK (SET OF 4))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15MAY 7101P426- 60
16APANEL, COOKTOP (BLACK) (RIGHT)
16PANEL, COOKTOP (BLACK) (LEFT)
17TRIM, T-STRIP
18MAY W11172800
