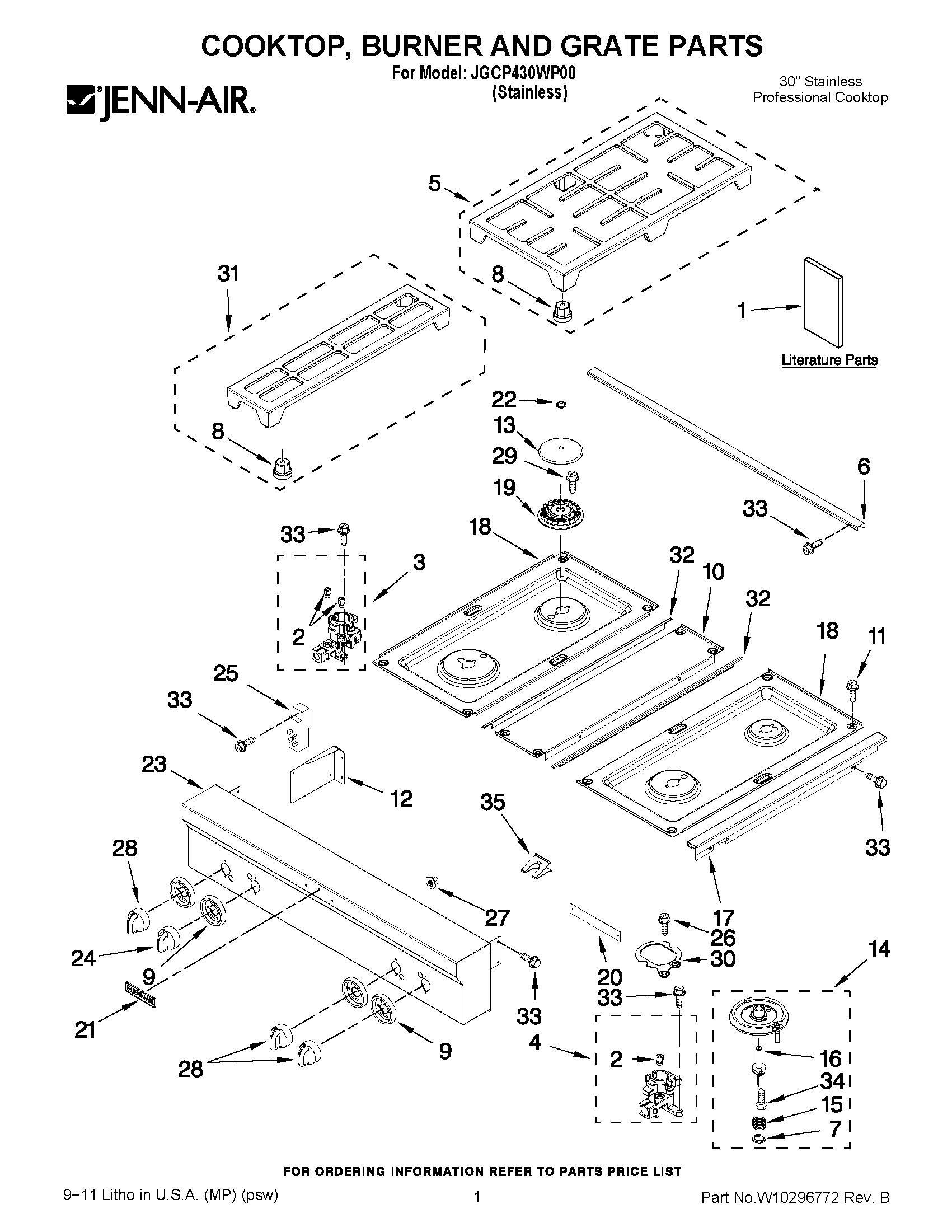

JGCP430WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10286834
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10145395
1MAY W10221132
2ORIFICE (LR & RF)
2ORIFICE (L)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (RR)
4ORIFICE HOLDER (LR & RF)
5MAY W10145532
6MAY W10269218
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10MAY W10189105
11MAY 7101P500-60
12MAY W10137323
13CAP, BURNER (LF)
13CAP, BURNER (LR & RF)
13CAP, BURNER (RR)
14BASE, BURNER (LR & RF)
14BASE, BURNER (LF)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (LF)
16ELECTRODE (LR & RF)
16ELECTRODE (CR)
17MAY W10226015
17MAY W10226014
18MAY W10189104
18MAY W10282192
19BURNER HEAD (RR)
19BURNER HEAD (LR & RF)
19BURNER HEAD (LF)
20MAY W10250433
21MAY W10159578
22MAY W10115953
23MAY W10295780
24KNOB, CONTROL LF
25MAY 7431P038-60
26MAY 8286930
27NUT, HEX
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30MAY 3196160
31MAY W10276495
32TRIM, T-STRIP
33SCREW (8BX3/8-NI)
34MAY 7101P501-60
35SPRING, ELECTRODE (RR)
