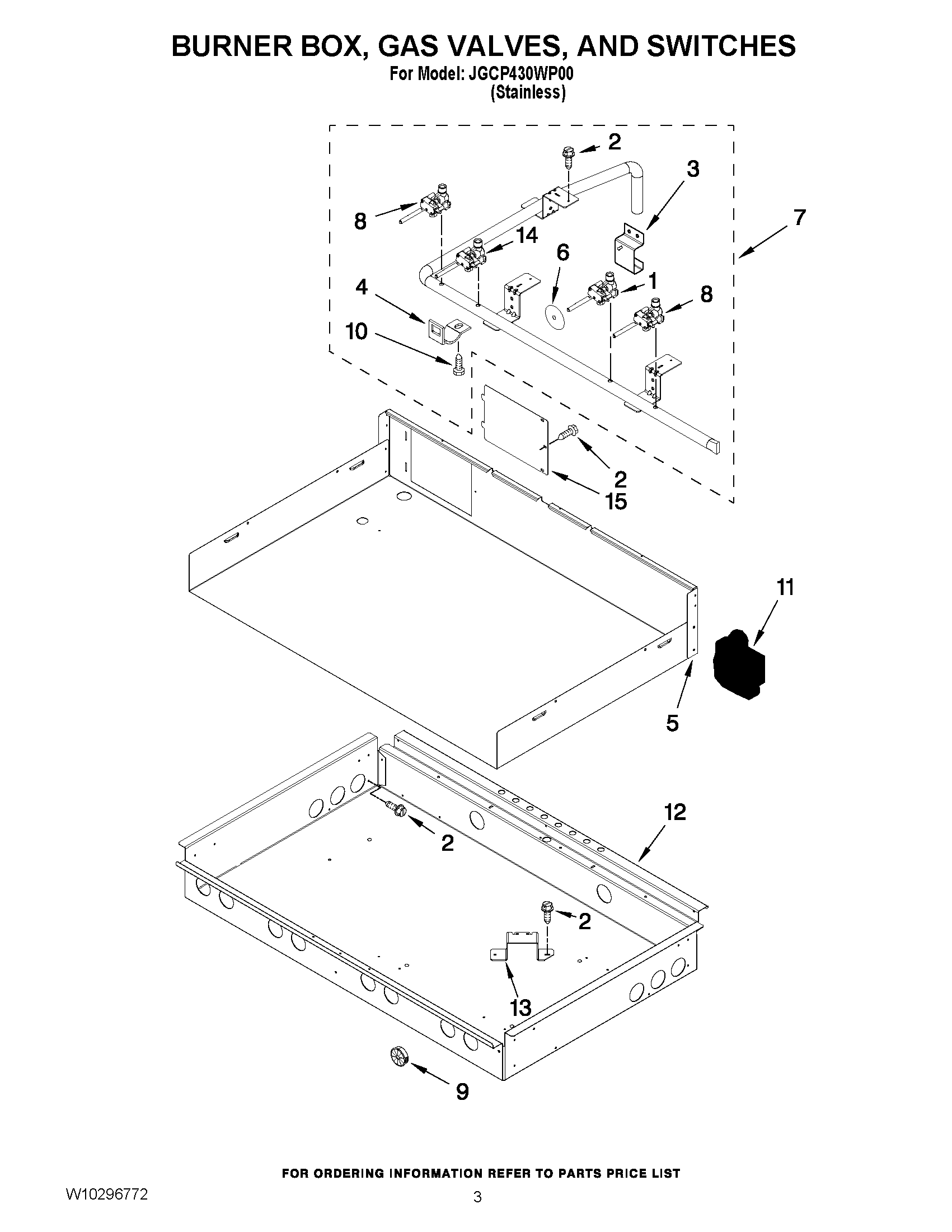

JGCP430WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGCP430WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGCP430WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (RR)
NITUBING, GAS (LF)
NITUBING, GAS (RF)
NITUBING, GAS (LR)
1VALVE, SIMMER
2MAY 7101P426- 60
3BRACKET, MOUNTING ORIFICE
4MAY W10189107
5MAY W10189157
6MAY W10189177
7MAY W10115892
8MAY W10250407
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR,PRESSURE
12MAY W10250426
13BRACKET, BURNER (CR)
13BRACKET, BURNER (RF,RR,CF,LR,LF)
14MAY W10250410
15MAY W10115843
