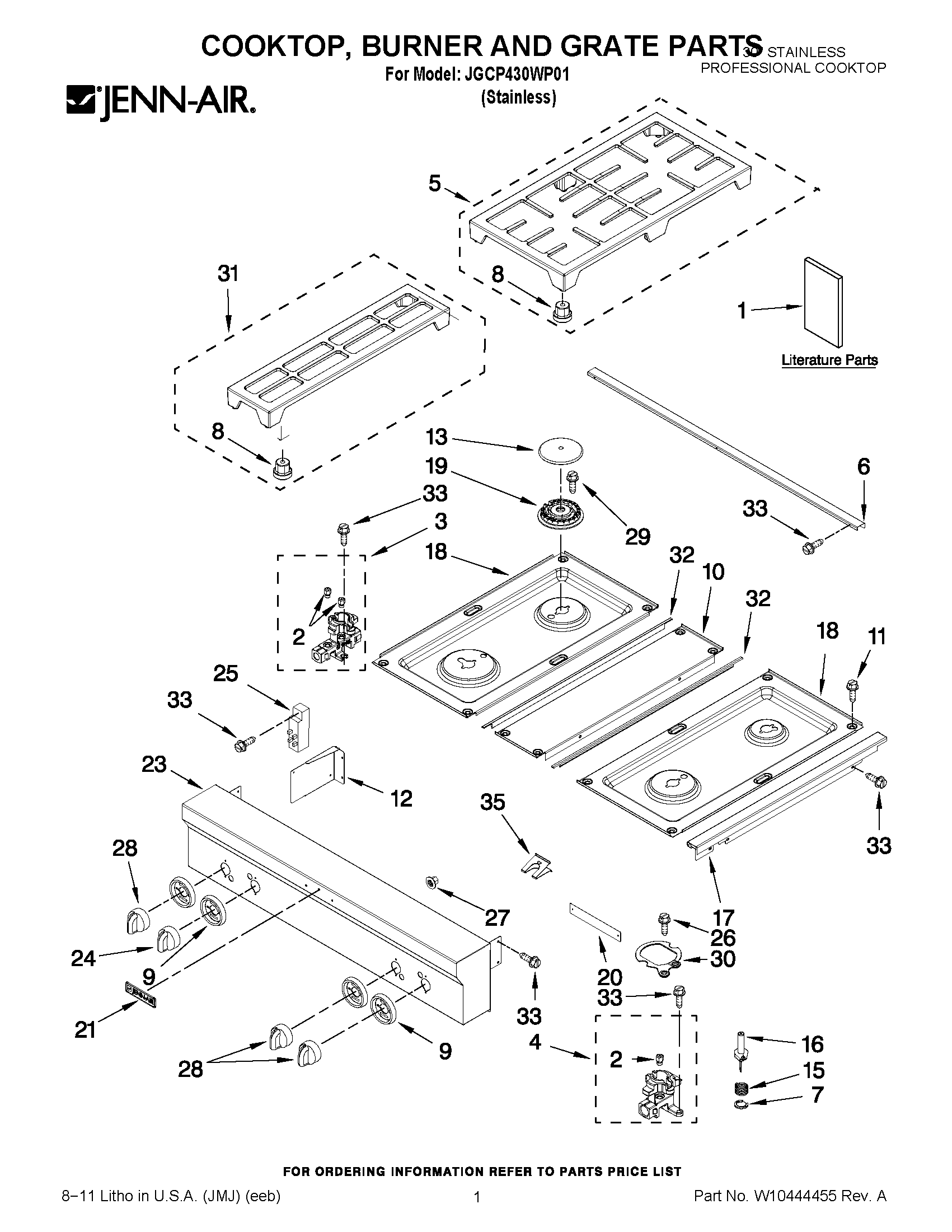

JGCP430WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10394706
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10399390
1MAY W10403307
2ORIFICE (LF-LOW)
2ORIFICE (LF-HIGH)
2ORIFICE (LR & RF)
3ORIFICE HOLDER (DUAL-LF)
4ORIFICE HOLDER (RR)
4MAY W10364556
5MAY W10276551
6MAY W10269218
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10MAY W10189105
11MAY 7101P500-60
12MAY W10398550
13MAY W10256032
13MAY W10364463
13MAY W10256034
15MAY W10256046
16ELECTRODE (LR, RF & RR)
16ELECTRODE (CR)
17MAY W10226014
17MAY W10226015
18MAY W10352968
18MAY W10352969
19BURNER, HEAD (LR,RF)
19BURNER, HEAD (LF)
19BURNER HEAD (RR)
20MAY W10250433
21MAY W10159578
23MAY W10295780
24KNOB, CONTROL LF
25MAY 7431P038-60
26MAY 8286930
27NUT, HEX
28KNOB, CONTROL (LR, RF) LR, RF
29MAY 7101P426- 60
30MAY 3196160
31MAY W10276495
32TRIM, T-STRIP
33SCREW (8BX3/8-NI)
35SPRING, ELECTRODE (RR)
