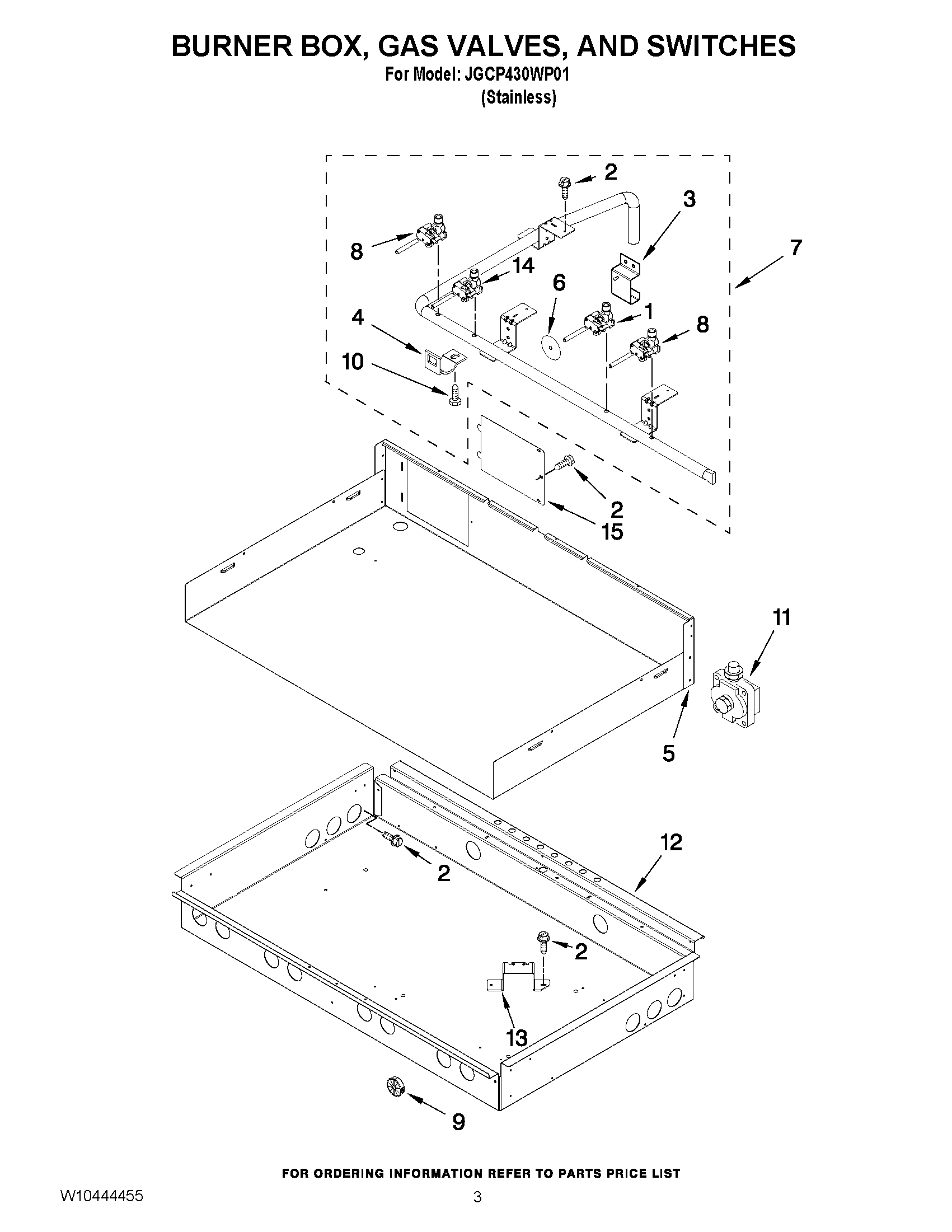

JGCP430WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGCP430WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGCP430WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (RR)
NITUBE, FRT LFT
NITUBE, FRT RT
NITUBE, BACK
NIMAY W10368335
1VALVE, SIMMER
2MAY 7101P426- 60
3BRACKET, MOUNTING ORIFICE
4MAY W10189107
5MAY W10189157
6MAY W10189177
7ASSY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR,PRESSURE
12MAY W10371508
13BRACKET, BURNER
14VALVE, GAS (LF)
15MAY W10115843
