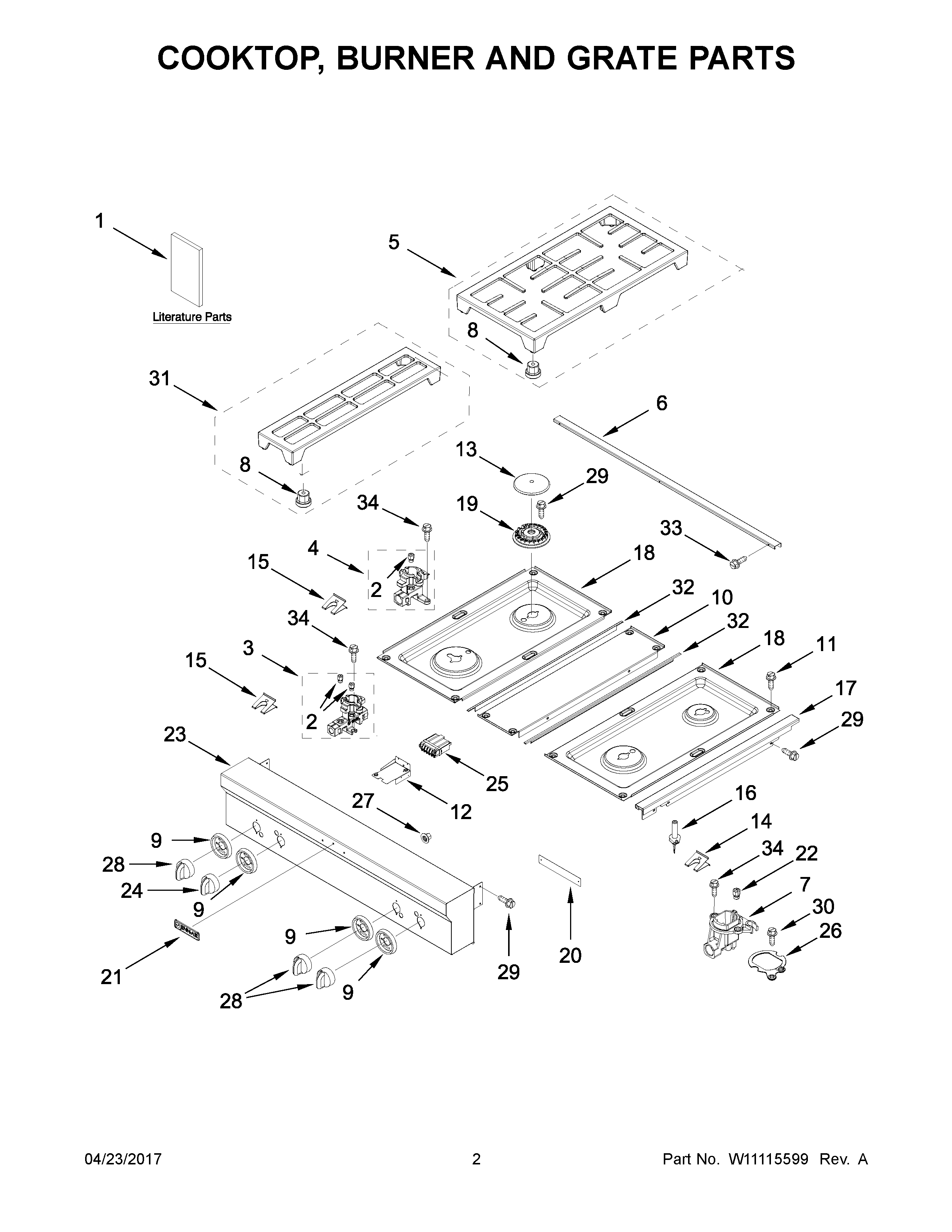

JGCP430WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY 4450800
NI	MAY W10340850
NI	MAY W10283996
NI	CORD, POWER
NI	LP CONVERSION KIT
NI	MAY W10183556
NI	CLIP, HARNESS
NI	MAY W10763500
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, SWITCH
NI	MAY W10368807
1A	MAY W10849070
1B	MAY W10899358
1D	TIPS, SAFE COOKING (FRENCH)
1C	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10403307
2A	ORIFICE (LF-LOW)
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W10276551
6	MAY W10269218
7	MAY W10883622
8	BUMPER, GRATE
9	MAY W10276494
10	MAY W10189105
11	MAY 7101P500-60
12	BRACKET, SPARK MODULE
13	MAY W10256034
13A	MAY W10256032
13B	MAY W10364463
14	SPRING, ELECTRODE (RR)
15	SPRING, ELECTRODE
16	ELECTRODE, WIRE
17A	MAY W10226015
17	MAY W10226014
18	MAY W10352969
18A	MAY W10352968
19	MAY W10879806
19B	BURNER HEAD (RR)
19A	BURNER, HEAD (LR,RF)
20	MAY W10250433
21	MAY W10159578
22	ORIFICE (CR)
23	MAY W10779892
24	KNOB, CONTROL LF
25	MODULE, SPARK
26	MAY 8286930
27	NUT, HEX
28	KNOB, CONTROL (LR, RF) LR, RF
29	MAY 7101P426- 60
30	MAY 3196160
31	MAY W10276495
32	TRIM, T-STRIP
33	SCREW (8BX3/8-NI)
34	SCREW (ALL BUT CENTER REAR)
34A	MAY 8286921
