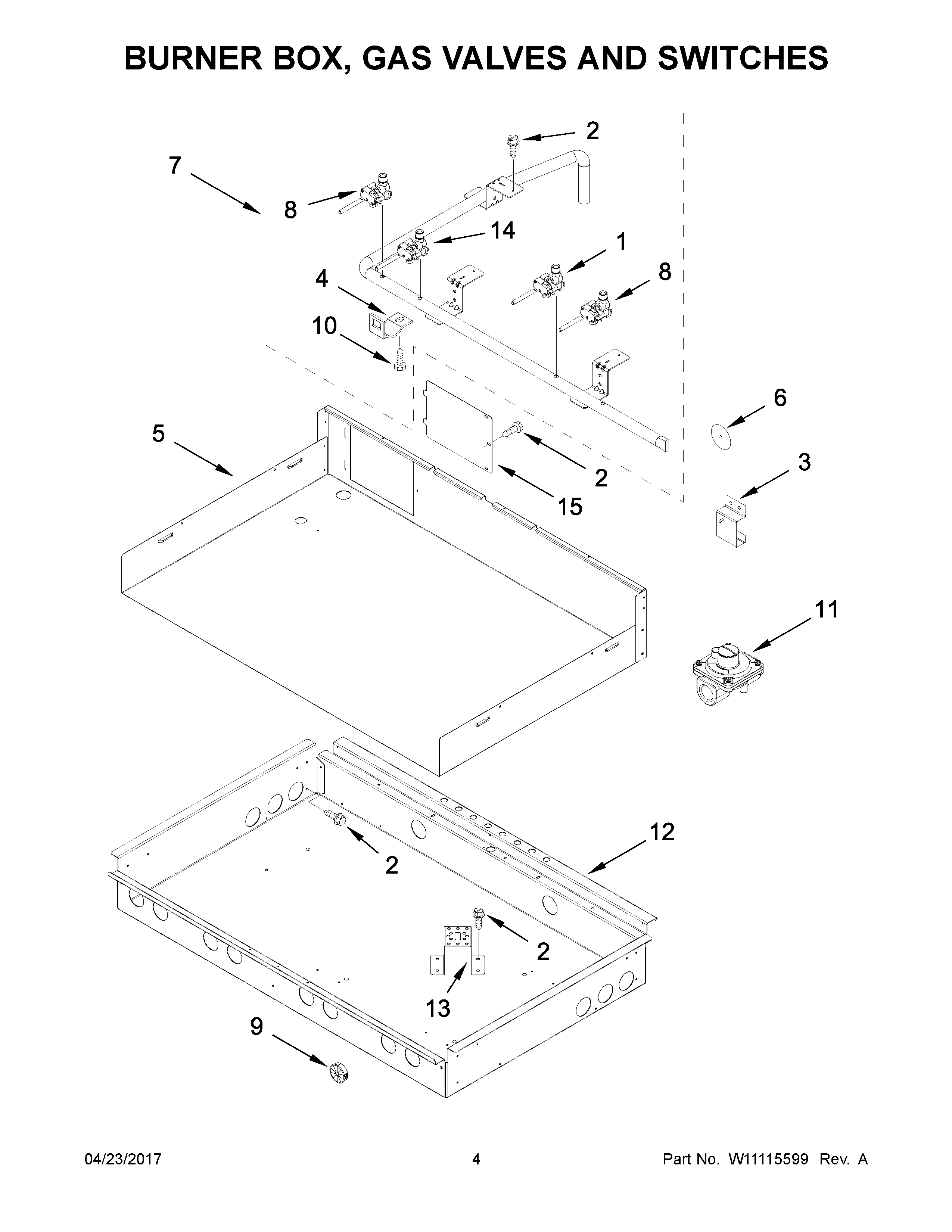

JGCP430WP02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NITUBING, GAS (RR)
NITUBE, FRT LFT
NITUBE (CENTER FRONT)
NILINER (NOT A SERVICEABLE PART)
NITUBE, BACK
NITUBE, FRT RT
1VALVE, SIMMER
2MAY 7101P426- 60
3BRACKET, MOUNTING ORIFICE
4BRACKET, VALVE
5MAY W10778213
6MAY W10189177
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR, PRESSURE
12MAY W10371508
13BRACKET, BURNER
14VALVE, GAS (LF)
15MAY W10115843
