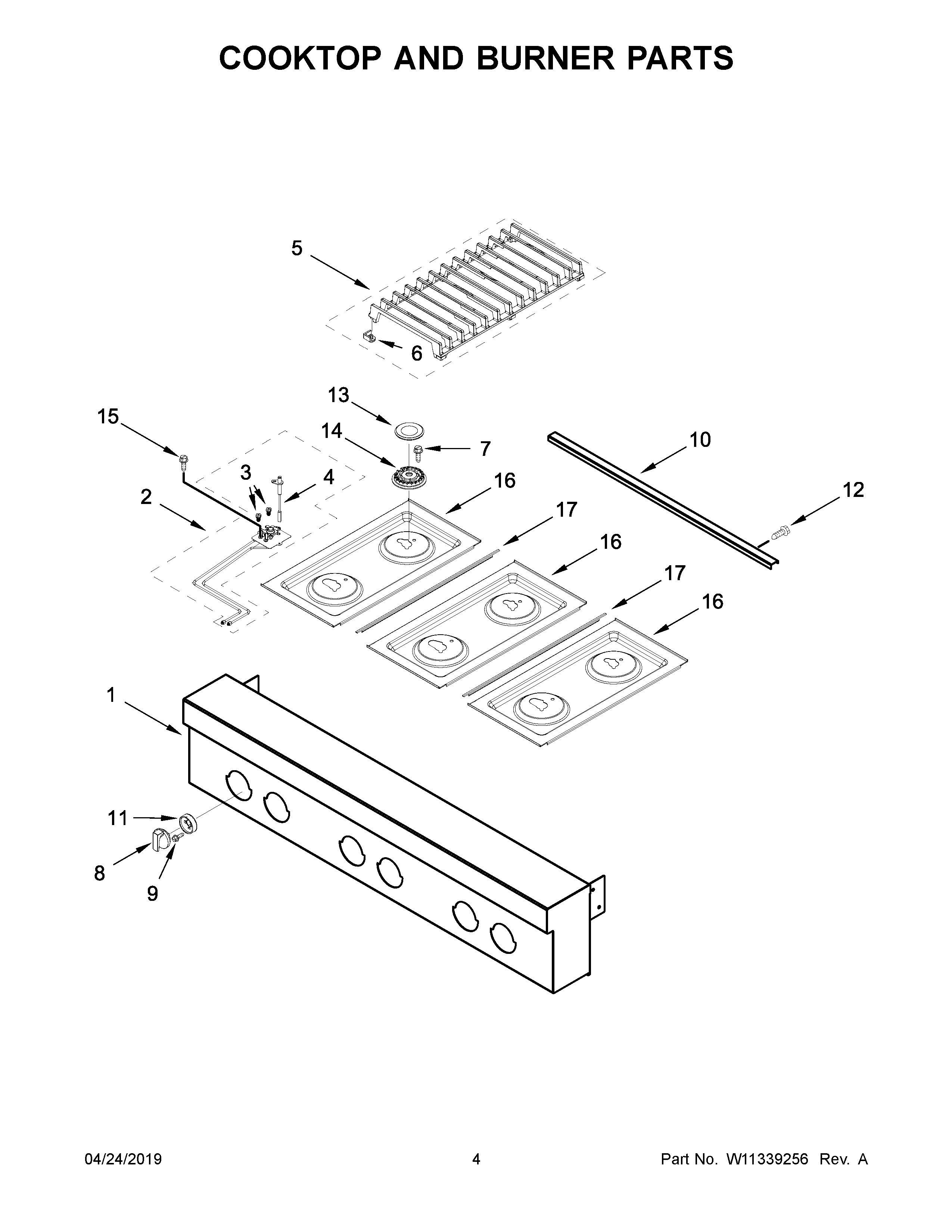

JGCP436HM00 03 – COOKTOP AND BURNER PARTS

Products

Position	Product
1	MAY W11253798
2	MAY W10892771
2A	MAY W10892486
2B	MAY W10892772
3C	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3B	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5A	ASSEMBLY, GRATE (BLACK) (LEFT CENTER)
5B	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	SCREW
8	KNOB, BURNER (STAINLESS)
9	MAY W10919387
10	MAY W11355760
11	BEZEL, COOKTOP
12	SCREW (8BX3/8-NI)
13	CAP, BURNER (BLACK (SET OF 6))
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15	MAY 7101P426- 60
16	PANEL, COOKTOP (BLACK) (LEFT)
16A	PANEL, COOKTOP (BLACK) (LEFT CENTER)
16B	MAY W11038254
17	TRIM, T-STRIP
