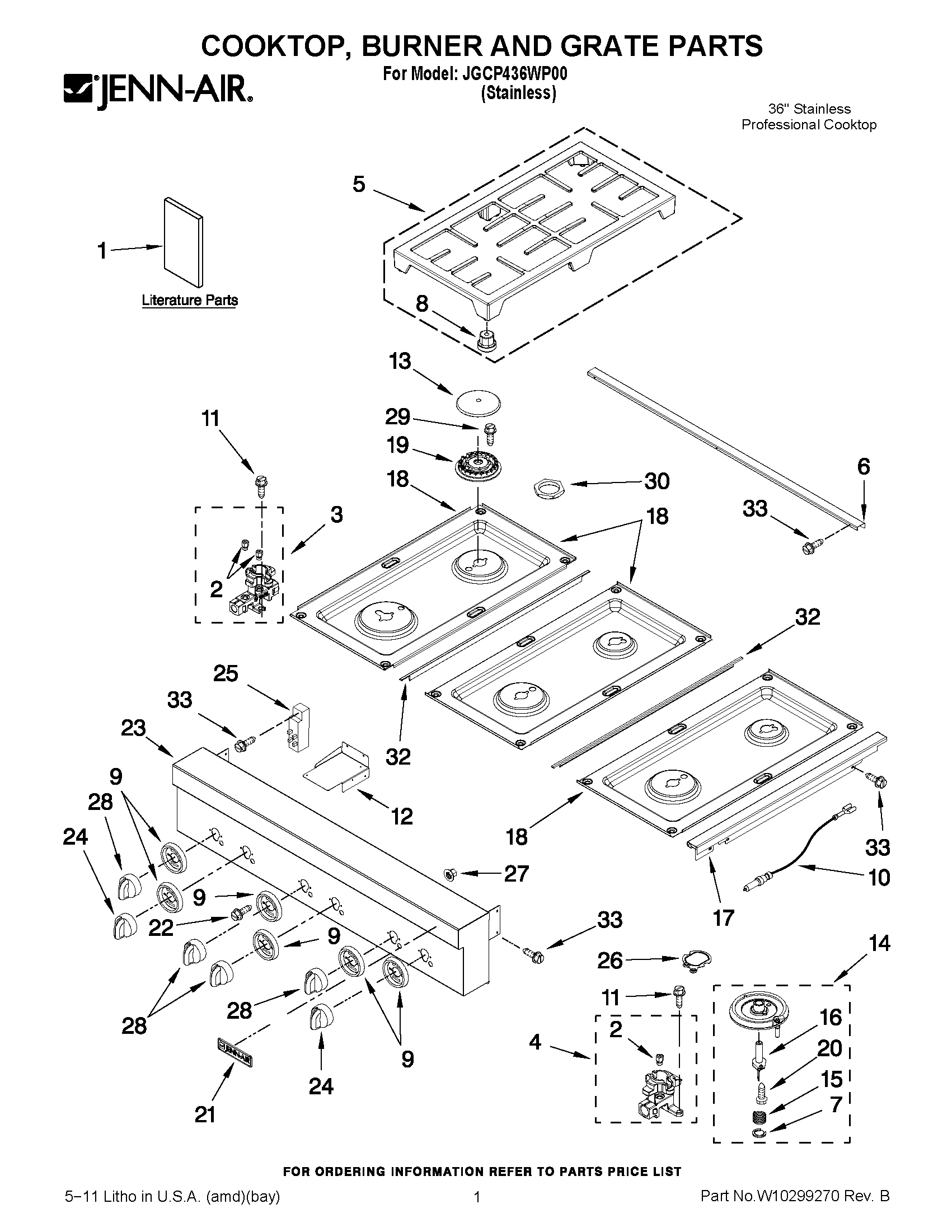

JGCP436WP00 01 – COOKTOP, BURNER AND GRATE PARTS

JGCP436WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGCP436WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10221132
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10145395
1MAY W10286834
2ORIFICE (LR & RF)
2ORIFICE (L)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (LR & RF)
4ORIFICE HOLDER (RR)
5MAY W10145532
6MAY W10269217
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10ELECTRODE (CR)
11MAY 8286921
12MAY W10137323
13CAP, BURNER (RR)
13CAP, BURNER (LF)
13CAP, BURNER (LR & RF)
14BASE, BURNER (LR & RF)
14BASE, BURNER (LF)
15SPRING, ELECTRODE (RR)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (LF)
16ELECTRODE (LR & RF)
17MAY W10226014
17MAY W10226015
18MAY W10189101
18COOKTOP (CENTER)
18MAY W10189104
19BURNER HEAD (RR)
19BURNER HEAD (LF)
19BURNER HEAD (LR & RF)
21MAY W10159578
22WP74003976 Whirlpool Screw
23PANEL, CONTROL (STAINLESS)
24KNOB, CONTROL LF
25MAY 7431P039-60
26MAY 8286930
27NUT, HEX
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30MAY W10115953
32TRIM, T-STRIP
33MAY 7101P426- 60
