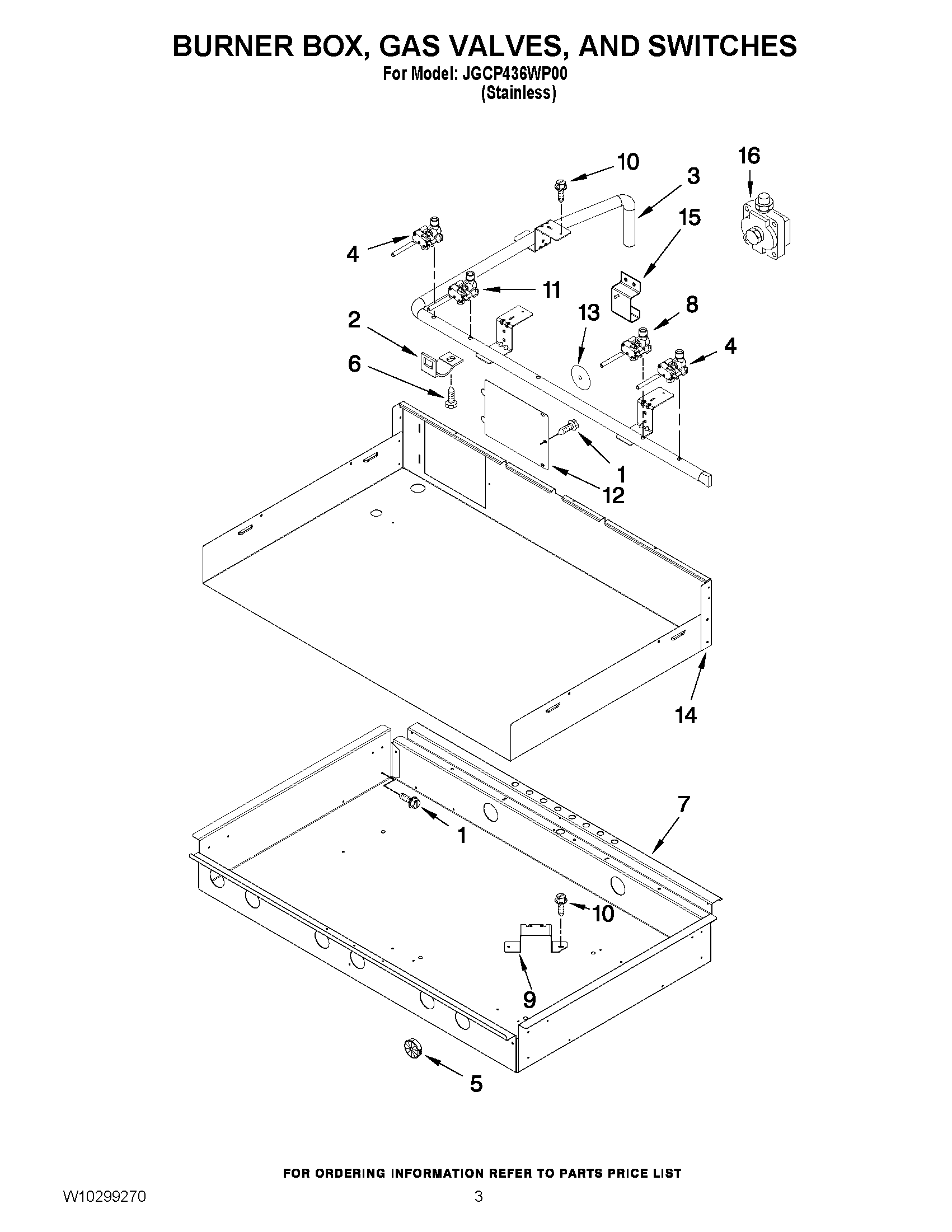

JGCP436WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	TUBING, GAS (RR)
NI	TUBING, GAS (LF)
NI	TUBING, GAS (RF)
NI	TUBING, GAS (LR)
1	MAY 7101P426- 60
2	MAY W10189107
3	MAY W10115896
4	MAY W10250407
5	MAY W10189097
6	SCREW, VALVE MTG
7	MAY W10250425
8	VALVE, SIMMER
9	BRACKET, BURNER (CR)
10	SCREW, SHOULDER
11	MAY W10250410
12	MAY W10115843
13	MAY W10189177
14	MAY W10189156
15	BRACKET, MOUNTING ORIFICE
16	REGULATOR,PRESSURE
