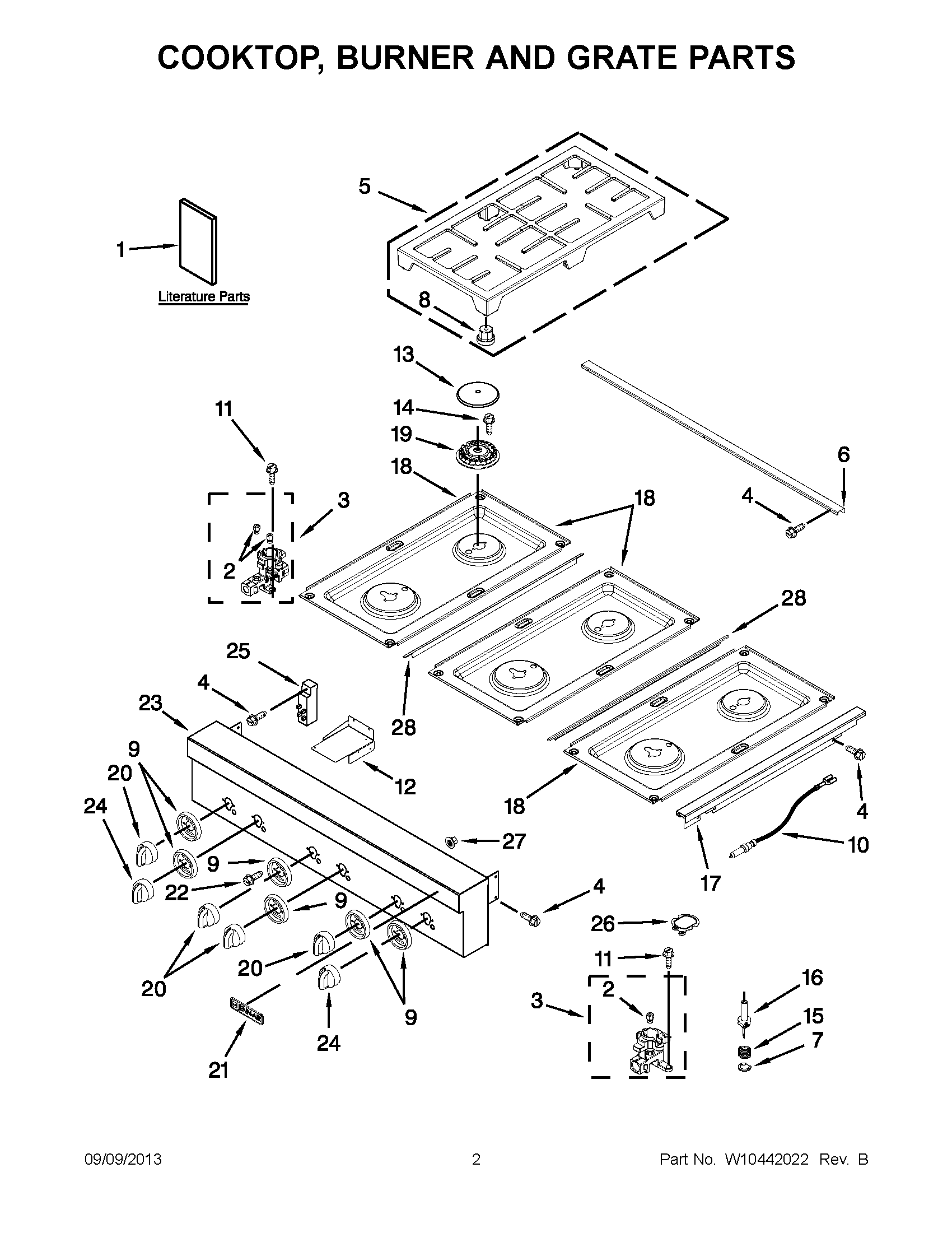

JGCP436WP01 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10399390
1	MAY W10403307
1	MAY W10394706
1	TIPS, SAFE COOKING (FRENCH)
2	ORIFICE (CR)
2	ORIFICE (LF-HIGH)
2	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
3	ORIFICE HOLDER (DUAL-LF)
3	MAY W10364556
3	ORIFICE HOLDER (RR)
4	MAY 7101P426- 60
5	MAY W10276551
6	MAY W10269217
7	CLIP, ELECTRODE
8	BUMPER, GRATE
9	MAY W10276494
10	ELECTRODE (CR)
11	MAY 3196160
12	MAY W10498405
13	MAY W10256032
13	MAY W10256034
13	MAY W10364463
14	SCREW
15	SPRING, ELECTRODE (RR)
15	MAY W10256046
16	ELECTRODE (LR, RF & RR)
16	ELECTRODE, WIRE
17	MAY W10226014
18	COOKTOP (BLACK (RIGHT))
18	MAY W10352969
18	COOKTOP (BLACK (CENTER))
19	BURNER HEAD (RR)
19	SPREADER, FLAME (20K) (LEFT FRONT AND RIGHT FRONT)
19	BURNER, HEAD (LR,RF)
20	KNOB, CONTROL (LR, RF) LR, RF
21	MAY W10159578
22	MAY 7101P500-60
23	PANEL, CONTROL (STAINLESS)
24	KNOB, CONTROL LF
25	MODULE, SPARK
26	MAY 8286930
27	NUT, HEX
28	TRIM, T-STRIP
