JGCP436WP01 03 – BURNER BOX, GAS VALVES AND SWITCHES

JGCP436WP01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Written by

in

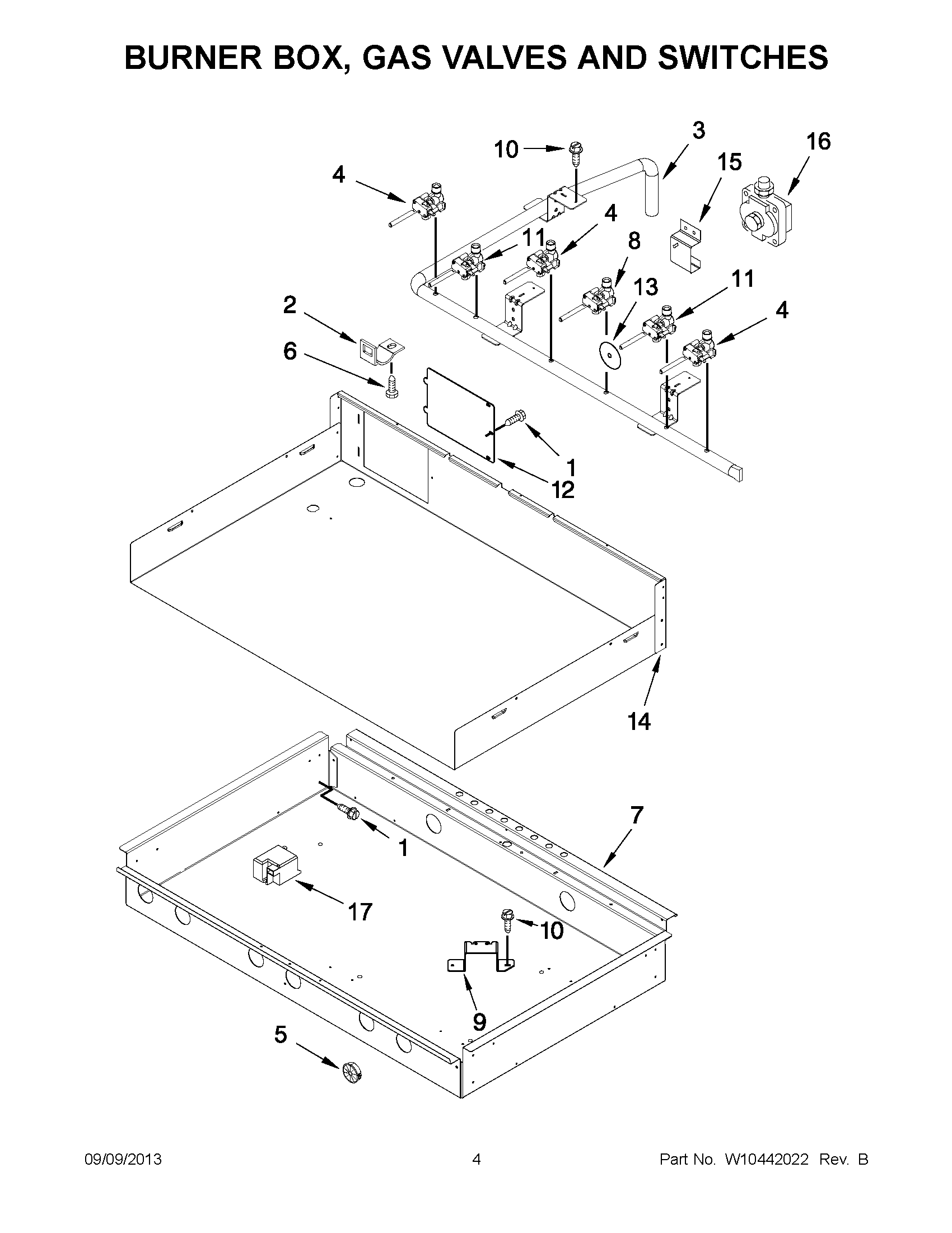

JGCP436WP01 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NITUBE, BACK
NITUBE, FRT RT
NITUBE (CENTER FRONT)
NITUBE, FRT LFT
NILINER (NOT A SERVICEABLE PART)
NITUBING, GAS (RR)
2BRACKET, VALVE
3MAY W10115896
4VALVE, SINGLE LR,RF
5MAY W10189097
6SCREW, VALVE MTG
7BOX, BURNER
8VALVE, SIMMER
9BRACKET, BURNER
10MAY 7101P426- 60
11VALVE, GAS (LF)
12MAY W10115843
13MAY W10189177
14MAY W10189156
15BRACKET, MOUNTING ORIFICE
16REGULATOR,PRESSURE
17REIGNITOR
