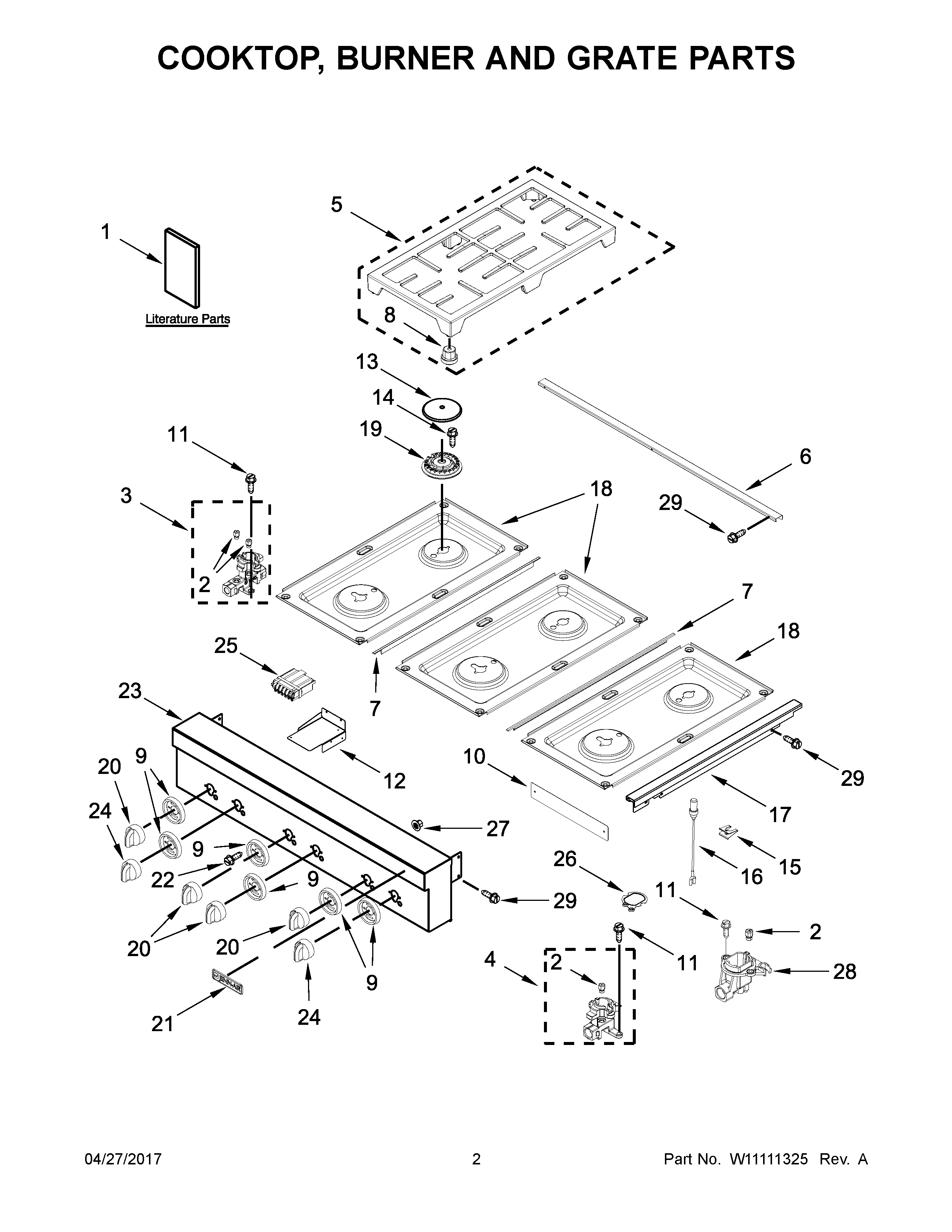

JGCP436WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY 4450800
NI	CORD, POWER
NI	MAY 8286921
NI	MAY W10183556
NI	MAY W10340850
NI	MAY W10283996
NI	MAY W10368807
NI	MAY W10631509
NI	MAY W10763504
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, HARNESS
1	MAY W10403307
1D	TIPS, SAFE COOKING (FRENCH)
1A	MAY W10849070
1B	MAY W10899358
1C	TIPS, SAFE COOKING (ENGLISH)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2A	ORIFICE (LF-LOW)
2C	ORIFICE (CR)
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W10276551
6	MAY W10269217
7	TRIM, T-STRIP
8	BUMPER, GRATE
9	MAY W10276494
10	MAY W10250433
11	SCREW (ALL BUT CENTER REAR)
11A	MAY 3196160
12	MAY W10846054
13	MAY W10256034
13A	MAY W10256032
13B	MAY W10364463
14	SCREW
15	SPRING, ELECTRODE
15A	SPRING, ELECTRODE (RR)
16	ELECTRODE, WIRE
17A	MAY W10226015
17	MAY W10226014
18A	COOKTOP (BLACK (RIGHT))
18B	COOKTOP (BLACK (CENTER))
18	MAY W10352969
19B	BURNER HEAD (RR)
19	MAY W10879806
19A	BURNER, HEAD (LR,RF)
20	KNOB, CONTROL (LR, RF) LR, RF
21	MAY W10159578
22	MAY 7101P500-60
23	MAY W10779891
24	KNOB, CONTROL LF
25	MODULE, SPARK
26	MAY 8286930
27	NUT, HEX
28	MAY W10883622
29	MAY 7101P426- 60
