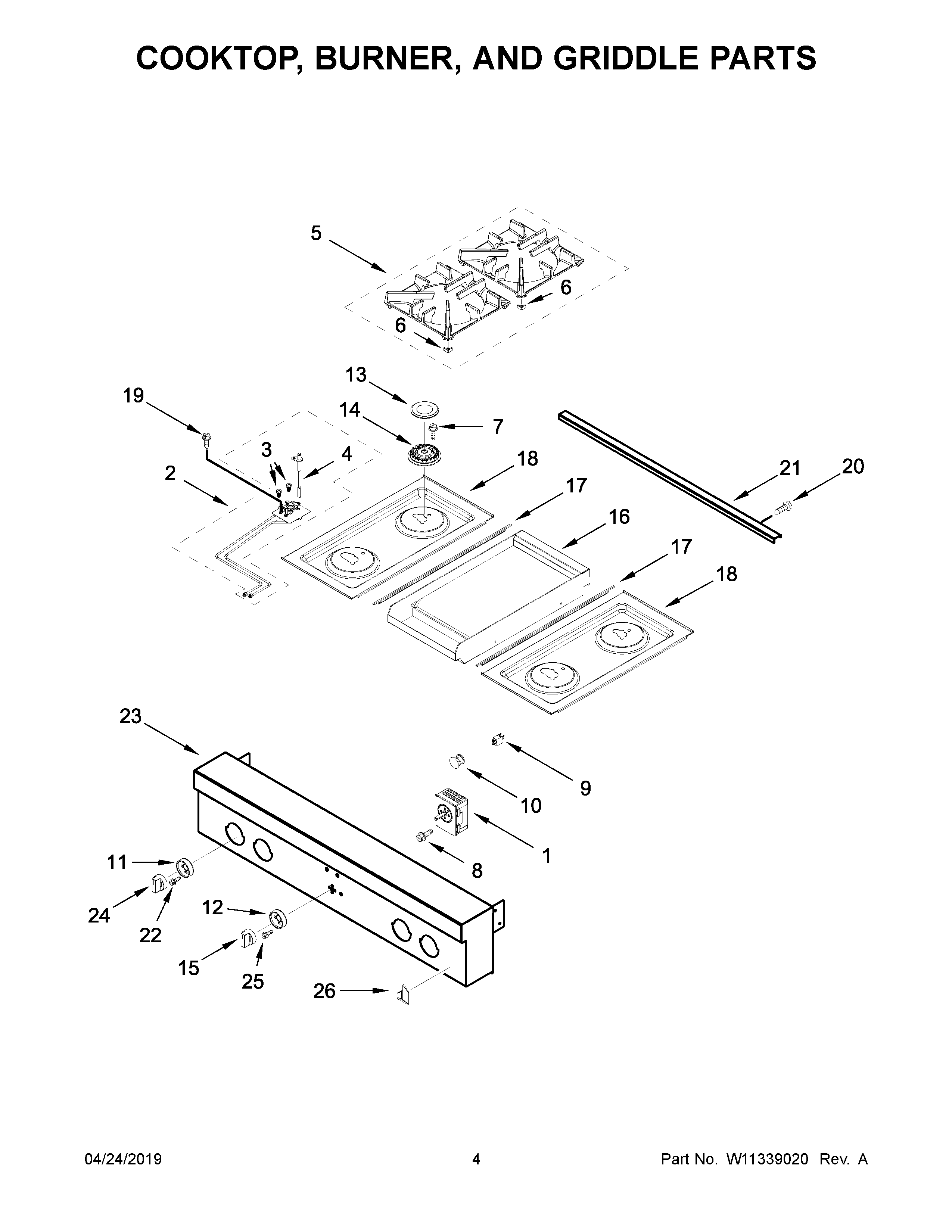

JGCP536HL00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1CONTROL, GRIDDLE
2BMAY W10892772
2AMAY W10892486
2MAY W10892771
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3AORIFICE, MAIN (7.2K) (RIGHT REAR)
3BORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3CORIFICE, SIMMER (2.0K) (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4AIGNITER (RIGHT REAR)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7SCREW
8SCREW
9LIGHT, INDICATOR HOUSING
10MAY W10294500
11BEZEL, COOKTOP
12BEZEL, GRIDDLE
13CAP, BURNER (BLACK (SET OF 4))
14ASPREADER, FLAME (LOW) (RIGHT REAR)
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15KNOB, GRIDDLE (STAINLESS)
16ASSEMBLY, GRIDDLE MODULE
17L-STRIP
18PANEL, COOKTOP (BLACK (LEFT))
18AMAY W10804371
19MAY 7101P426- 60
20SCREW (8BX3/8-NI)
21MAY W11355760
22MAY W10919387
23MAY W11253781
24KNOB, BURNER (STAINLESS)
25SCREW
26MAY W11238658
