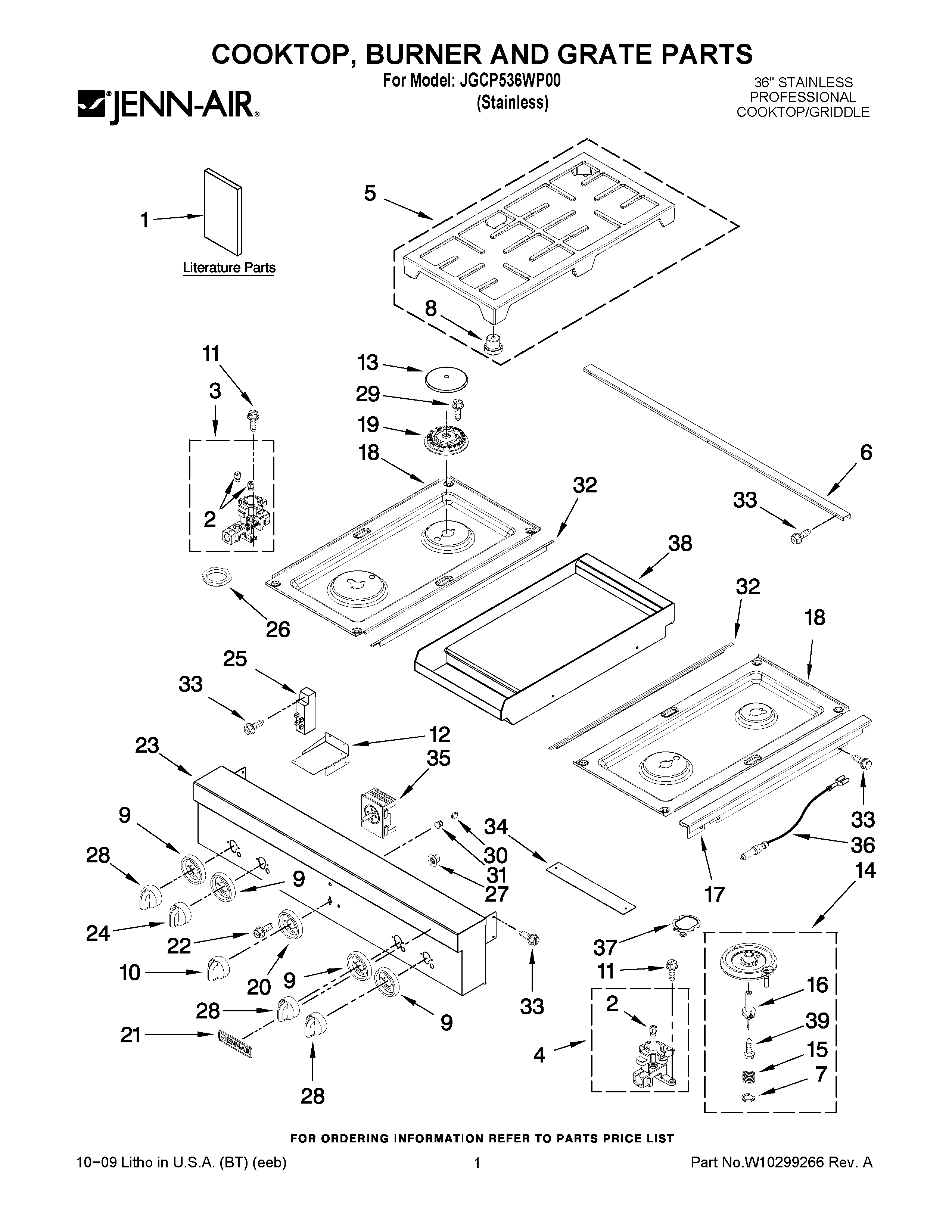

JGCP536WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10286834
1MAY W10221132
1MAY W10145395
1TIPS, SAFE COOKING (FRENCH)
2ORIFICE (LR & RF)
2ORIFICE (L)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (LR & RF)
4ORIFICE HOLDER (RR)
5MAY W10145532
6MAY W10269217
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10MAY W10145566
11MAY 8286921
12MAY W10137323
13CAP, BURNER (LR & RF)
13CAP, BURNER (LF)
13CAP, BURNER (RR)
14BASE, BURNER (LR & RF)
14BASE, BURNER (LF)
15SPRING, ELECTRODE (RR)
15SPRING, ELECTRODE (LF, LR & RF)
16ELECTRODE (LR & RF)
16ELECTRODE (LF)
17MAY W10226014
17MAY W10226015
18MAY W10282192
18MAY W10189104
19BURNER HEAD (LF)
19BURNER HEAD (LR & RF)
19BURNER HEAD (RR)
20MAY W10145453
21MAY W10159578
22MAY 7101P500-60
23MAY W10145536
24KNOB, CONTROL LF
25MAY 7431P038-60
26MAY W10115953
27NUT, HEX
28KNOB, CONTROL (LR, RF) LR, RF
29MAY 3196160
30LIGHT, INDICATOR HOUSING
31MAY W10294500
32MAY W10271525
33MAY 7101P426- 60
34MAY W10250433
35MAY W10116113
36ELECTRODE (CR)
37MAY 8286930
38MAY W10276498
39SCREW
