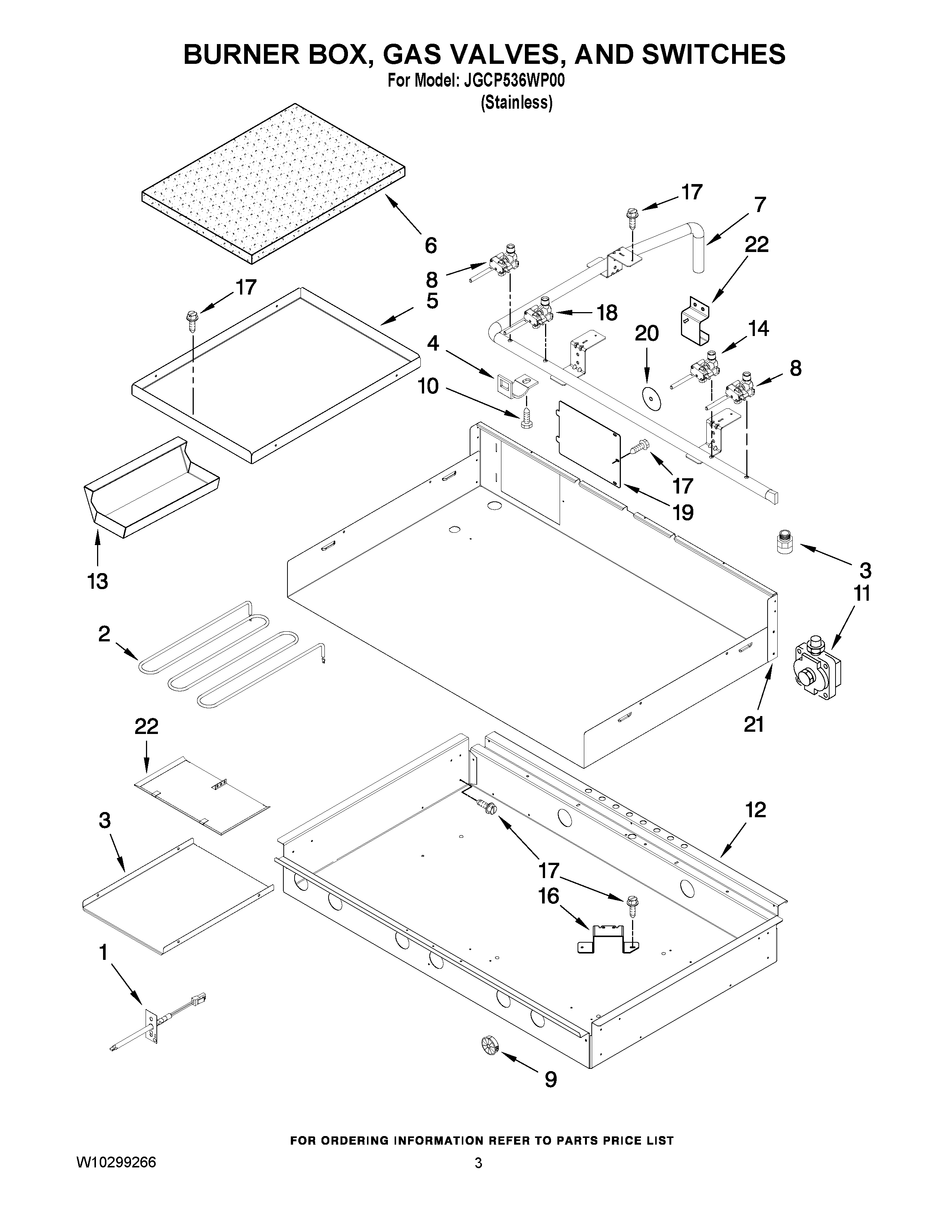

JGCP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGCP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGCP536WP00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LR)
NITUBING, GAS (RF)
NITUBING, GAS (LF)
NITUBING, GAS (RR)
1MAY W10131825
2ELEMENT, GRIDDLE
3MAY W10145620
4MAY W10189107
5MAY W10246074
6MAY W10145621
7MAY W10115985
8MAY W10250407
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR,PRESSURE
12MAY W10250425
13DRIP, TRAY GRIDDLE
14VALVE, SIMMER
16BRACKET, BURNER (RF,RR,CF,LR,LF)
16BRACKET, BURNER (CR)
17MAY 7101P426- 60
18MAY W10250410
19MAY W10115843
20MAY W10189177
21MAY W10189156
22BRACKET, MOUNTING ORIFICE
