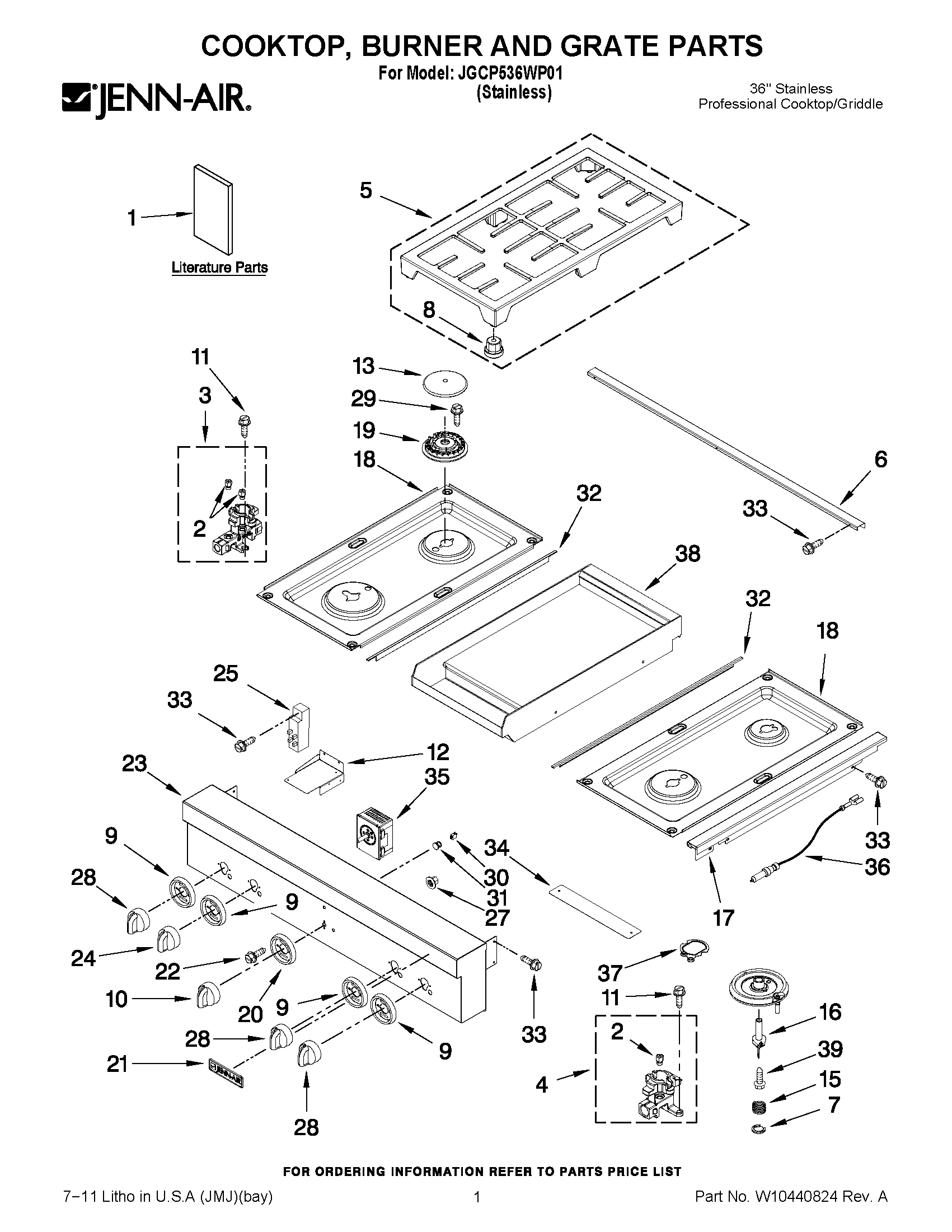

JGCP536WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10403307
1	MAY W10399390
1	MAY W10394706
1	TIPS, SAFE COOKING (FRENCH)
2	ORIFICE (LF-LOW)
2	ORIFICE (LF-HIGH)
2	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
3	ORIFICE HOLDER (DUAL-LF)
4	MAY W10365556
4	ORIFICE HOLDER (RR)
5	MAY W10276551
6	MAY W10269217
7	CLIP, ELECTRODE
8	PAD, GRATE
9	MAY W10276494
10	MAY W10145566
11	MAY 8286921
12	MAY W10367052
13	MAY W10364463
13	MAY W10256032
13	MAY W10256034
15	MAY W10256046
15	SPRING, ELECTRODE (RR)
16	ELECTRODE (LR, RF & RR)
17	MAY W10226014
17	MAY W10226015
18	MAY W10352968
18	MAY W10352969
19	BURNER, HEAD (LF)
19	BURNER, HEAD (LR,RF)
19	BURNER HEAD (RR)
20	MAY W10145453
21	MAY W10159578
22	MAY 7101P500-60
23	MAY W10145536
24	KNOB, CONTROL LF
25	MAY 7431P038-60
27	NUT, HEX
28	KNOB, CONTROL (LR, RF) LR, RF
29	MAY 3196160
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10250433
35	MAY W10116113
36	ELECTRODE (CR)
37	MAY 8286930
38	MAY W10276498
39	SCREW
