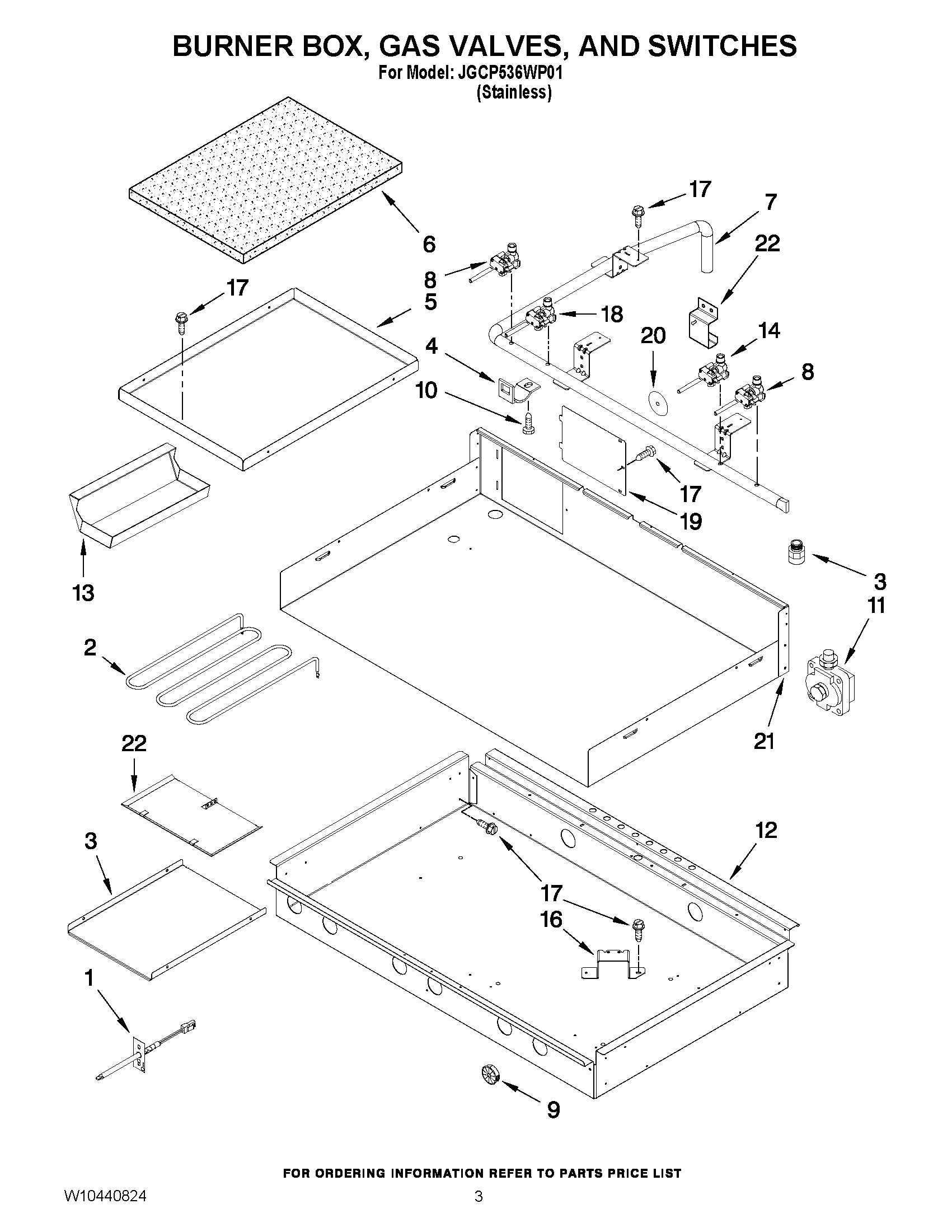

JGCP536WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGCP536WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGCP536WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBE (CENTER FRONT)
NITUBE, BACK
NITUBE, FRT RT
NITUBING, GAS (RR)
NITUBE, FRT LFT
1MAY W10319835
2ELEMENT, GRIDDLE
3MAY W10145620
5MAY W10246074
6MAY W10145621
7MAY W10115985
8VALVE, GAS (LF)
9MAY W10189097
10SCREW, VALVE MTG
11REGULATOR,PRESSURE
12BOX, BURNER
13DRIP, TRAY GRIDDLE
14VALVE, SIMMER
16MAY W10189107
17MAY 7101P426- 60
18VALVE, SINGLE LR,RF
19MAY W10115843
20MAY W10189177
21MAY W10189156
22BRACKET, MOUNTING ORIFICE
