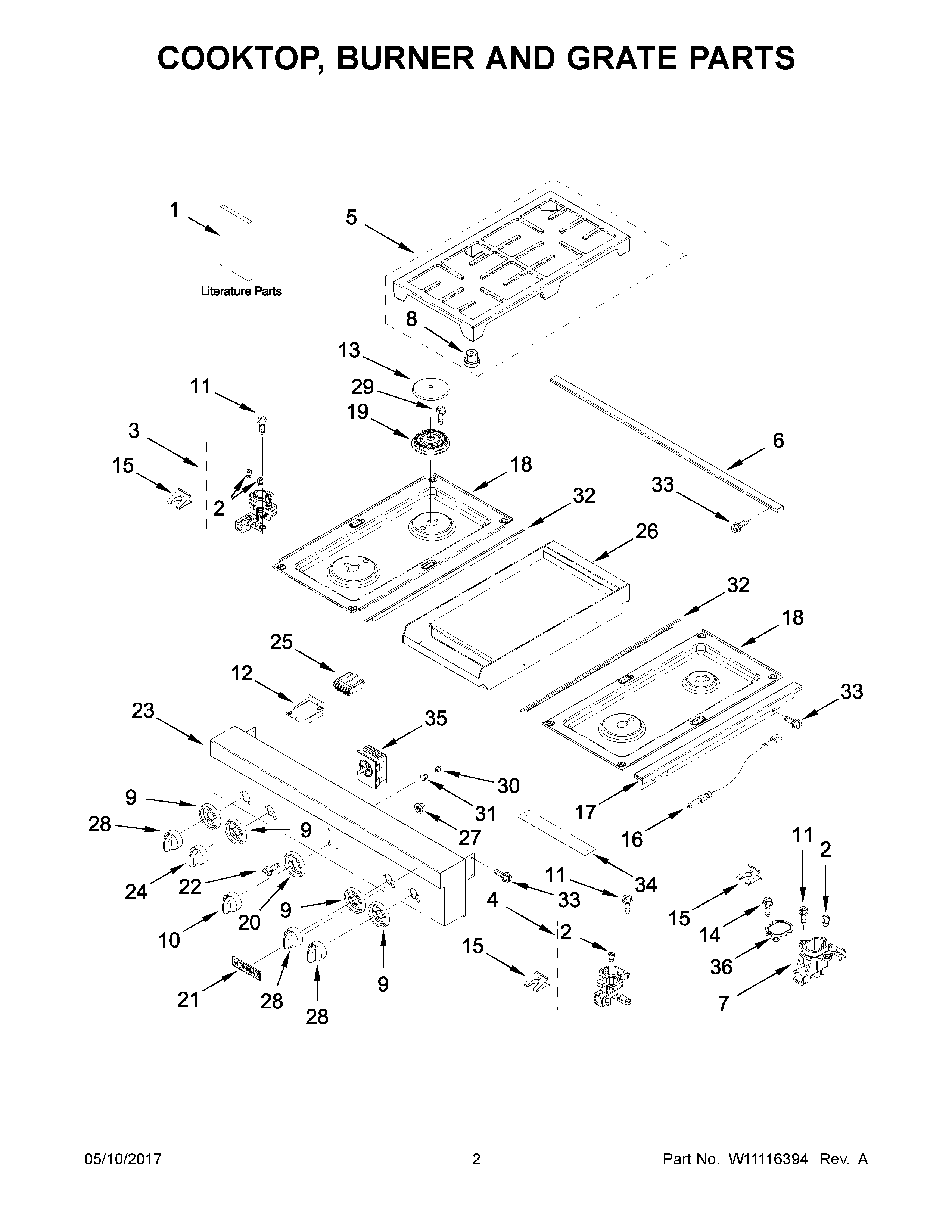

JGCP536WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	MAY W10340850
NI	MAY W10283996
NI	MAY W10116096
NI	MAY 4450800
NI	LP CONVERSION KIT
NI	HARNESS, SWITCH
NI	CLIP, HARNESS
NI	LINER (NOT A SERVICEABLE PART)
NI	CORD, POWER
NI	MAY W10763501
1	MAY W10403307
1C	TIPS, SAFE COOKING (ENGLISH)
1A	MAY W11090432
1D	TIPS, SAFE COOKING (FRENCH)
1B	MAY W11090452
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2A	ORIFICE (LF-LOW)
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2C	ORIFICE (CR)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W10276551
6	MAY W10269217
7	MAY W10883622
8	BUMPER, GRATE
9	MAY W10276494
10	MAY W10145566
11	SCREW (ALL BUT CENTER REAR)
11A	MAY 3196160
12	BRACKET, SPARK MODULE
13A	MAY W10256032
13B	MAY W10364463
13	MAY W10256034
14	MAY 8286921
15	SPRING, ELECTRODE
15A	SPRING, ELECTRODE (RR)
16	ELECTRODE, WIRE
17A	MAY W10226015
17	MAY W10226014
18	MAY W10352968
18	MAY W10352969
19	MAY W10879806
19A	BURNER, HEAD (LR,RF)
19B	BURNER HEAD (RR)
20	MAY W10145453
21	MAY W10159578
22	MAY 7101P500-60
23	MAY W10779890
24	KNOB, CONTROL LF
25	MODULE, SPARK
26	MODULE, GRIDDLE
27	NUT, HEX
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10250433
35	MAY W10116113
36	MAY 8286930
