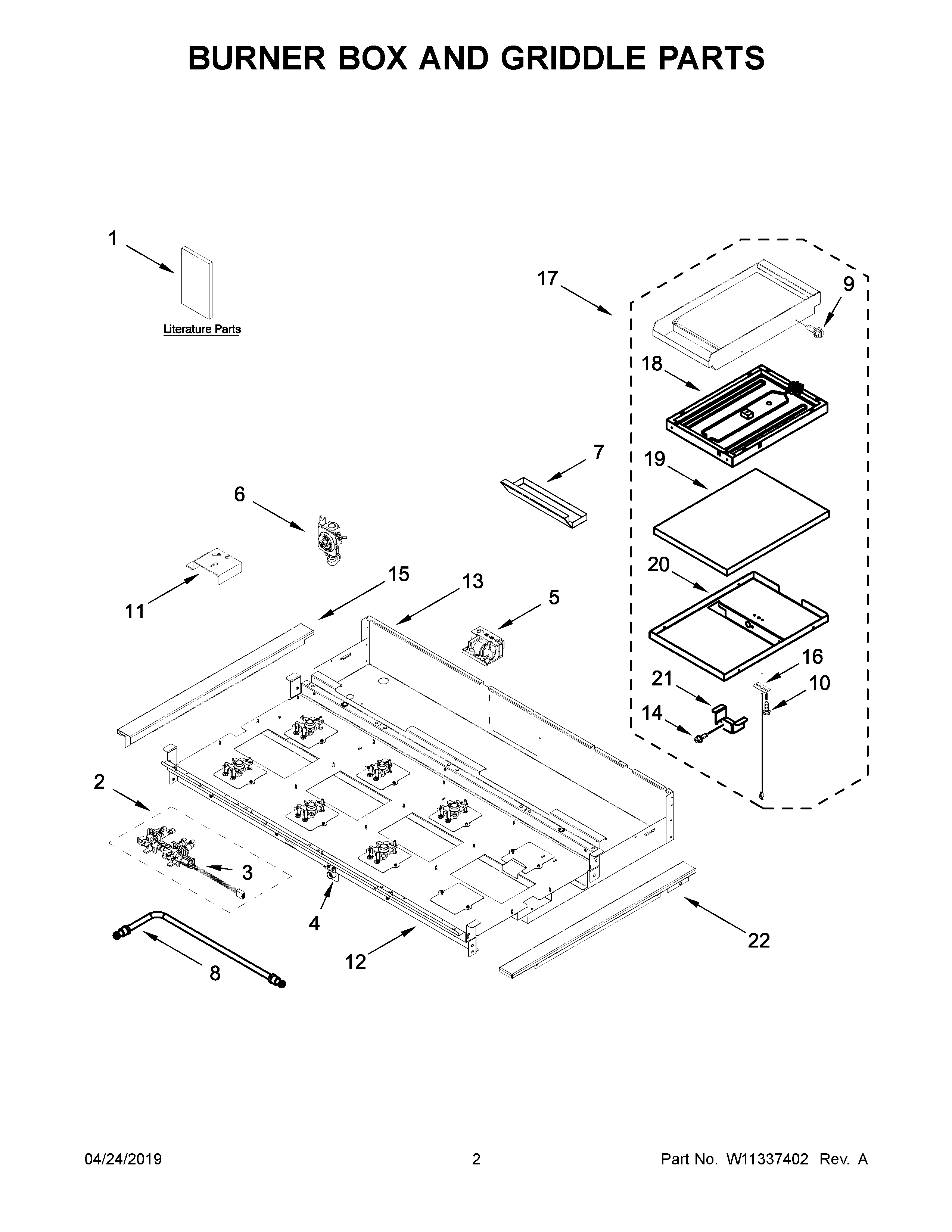

JGCP548HM00 02 – BURNER BOX AND GRIDDLE PARTS

Products

Position	Product
NI	CORD, POWER
NI	MAY 4450800
NI	HARNESS, COOKTOP
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, GRIDDLE
NI	KIT, LP CONVERSION
NI	MAY W11038934
1C	MAY W11266565
1A	MAY W11110989
1	MAY W11114328
1B	DIAGRAM, WIRING (COOKTOP)
2B	MAY W10893053
2	MAY W11183724
2A	MAY W10893062
3	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	MAY W11121199
5	MODULE, SPARK
6	REGULATOR, PRESSURE
7	DRIP, TRAY GRIDDLE
8B	MAY W10892450
8	MAY W10892347
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
9	Screw
10	MAY 3196160
11	BRACKET, MOUNTING ORIFICE
14	MAY 7101P426- 60
15	MAY W11047749
16	SENSOR, GRIDDLE
17	ASSEMBLY, GRIDDLE MODULE
18	ELEMENT, GRIDDLE
19	INSULATION, GRIDDLE
20	MAY W11330430
21	BRACKET, GRIDDLE-RTD
22	MAY W11047751
