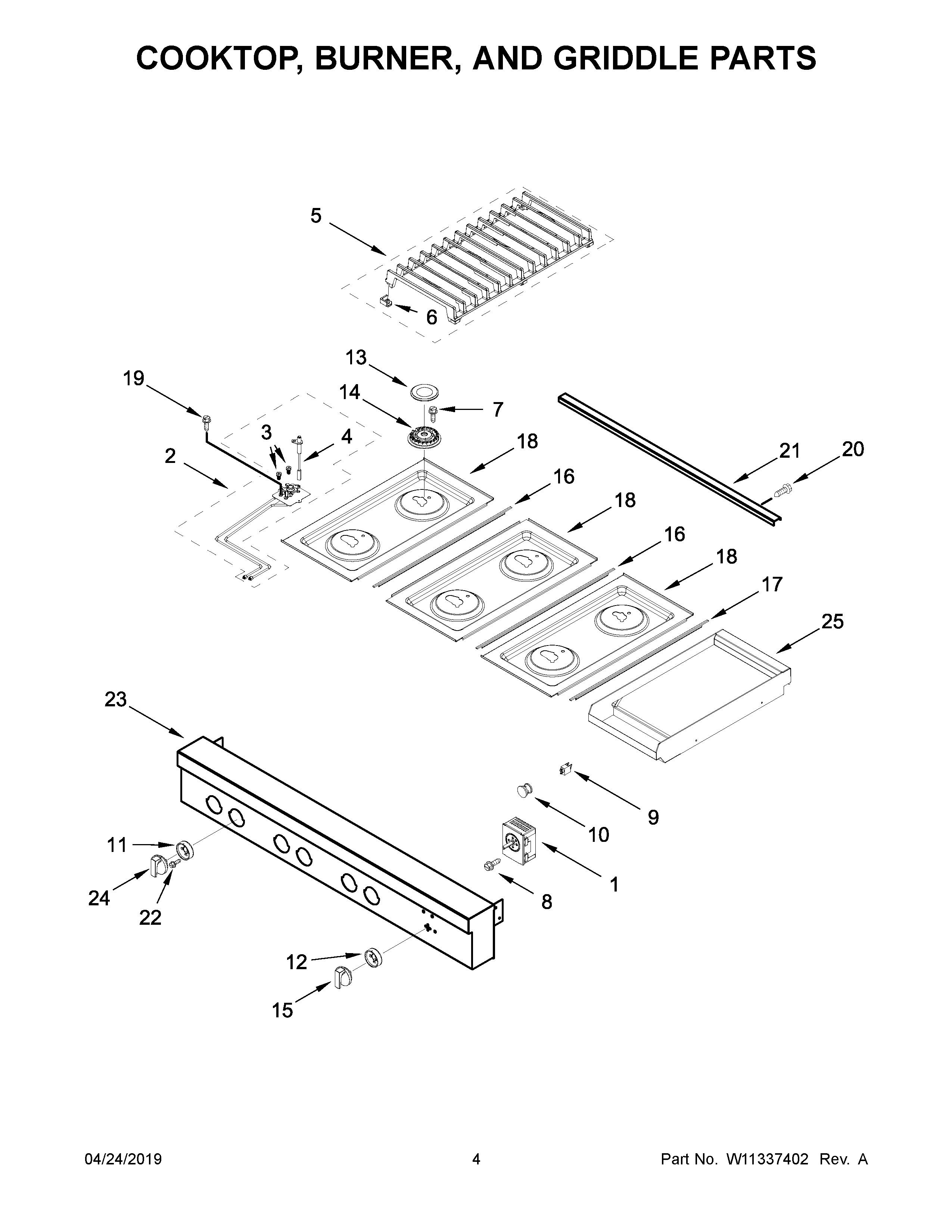

JGCP548HM00 03 – COOKTOP, BURNER, AND GRIDDLE PARTS

Products

PositionProduct
1CONTROL, GRIDDLE
2BMAY W10892772
2MAY W10892771
2AMAY W10892486
3CORIFICE, SIMMER (2.0K) (RIGHT REAR)
3AORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5AASSEMBLY, GRATE (BLACK) (LEFT CENTER)
5BASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
6BUMPER, GRATE
7SCREW
8SCREW
9LIGHT, INDICATOR HOUSING
10MAY W10294500
11BEZEL, COOKTOP
12BEZEL, GRIDDLE
13CAP, BURNER (BLACK (SET OF 6))
14ASPREADER, FLAME (LOW) (RIGHT REAR)
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15KNOB, GRIDDLE (STAINLESS)
16TRIM, T-STRIP
17L-STRIP
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
18PANEL, COOKTOP (BLACK) (LEFT)
18BPANEL, COOKTOP (BLACK) (RIGHT CENTER)
19MAY 7101P426- 60
20SCREW (8BX3/8-NI)
21MAY W11355761
22MAY W10919387
23MAY W11253795
24KNOB, BURNER (STAINLESS)
25ASSEMBLY, GRIDDLE MODULE
