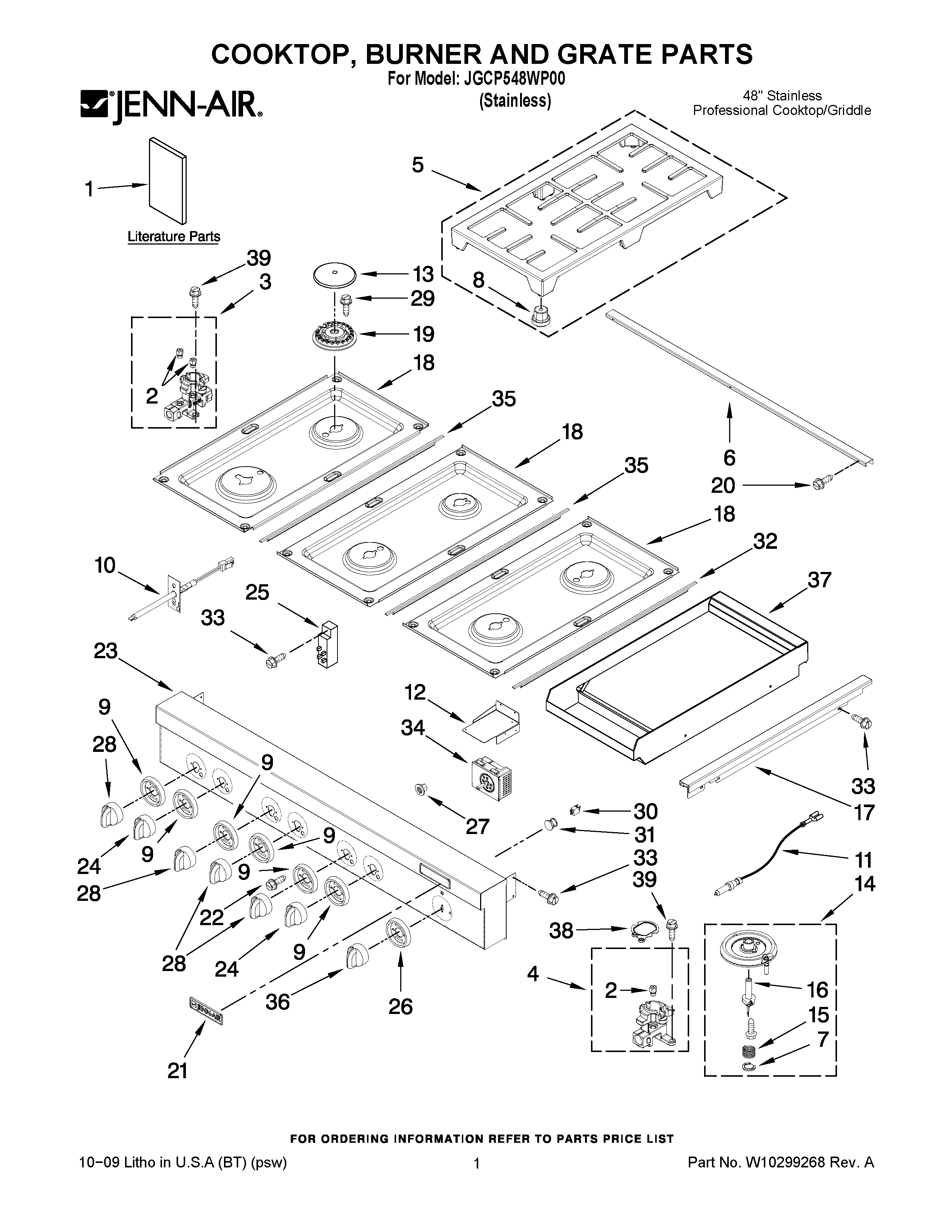

JGCP548WP00 01 – COOKTOP, BURNER AND GRATE PARTS

JGCP548WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGCP548WP00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1MAY W10286834
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10221132
1MAY W10145395
2ORIFICE (LR & RF)
2ORIFICE (L)
2ORIFICE (LF)
3ORIFICE HOLDER (LF)
4ORIFICE HOLDER (LR & RF)
4ORIFICE HOLDER (RR)
5MAY W10145532
6MAY W10269216
7CLIP, ELECTRODE
8PAD, GRATE
9MAY W10276494
10MAY W10131825
11ELECTRODE (CR)
12MAY W10137323
13CAP, BURNER (LF)
13CAP, BURNER (RR)
13CAP, BURNER (LR & RF)
14BASE, BURNER (LF)
14BASE, BURNER (LR & RF)
15SPRING, ELECTRODE (LF, LR & RF)
15SPRING, ELECTRODE (RR)
16ELECTRODE (LF)
16ELECTRODE (LR & RF)
17MAY W10226012
17MAY W10226013
18MAY W10189104
18MAY W10189098
18COOKTOP (CENTER)
19BURNER HEAD (LF)
19BURNER HEAD (LR & RF)
19BURNER HEAD (RR)
20SCREW (8BX3/8-NI)
21MAY W10159578
22MAY 7101P500-60
23MAY W10145537
24KNOB, CONTROL LF
25MAY 7431P039-60
26MAY W10145453
27NUT, HEX
28KNOB, CONTROL (LR, RF) LR, RF
29SCREW
30LIGHT, INDICATOR HOUSING
31MAY W10294500
32MAY W10271525
34MAY W10116113
35TRIM, T-STRIP
36MAY W10145566
37MAY W10276498
38MAY 8286930
39MAY 8286921
39MAY 7101P426- 60
