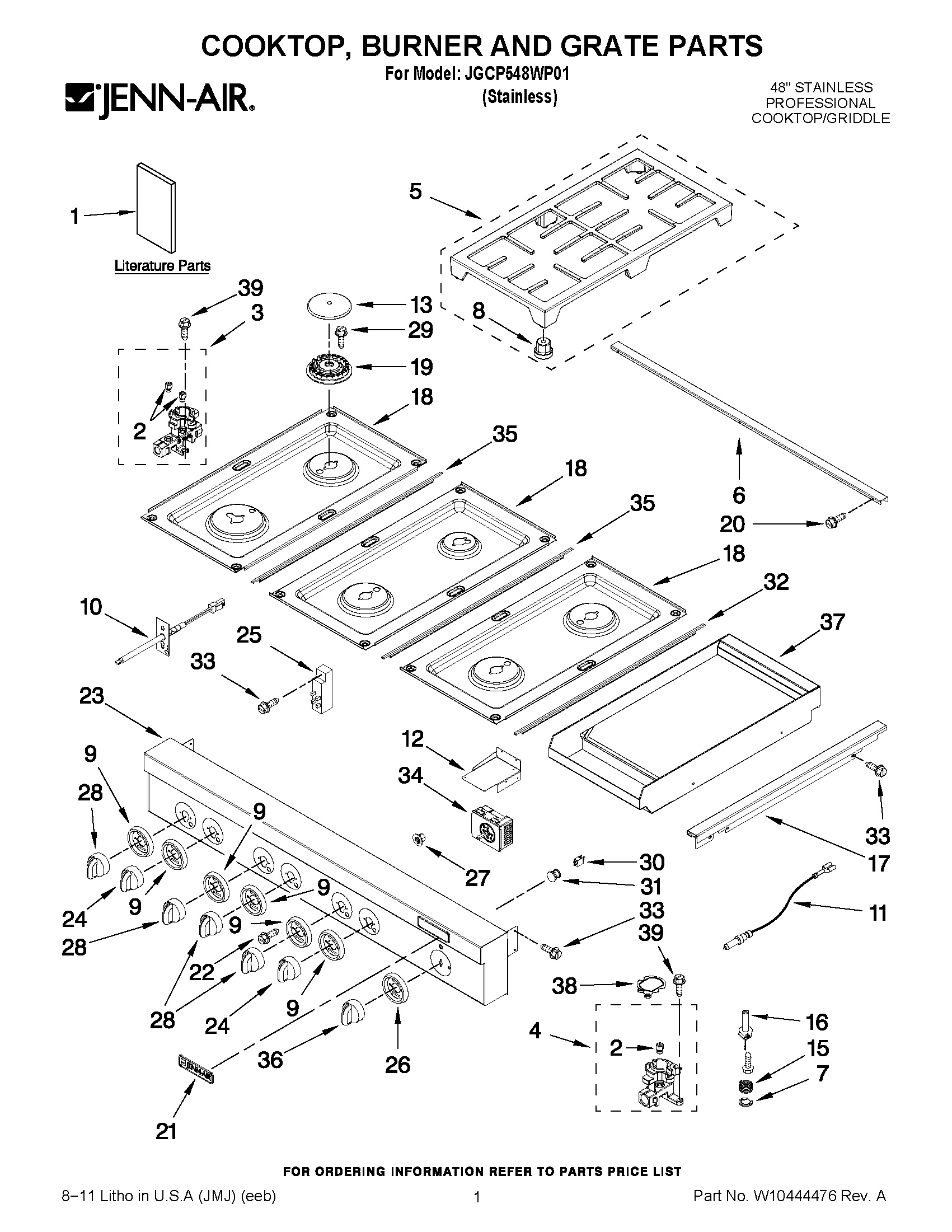

JGCP548WP01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	MAY W10399390
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10394706
1	MAY W10403307
2	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
2	ORIFICE (LF-HIGH)
2	ORIFICE (LF-LOW)
3	ORIFICE HOLDER (DUAL-LF)
4	ORIFICE HOLDER (RR)
4	MAY W10364556
5	MAY W10276551
6	MAY W10269216
7	CLIP, ELECTRODE
8	PAD, GRATE
9	MAY W10276494
10	MAY W10319835
12	MAY W10398550
13	MAY W10364463
13	MAY W10256034
13	MAY W10256032
15	SPRING, ELECTRODE (RR)
15	MAY W10256046
16	ELECTRODE (LR, RF & RR)
16	ELECTRODE (CR)
17	MAY W10226012
17	MAY W10226013
18	MAY W10352969
18	MAY W10352963
18	COOKTOP (BLACK (CENTER))
19	BURNER, HEAD (LF)
19	BURNER, HEAD (LR,RF)
19	BURNER HEAD (RR)
20	SCREW (8BX3/8-NI)
21	MAY W10159578
22	MAY 7101P500-60
23	MAY W10145537
24	KNOB, CONTROL LF
25	MAY 7431P038-60
26	MAY W10145453
27	NUT, HEX
28	KNOB, CONTROL (LR, RF) LR, RF
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
34	MAY W10116113
35	TRIM, T-STRIP
36	MAY W10145566
37	MAY W10276498
38	MAY 8286930
39	MAY 8286921
39	MAY 7101P426- 60
