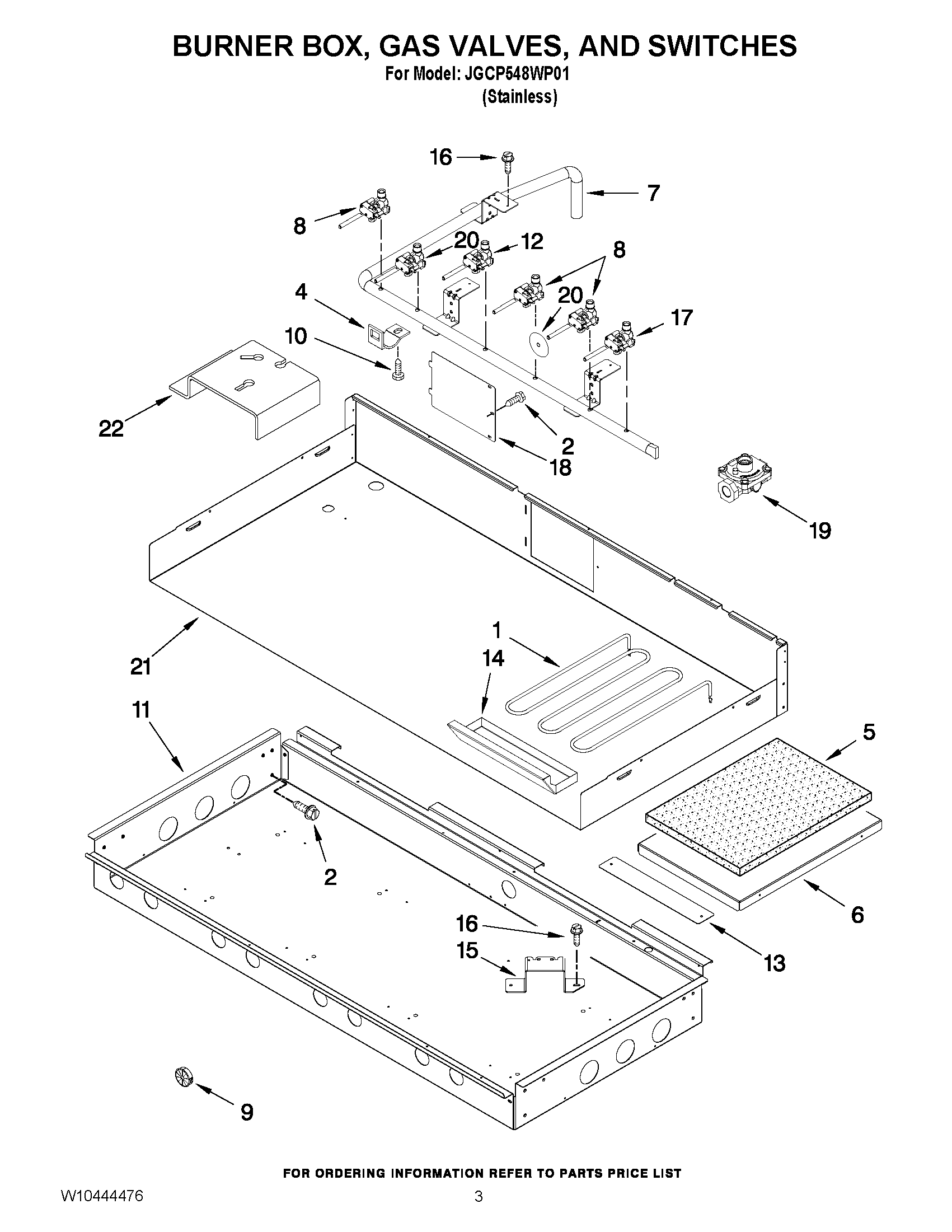

JGCP548WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

JGCP548WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

JGCP548WP01 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBE, FRT LFT
NITUBING, GAS (RR)
NITUBE (CENTER FRONT)
NITUBE, FRT RT
NITUBE, BACK
1ELEMENT, GRIDDLE
2MAY W10145620
4MAY W10189107
5MAY W10145621
6MAY W10246074
7MAY W10115896
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10371517
12VALVE, SIMMER
13MAY W10250433
14DRIP, TRAY GRIDDLE
15BRACKET, BURNER
16MAY 4450800
17VALVE, GAS (LF)
18MAY W10115843
19REGULATOR,PRESSURE
20MAY W10189177
21MAY W10189155
22BRACKET, MOUNTING ORIFICE
