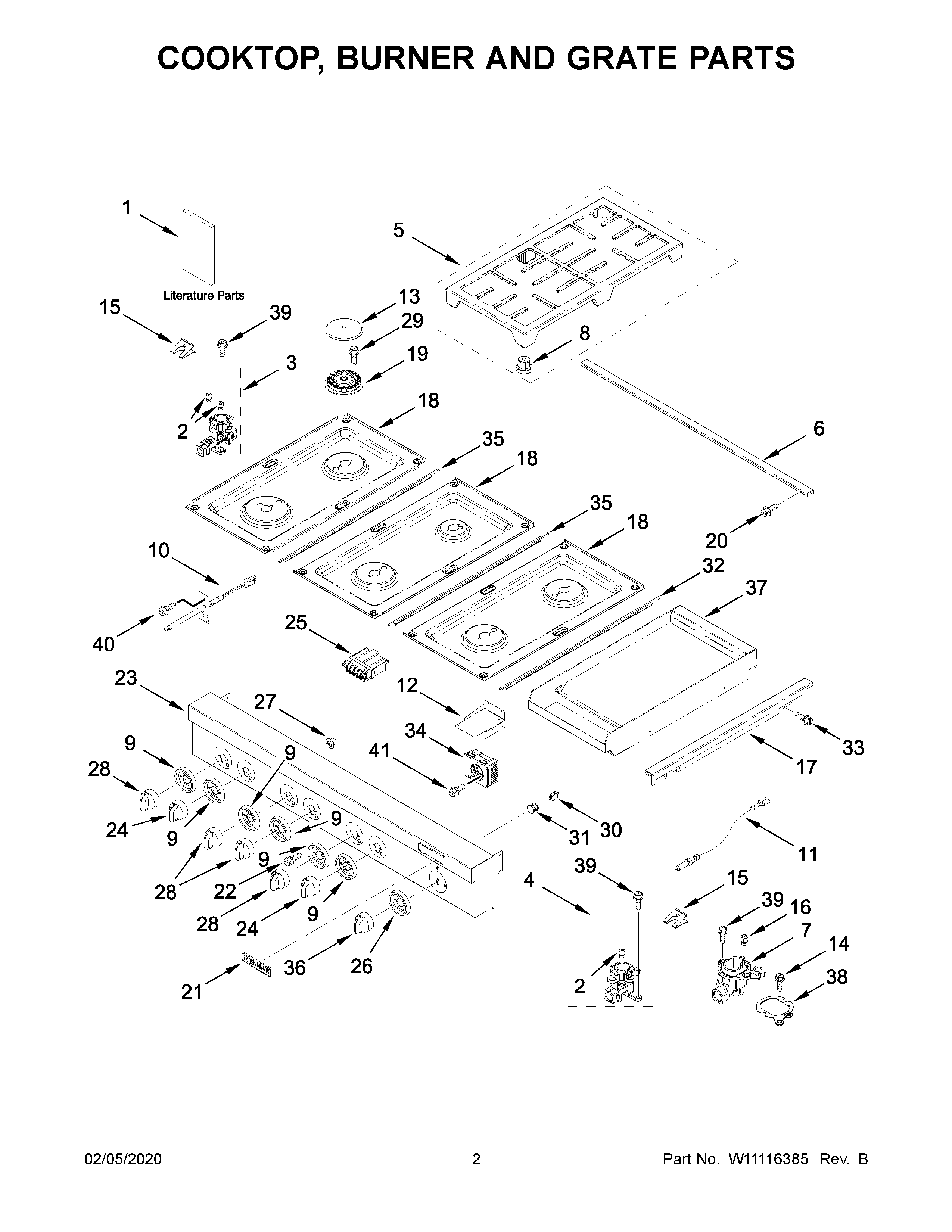

JGCP548WP02 02 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CORD, POWER
NI	MAY W10183556
NI	BRACKET, VALVE
NI	MAY 4450800
NI	LP CONVERSION KIT
NI	MAY W10399615
NI	MAY W10340850
NI	CLIP, HARNESS
NI	MAY W10283996
NI	MAY W10763503
NI	MAY W10116096
1B	MAY W11090452
1	MAY W10403307
1A	MAY W11090432
2A	ORIFICE (LF-LOW)
2	ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
2B	ORIFICE (15K) (LEFT REAR, CENTER FRONT, RIGHT REAR)
3	ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
4	ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
5	MAY W11241666
6	MAY W10269216
7	MAY W10883622
8	BUMPER, GRATE
9	MAY W10276494
10	MAY W10319835
11	ELECTRODE, BURNER
12	MAY W10846054
13B	MAY W10364463
13	MAY W10256034
13A	MAY W10256032
14	MAY 3196160
15	SPRING, ELECTRODE
15A	SPRING, ELECTRODE (RR)
16	ORIFICE (CR)
17	MAY W10226012
17A	MAY W10226013
18B	MAY W10352963
18A	COOKTOP (BLACK (CENTER))
18	MAY W10352969
19B	BURNER HEAD (RR)
19	MAY W10879806
19A	BURNER, HEAD (LR,RF)
20	SCREW (8BX3/8-NI)
21	MAY W10159578
22	SCREW
23	ASSEMBLY, CONSOLE
24	KNOB, CONTROL LF
25	MODULE, SPARK
26	MAY W10145453
27	NUT, HEX
28	KNOB, CONTROL (LR, RF) LR, RF
29	SCREW
30	LIGHT, INDICATOR HOUSING
31	MAY W10294500
32	L-STRIP
33	MAY 7101P426- 60
34	MAY W10116113
35	TRIM, T-STRIP
36	MAY W10145566
37	MODULE, GRIDDLE
38	MAY 8286930
39A	MAY 8286921
39	SCREW (ALL BUT CENTER REAR)
40	MAY 7101P074-60
41	SCREW
