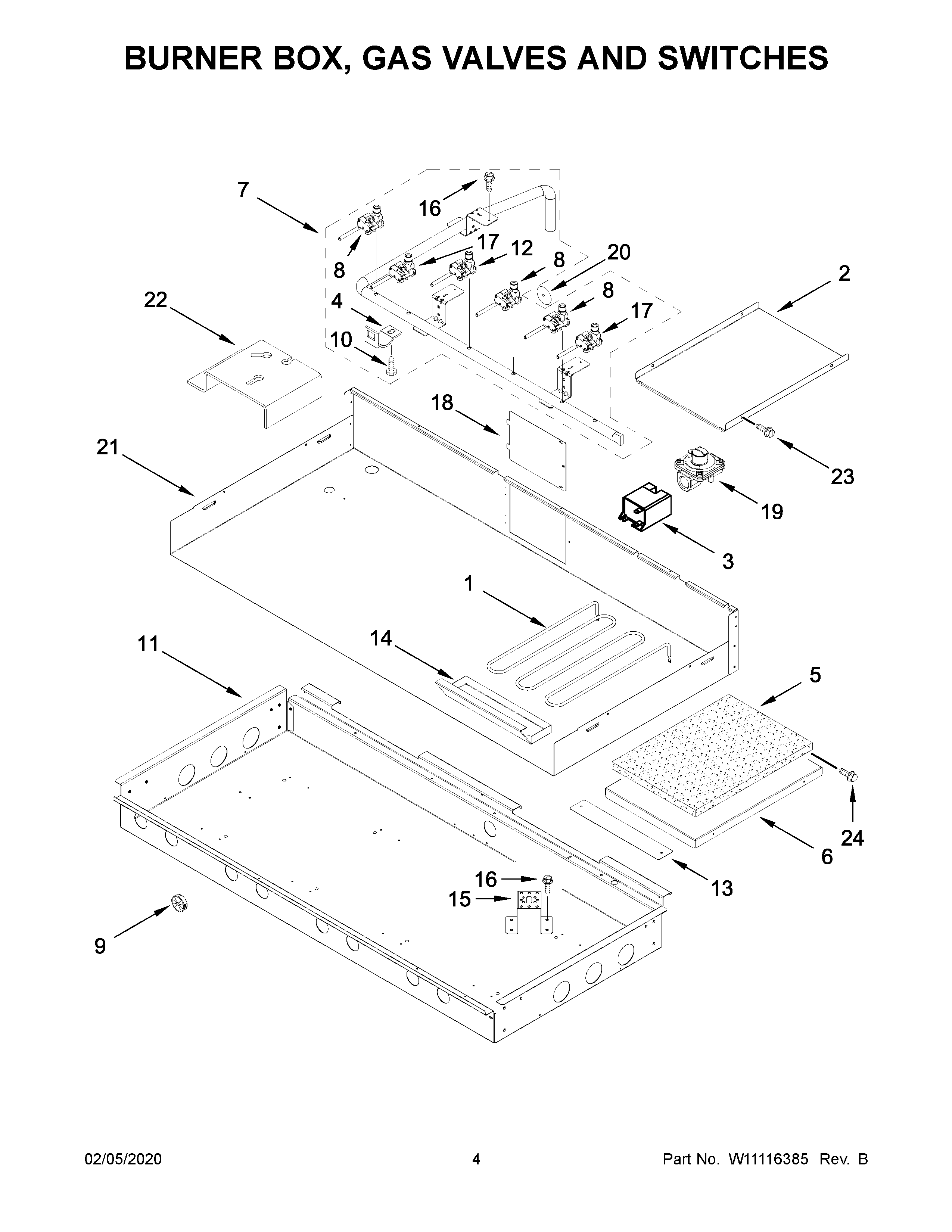

JGCP548WP02 03 – BURNER BOX, GAS VALVES AND SWITCHES

Products

PositionProduct
NITUBE (CENTER FRONT)
NITUBE, FRT RT
NITUBE, BACK
NITUBE, FRT LFT
NITUBING, GAS (RR)
NILINER (NOT A SERVICEABLE PART)
1ELEMENT, GRIDDLE
2MAY W10145620
3REIGNITOR
4BRACKET, VALVE
5MAY W10145621
6MAY W10246074
7ASSEMBLY, MANIFOLD
8VALVE, SINGLE LR,RF
9MAY W10189097
10SCREW, VALVE MTG
11MAY W10371517
12VALVE, SIMMER
13MAY W10250433
14DRIP, TRAY GRIDDLE
15BRACKET, BURNER
16MAY 4450800
17VALVE, GAS (LF)
18MAY W10115843
19REGULATOR, PRESSURE
20MAY W10189177
21COVER, BURNER BOX
22BRACKET, MOUNTING ORIFICE
23MAY 7101P434-60
24Screw
