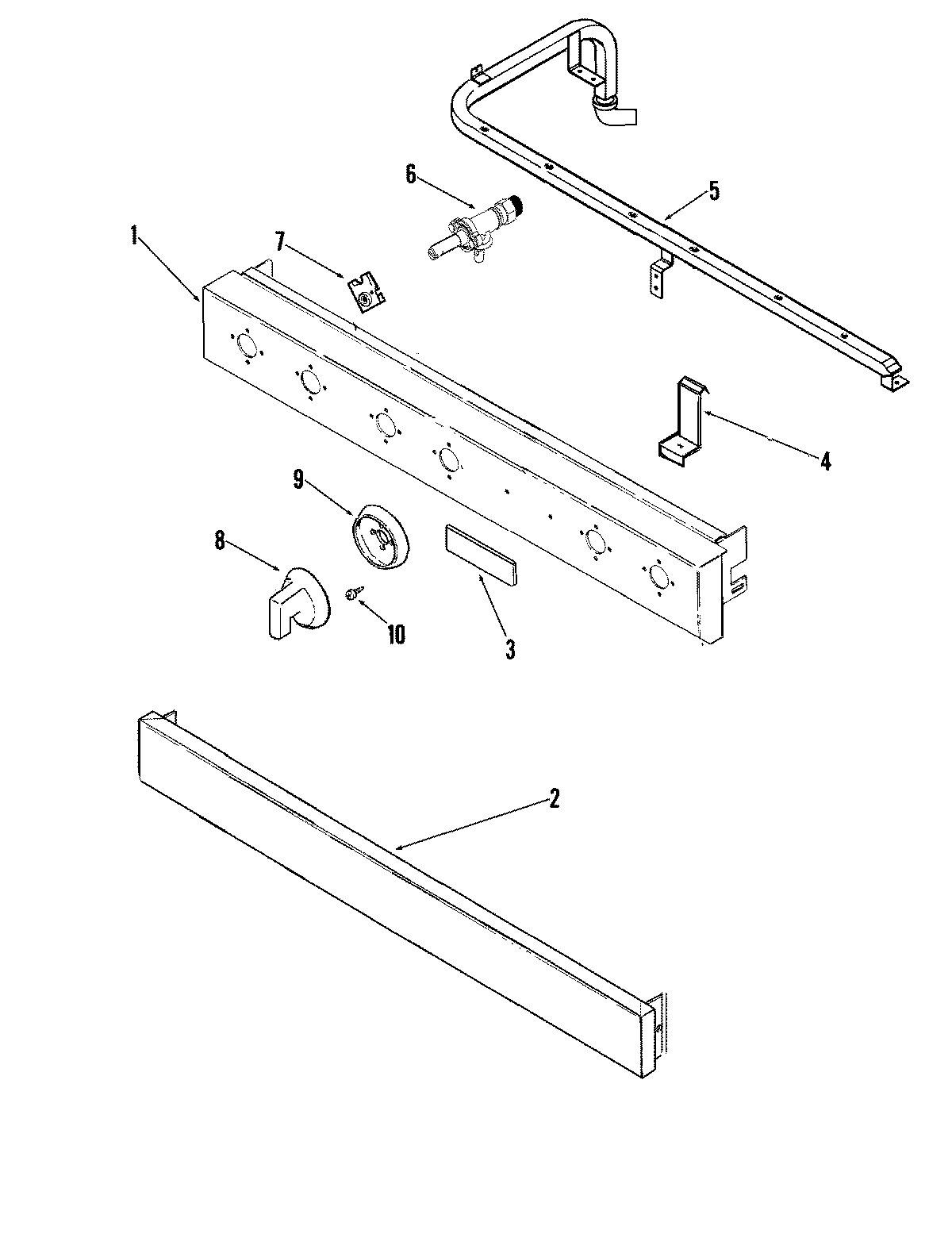

JGCP636ADP 02 – CONTROL PANEL/MANIFOLD PIPE

JGCP636ADP 02 – CONTROL PANEL/MANIFOLD PIPE

Written by

in

JGCP636ADP 02 – CONTROL PANEL/MANIFOLD PIPE

Products

PositionProduct
1SCREW
1MAY 74009625
1MAY 74003860
2MAY 74009629
37103P166-60 Whirlpool Nut
3MAY 74006889
4MAY 74007008
5MAY 74009784
5WP90767 Whirlpool Screw
6MAY 74009786
6MAY 74009788
6MAY 74009427
6MAY 74009787
7MAY 74009789
8KNOB
9MAY 74009631
