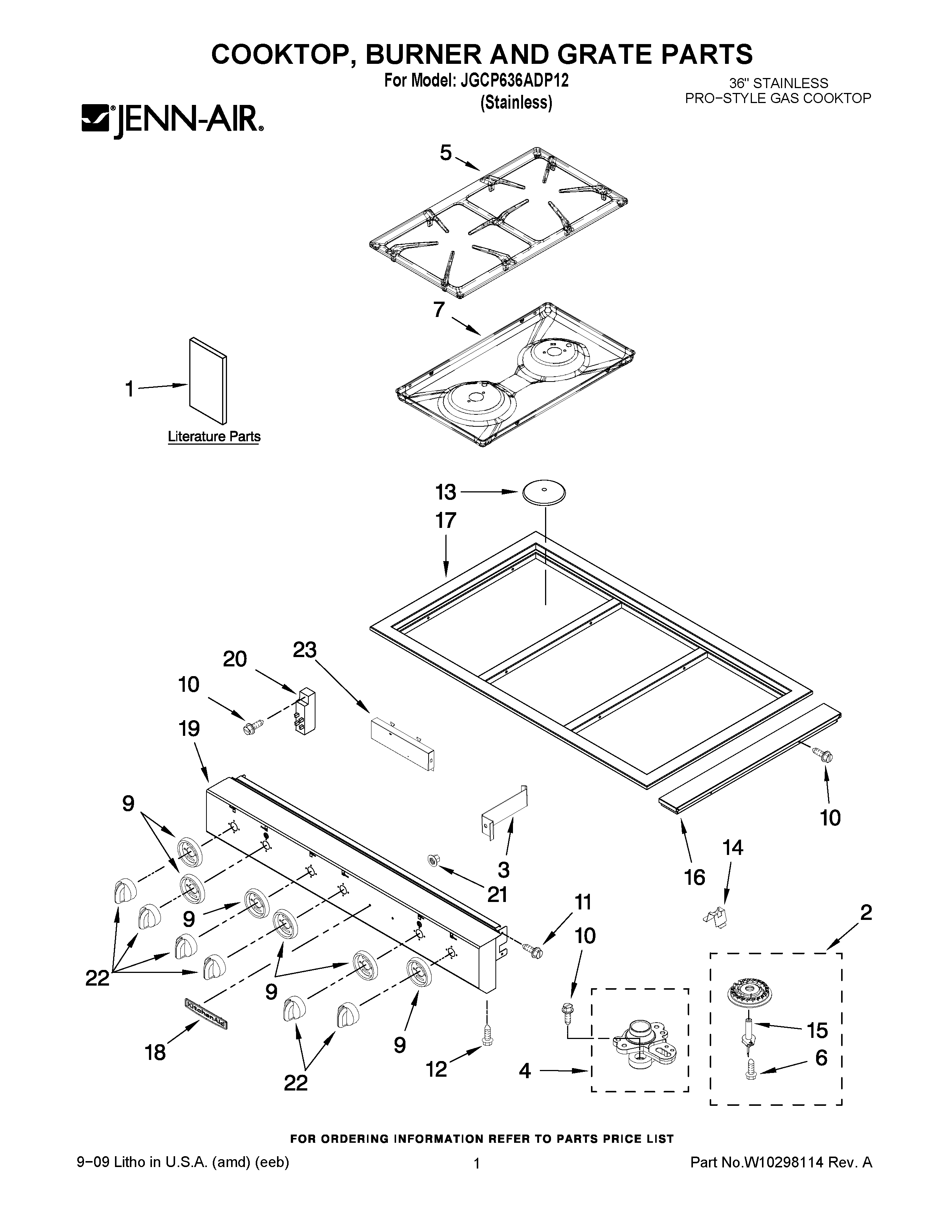

JGCP636ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

JGCP636ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

JGCP636ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY 8101P657-60
1MAY 8112P342-60
1MAY 8119P071-60
1MAY 8101P547-60
1TIPS, SAFE COOKING (FRENCH)
2HEAD, BURNER (LF & RR)
2HEAD, BURNER (CTR)
2HEAD, BURNER (LR & RF)
3BRACKET, CONTROL PANEL
4MAY 7527P046-60
4MAY 7527P043-60
4MAY 7527P047-60
4MAY 7527P048-60
4MAY 7527P044-60
4MAY 7527P045-60
5MAY 7518P473-60
6SCREW
7DRIP, BOWL (MEDIUM)
7DRIP, BOWL (LARGE)
7MAY 3424F032-09
9MAY 7740P150-60
10MAY 7101P426- 60
11SCREW
12SCREW
13CAP, BURNER (LF & RR)
13CAP, BURNER (CTR)
13CAP, BURNER (LR & RF)
14MAY 3801F842-51
15IGNITOR
16MAY 3608F133-50
17MAY 7746P107-60
18MAY 7719P087-60
19MAY 7720P494-60
20MAY 7431P039-60
21NUT, HEX
22MAY W10175692
23MAY 4005F547-51
