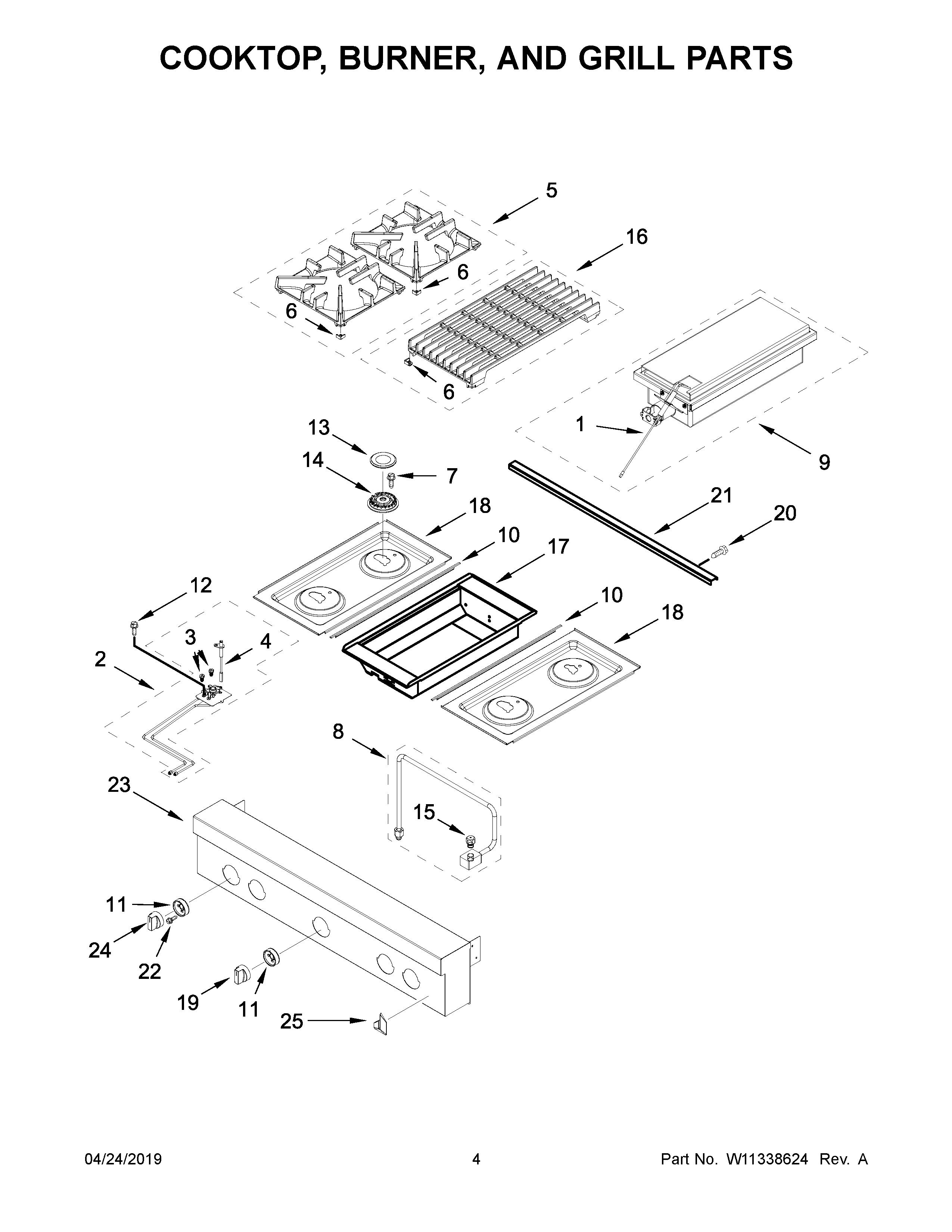

JGCP636HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	MAY W11174598
2	MAY W10892771
2A	MAY W10892486
2B	MAY W10892772
3B	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3C	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3A	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	MAY W11197930
9	MAY W11120976
10	L-STRIP
11	BEZEL, COOKTOP
12	MAY 7101P426- 60
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	MAY W10892423
16	MAY W11179894
17	MAY W11174429
18A	MAY W10804371
18	PANEL, COOKTOP (BLACK (LEFT))
19	MAY W10894925
20	SCREW (8BX3/8-NI)
21	MAY W11355760
22	MAY W10919387
23	MAY W11253780
24	KNOB, BURNER (STAINLESS)
25	MAY W11238658
