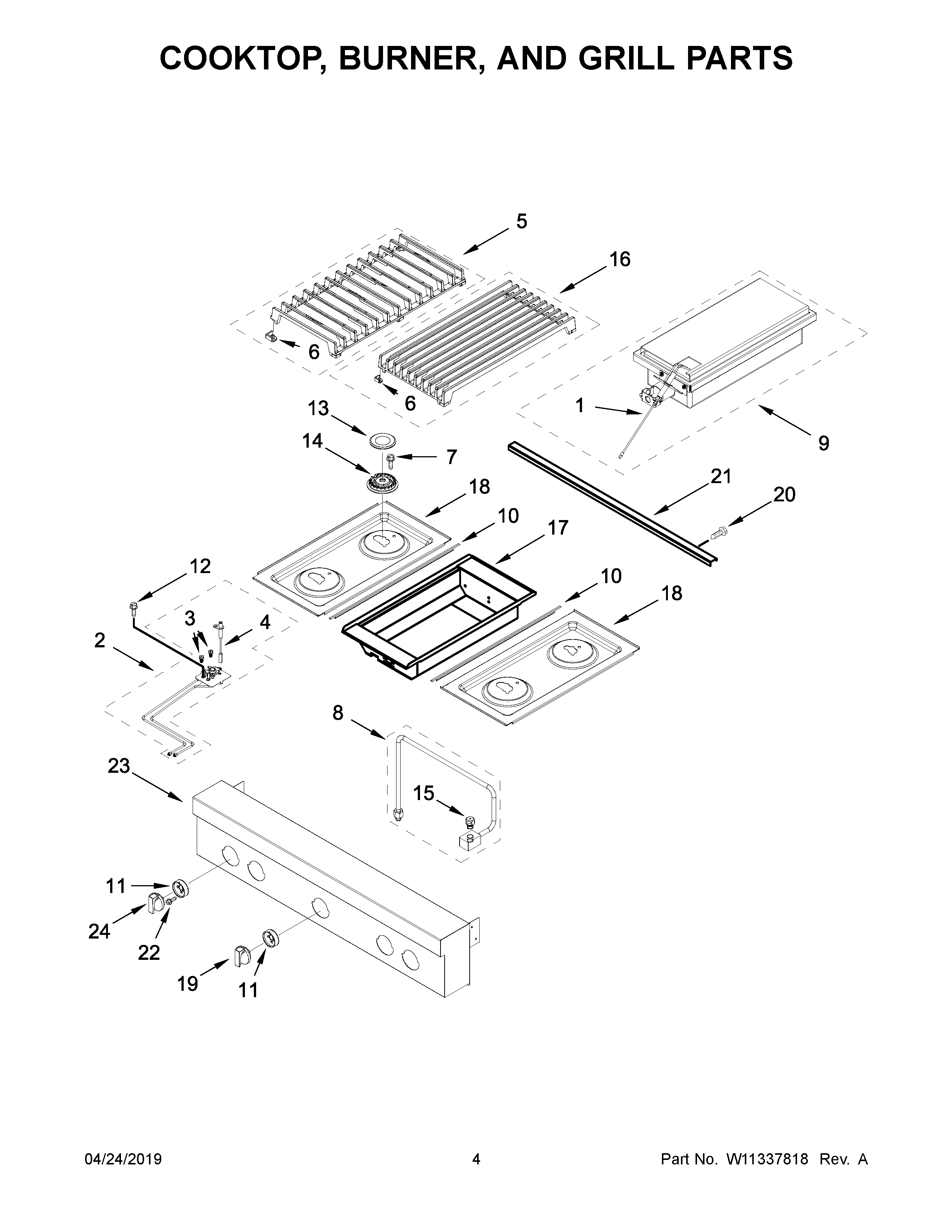

JGCP636HM00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	MAY W11174598
2	MAY W10892771
2A	MAY W10892486
2B	MAY W10892772
3C	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3B	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (7.2K) (RIGHT REAR)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
6	BUMPER, GRATE
7	SCREW
8	MAY W11197930
9	MAY W11120976
10	L-STRIP
11	BEZEL, COOKTOP
12	MAY 7101P426- 60
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	MAY W10892423
16	MAY W11172682
17	MAY W11174429
18A	PANEL, COOKTOP (BLACK) (RIGHT)
18	PANEL, COOKTOP (BLACK) (LEFT)
19	MAY W10894926
20	SCREW (8BX3/8-NI)
21	MAY W11355760
22	MAY W10919387
23	MAY W11253796
24	KNOB, BURNER (STAINLESS)
