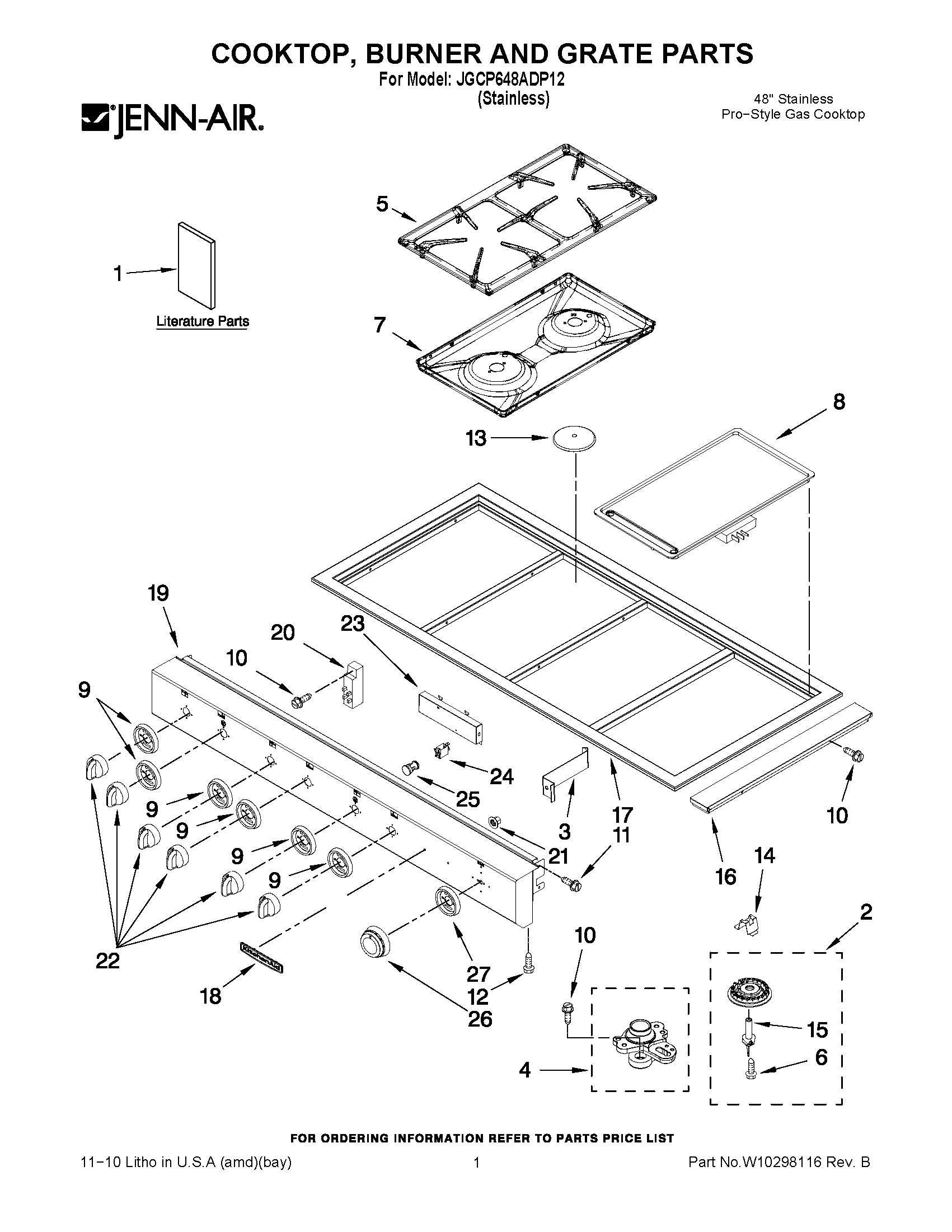

JGCP648ADP12 01 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY 8119P070-60
1	MAY 8101P547-60
1	MAY 8101P657-60
1	MAY 8112P342-60
2	HEAD, BURNER (CTR)
2	HEAD, BURNER (LR & RF)
2	HEAD, BURNER (LF & RR)
3	BRACKET, CONTROL PANEL
4	MAY 7527P049-60
4	MAY 7527P050-60
4	ORIFICE HOLDER (LR & CR)
4	MAY 7527P052-60
5	GRATE, BURNER
6	SCREW
7	DRIP, BOWL (MEDIUM)
7	DRIP, BOWL (LARGE)
7	MAY 3424F032-09
8	MAY 7406P160-60
9	MAY 7740P150-60
10	MAY 7101P426- 60
11	SCREW
12	SCREW
13	CAP, BURNER (LF & RR)
13	CAP, BURNER (CTR)
13	CAP, BURNER (LR & RF)
14	MAY 3801F842-51
15	IGNITOR
16	TRIM, CONTROL PANEL
17	MAY 7746P067-60
18	MAY 7719P087-60
19	MAY 7720P493-60
20	MAY 7431P039-60
21	NUT, HEX
22	MAY W10175692
23	MAY 4005F547-51
24	MAY 7407P100-60
25	WP7730P011-60 Whirlpool Indicator Lens
26	MAY 7737P349-60
27	MAY 7740P146-60
